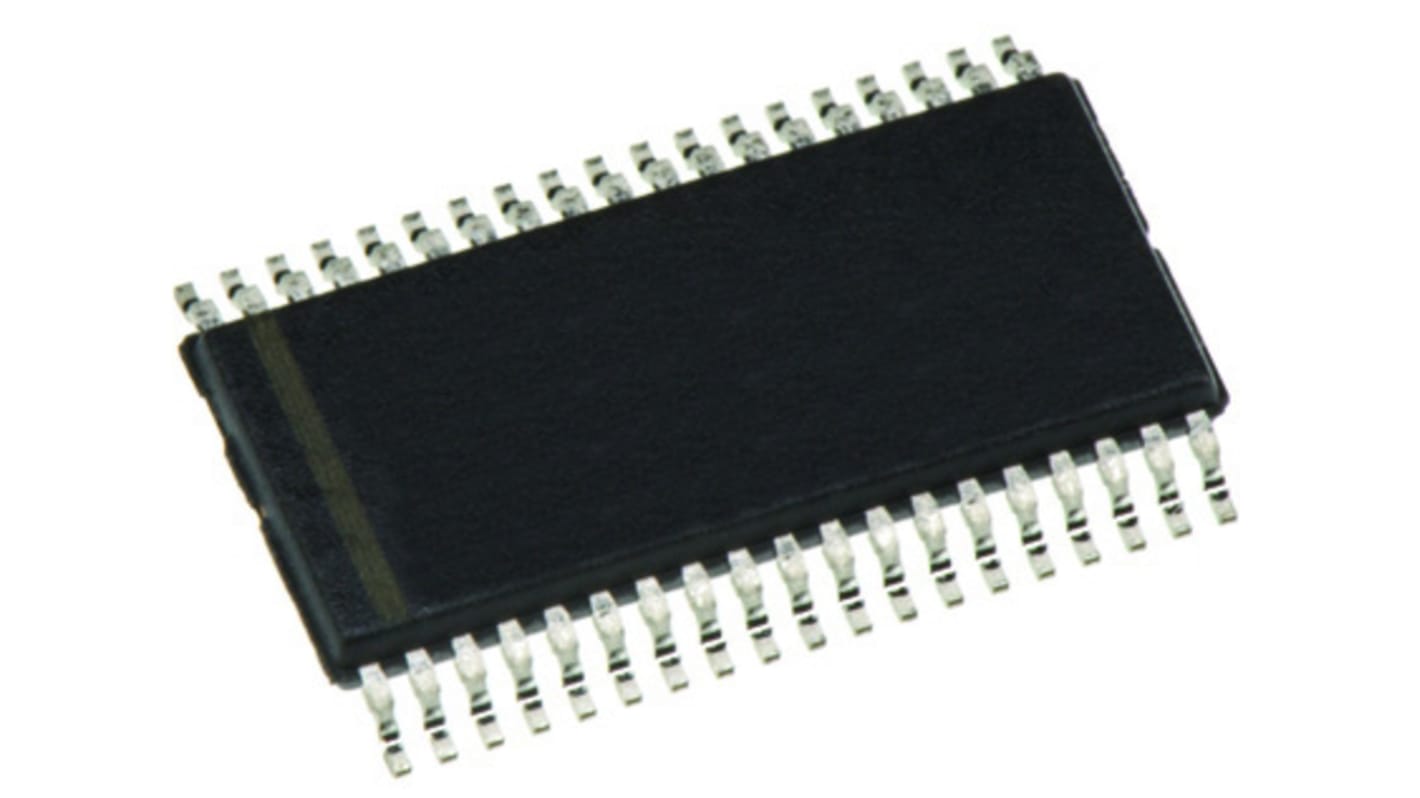

Texas Instruments ADS8684IDBT Data Acquisition System IC, 16 bit, 0.5Msps, 38-Pin TSSOP
- RS Stock No.:
- 865-9896
- Mfr. Part No.:
- ADS8684IDBT
- Brand:
- Texas Instruments
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 865-9896
- Mfr. Part No.:
- ADS8684IDBT
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Number of ADCs | 1 | |
| Data Rate | 0.5Msps | |
| Resolution | 16 bit | |
| Mounting Type | Surface Mount | |
| Package Type | TSSOP | |
| Pin Count | 38 | |
| Integral Nonlinearity Error | ±4LSB | |
| Power Supply Type | Single | |
| Typical Single Supply Voltage | 3.3 V, 5 V | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
| Width | 4.5mm | |
| Dimensions | 9.8 x 4.5 x 1.05mm | |
| Height | 1.05mm | |
| Length | 9.8mm | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Number of ADCs 1 | ||
Data Rate 0.5Msps | ||
Resolution 16 bit | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Pin Count 38 | ||
Integral Nonlinearity Error ±4LSB | ||
Power Supply Type Single | ||
Typical Single Supply Voltage 3.3 V, 5 V | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
Width 4.5mm | ||
Dimensions 9.8 x 4.5 x 1.05mm | ||
Height 1.05mm | ||
Length 9.8mm | ||
16-Bit Data Acquisition Systems, Texas Instruments
Integrated 16-bit resolution Data Acquisition Systems from Texas Instruments. The devices incorporate 16-bit SAR ADCs to provide a high resolution digital outputs from the analogue front-end at sampling rates of up to 500ksps. The analogue inputs have an impedance of 1 Megohm and are over-voltage protected up to ±20V. Gain is trimmed to ensure high accuracy and DC precision. The serial digital interface is SPI-compatible and supports daisy-chaining of multiple devices.
16-Bit ADC with Integrated Analog Front-End
Programmable input ranges: Bipolar ±2.56/5.12/10.24V, Unipolar 5.12/10.24V
5V Analogue Supply, 1.65-5.0V I/O Supply
Constant resistive input impedance of 1 MΩ
Input overvoltage protection up to ±20 V
On-chip 4.096 V low-drift reference voltage
500-ksps aggregate throughput
Low power consumption: 65 mW
SPI compatible I/F with Daisy-chain capability
Programmable input ranges: Bipolar ±2.56/5.12/10.24V, Unipolar 5.12/10.24V
5V Analogue Supply, 1.65-5.0V I/O Supply
Constant resistive input impedance of 1 MΩ
Input overvoltage protection up to ±20 V
On-chip 4.096 V low-drift reference voltage
500-ksps aggregate throughput
Low power consumption: 65 mW
SPI compatible I/F with Daisy-chain capability
