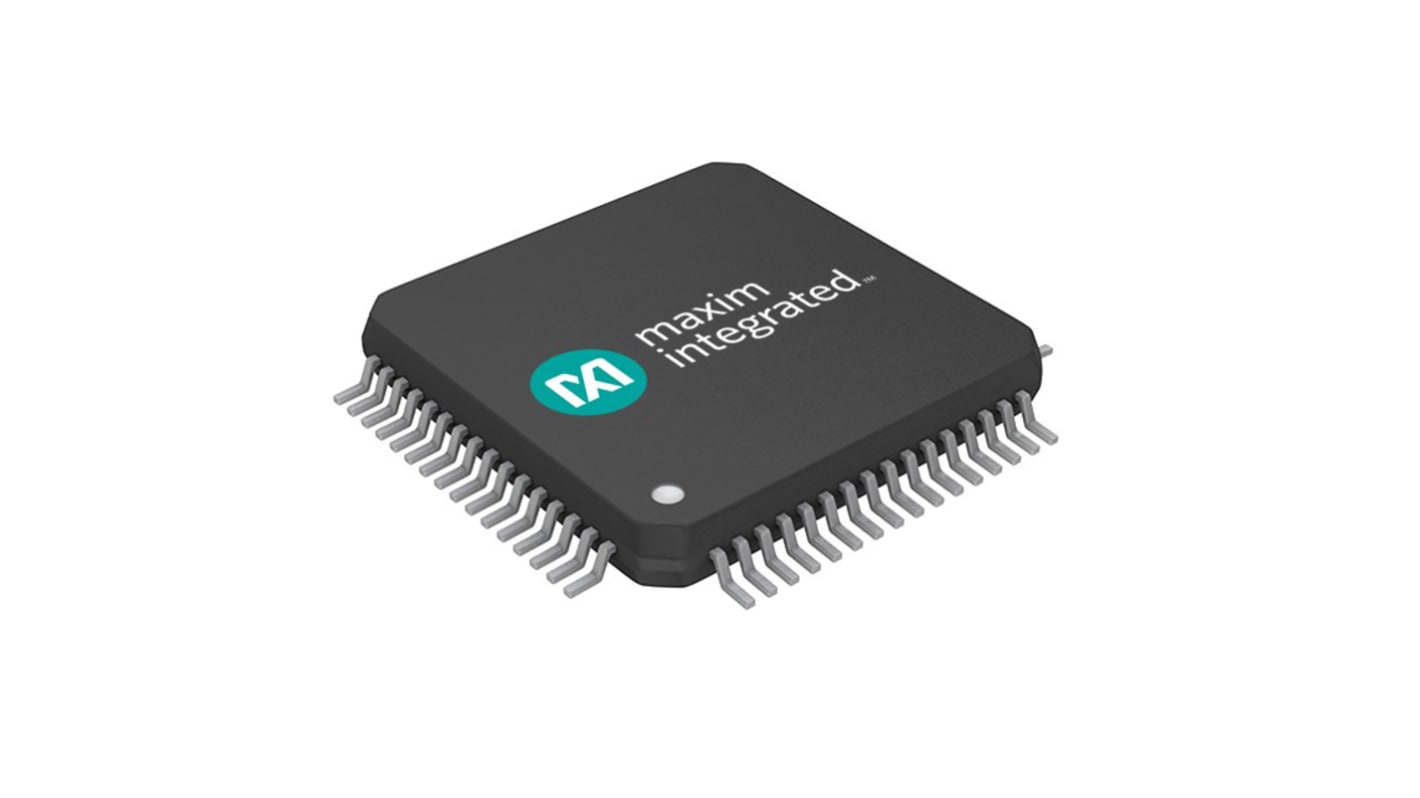

Maxim Integrated MAX17853ACB/V+ Data Acquisition IC, 12 bit, 2 Mbps, 384 μs, 64-Pin LQFP
- RS Stock No.:
- 204-2489
- Mfr. Part No.:
- MAX17853ACB/V+
- Brand:
- Maxim Integrated
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 204-2489
- Mfr. Part No.:
- MAX17853ACB/V+
- Brand:
- Maxim Integrated
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| Product Type | Data Acquisition IC | |
| Number of ADCs | 1 | |
| Sub Type | Data Acquisition | |
| Number of DACs | 0 | |
| Data Rate | 2Mbps | |
| Resolution | 12 bit | |
| Maximum Settling Time | 384μs | |
| Mount Type | Surface | |
| Package Type | LQFP | |
| Pin Count | 64 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | ASIL D | |
| Series | MAX17853 | |
| Width | 10 mm | |
| Length | 10mm | |
| Minimum Supply Voltage | 9V | |
| Maximum Supply Voltage | 65V | |
| Automotive Standard | AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
Product Type Data Acquisition IC | ||
Number of ADCs 1 | ||
Sub Type Data Acquisition | ||
Number of DACs 0 | ||
Data Rate 2Mbps | ||
Resolution 12 bit | ||
Maximum Settling Time 384μs | ||
Mount Type Surface | ||
Package Type LQFP | ||
Pin Count 64 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals ASIL D | ||
Series MAX17853 | ||
Width 10 mm | ||
Length 10mm | ||
Minimum Supply Voltage 9V | ||
Maximum Supply Voltage 65V | ||
Automotive Standard AEC-Q100 | ||
The Maxim Integrated flexible data acquisition system for the management of high voltage and low voltage battery modules. The system can measure 14 cell voltages and a combination of six temperatures or system voltage measurements with fully redundant measurement engines in 263μs.
65V operating voltage
Ultra low power operation
Automatic thermal protection
