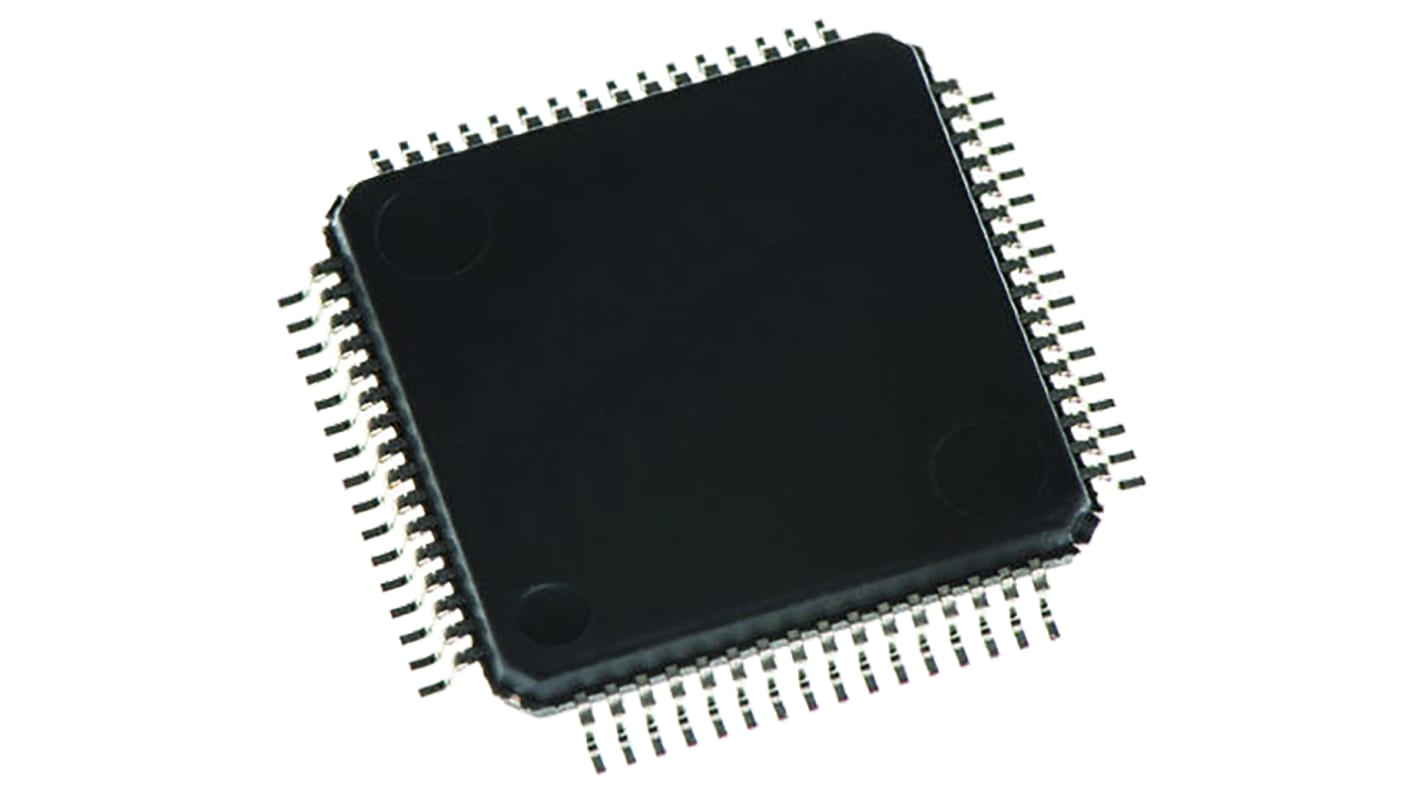

Analog Devices AD7605-4BSTZ Data Acquisition System IC, 16 bit, 300ksps, 80μs, 64-Pin LQFP
- RS Stock No.:
- 172-7832
- Mfr. Part No.:
- AD7605-4BSTZ
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 172-7832
- Mfr. Part No.:
- AD7605-4BSTZ
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Number of ADCs | 1 | |
| Data Rate | 300ksps | |
| Resolution | 16 bit | |
| Signal to Noise Ratio | 90dB | |
| Maximum Settling Time | 80µs | |
| Mounting Type | Surface Mount | |
| Package Type | LQFP | |
| Pin Count | 64 | |
| Integral Nonlinearity Error | ±2LSB | |
| Full Scale Error | ±32LSB | |
| Power Supply Type | Single | |
| Typical Single Supply Voltage | 2.5 → 5 V | |
| Dimensions | 10.2 x 10.2 x 1.45mm | |
| Maximum Operating Temperature | +85 °C | |
| Width | 10.2mm | |
| Length | 10.2mm | |
| Height | 1.45mm | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Number of ADCs 1 | ||
Data Rate 300ksps | ||
Resolution 16 bit | ||
Signal to Noise Ratio 90dB | ||
Maximum Settling Time 80µs | ||
Mounting Type Surface Mount | ||
Package Type LQFP | ||
Pin Count 64 | ||
Integral Nonlinearity Error ±2LSB | ||
Full Scale Error ±32LSB | ||
Power Supply Type Single | ||
Typical Single Supply Voltage 2.5 → 5 V | ||
Dimensions 10.2 x 10.2 x 1.45mm | ||
Maximum Operating Temperature +85 °C | ||
Width 10.2mm | ||
Length 10.2mm | ||
Height 1.45mm | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- CN
16-Bit Data Acquisition Systems, Analog Devices
Data Acquisition Systems - Analog Devices
Data-Acquisition Systems (DAS) with high channel-density are used for medical imaging, industrial process control, and automatic test equipment.
