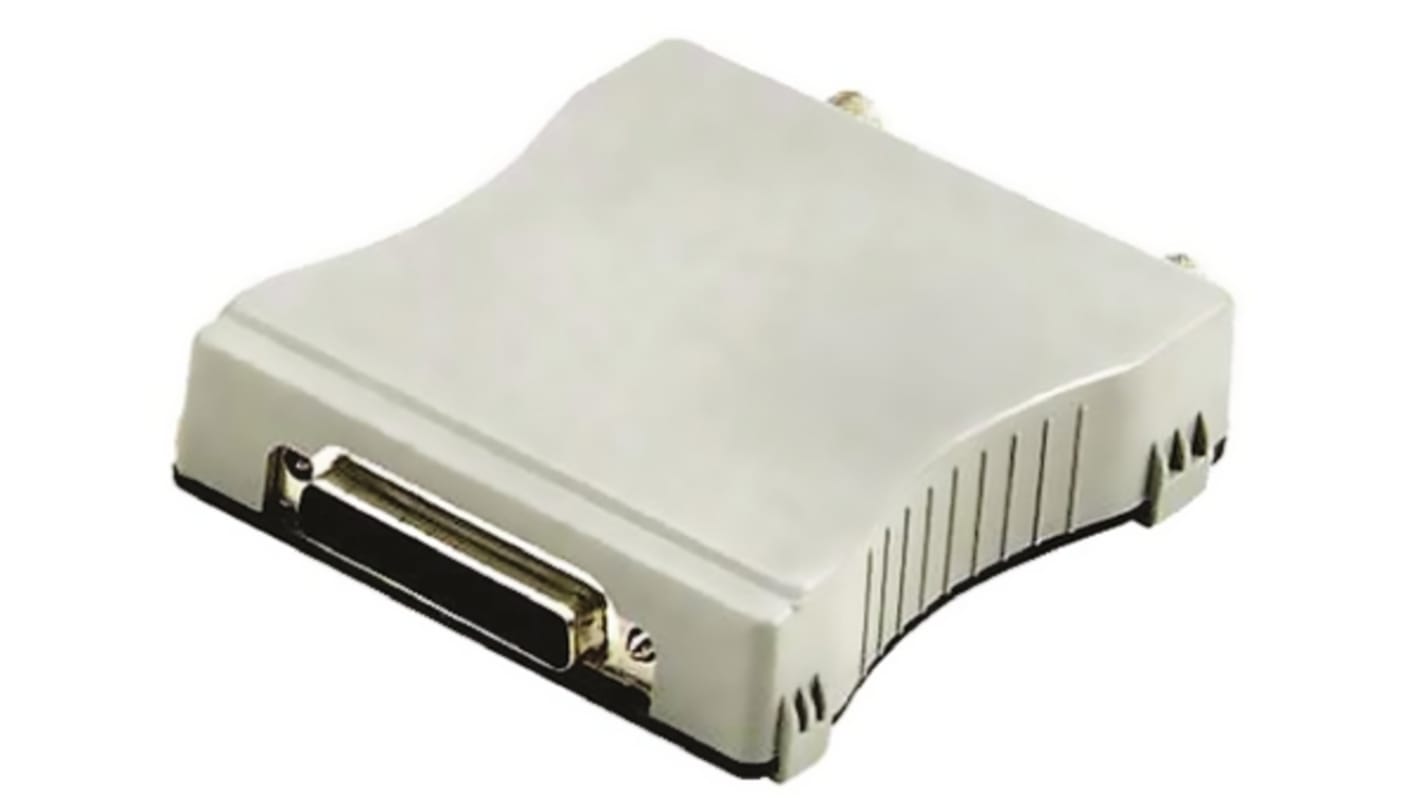

Keysight Technologies Data Acquisition for Use with USB Modular Switch Matrix
- RS Stock No.:
- 711-8072
- Mfr. Part No.:
- U2922A
- Brand:
- Keysight Technologies
Discontinued
- RS Stock No.:
- 711-8072
- Mfr. Part No.:
- U2922A
- Brand:
- Keysight Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Keysight Technologies | |
| Accessory Type | 32-Channel Terminal Block | |
| For Use With | USB Modular Switch Matrix | |
| Select all | ||
|---|---|---|
Brand Keysight Technologies | ||
Accessory Type 32-Channel Terminal Block | ||
For Use With USB Modular Switch Matrix | ||
- COO (Country of Origin):
- MY
U2751A 4x8 2-wire USB Modular Switch Matrix
Switch matrix offers flexible connection path between device under test and test equipment, enabling different instruments to be connected to multiple points on the device under test at the same time. Can support measurements at high bandwidth up to 45MHz. Uses common non-proprietary standard high-speed USB 2.0 interface that provides ease of connectivity, allowing users to set up and configure tests quickly with the plug and play feature.
4x8 2-wire matrix configuration
Maximum 30V/2A
-30dB crosstalk and <-3dB insertion loss at 45MHz operation
4ms maximum switching time
DB25 connector
High speed USB 2.0, USBTMC-USB488 standard
Standalone and modular capabilities
Relay cycle counter
Maximum 30V/2A
-30dB crosstalk and <-3dB insertion loss at 45MHz operation
4ms maximum switching time
DB25 connector
High speed USB 2.0, USBTMC-USB488 standard
Standalone and modular capabilities
Relay cycle counter
Keysight USB Data Acquisition (DAQ)
The Keysight USB Data Acquisition (DAQ) family offers the choice and flexibility to create standalone or modular solutions that expand and evolve according to test requirements.
