Keysight Technologies 34938A Data Acquisition for 34980A Data Acquisition System

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
Product Details

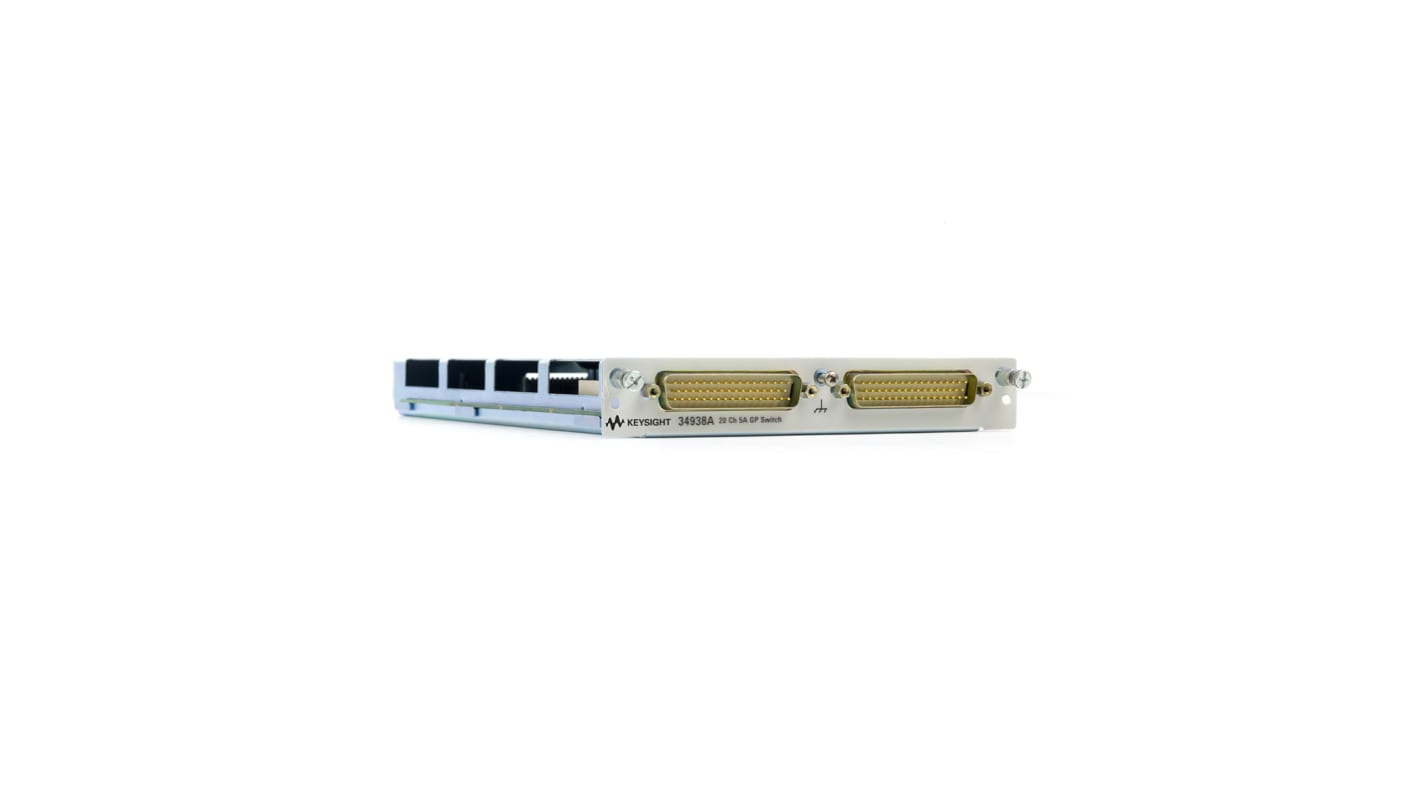

The Keysight 34938A is a high power general-purpose switch module for the 34980A Multifunction Switch/Measure Unit. It has 20 independent single-pole, single-throw (SPST) 5A relays. This module is used to cycle power to products under test, control indicator and status lights, and to actuate external power relays and solenoids. Its 30VDC/250VAC, 5A contacts can handle up to 150W on a single channel, enough for many power line switching applications. Standard 50-pin Dsub connectors allow for use with standard cables, terminal blocks, or mass interconnect solutions.

20 Form A channels up to 5A, 150W
Armature latching relays, with relay counter
Temperature sensor for overheating conditions
Simultaneous channel switching

Specifications
Attribute Value
Accessory Type 20-Channel 5A Form A Switch
For Use With 34980A Data Acquisition System
Available to back order for despatch 08/09/2020
Price Each
£ 1,146.00
(exc. VAT)
£ 1,375.20
(inc. VAT)
Units
Per unit
1 +
£1,146.00
