MPN

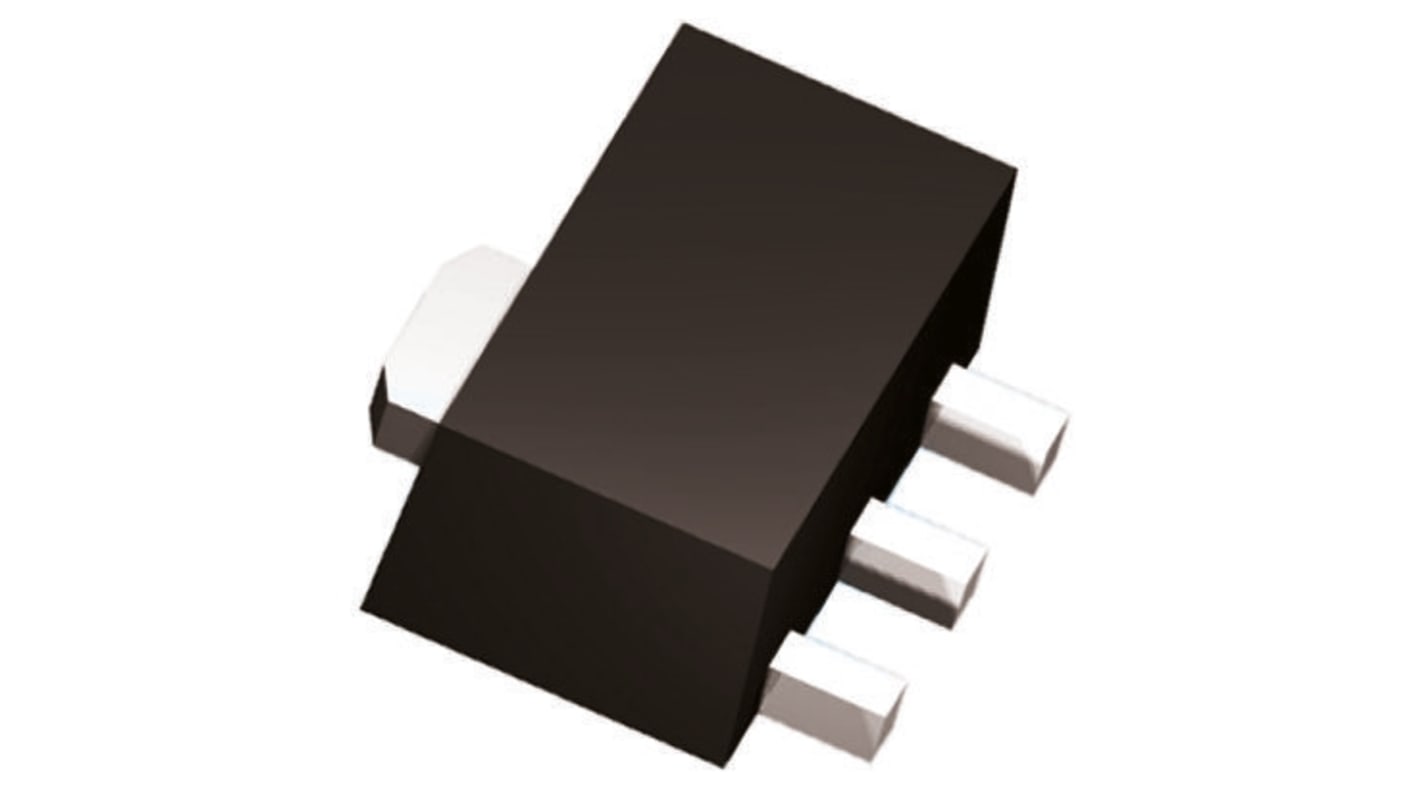

Diodes Inc FCX605TA NPN Darlington Transistor, 1 A 120 V HFE:5000, 3-Pin SOT-89

Bulk discount available

Subtotal 200 units (supplied on a reel)*

£49.60

(exc. VAT)

£59.60

(inc. VAT)

Limited stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
200 - 475	£0.248
500 +	£0.234

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	DiodesZetex
	Transistor Type	NPN
	Maximum Continuous Collector Current	1 A
	Maximum Collector Emitter Voltage	120 V
	Maximum Emitter Base Voltage	10 V
	Package Type	SOT-89
	Mounting Type	Surface Mount
	Pin Count	3
	Transistor Configuration	Single
	Number of Elements per Chip	1
	Minimum DC Current Gain	5000
	Maximum Base Emitter Saturation Voltage	1.8 V
	Maximum Collector Base Voltage	140 V
	Maximum Collector Emitter Saturation Voltage	1.5 V
	Minimum Operating Temperature	-55 °C
	Dimensions	4.6 x 2.6 x 1.6mm
	Width	2.6mm
	Height	1.6mm
	Length	4.6mm
	Maximum Power Dissipation	2.8 W
	Maximum Operating Temperature	+150 °C

	Select all
	Brand DiodesZetex
	Transistor Type NPN
	Maximum Continuous Collector Current 1 A
	Maximum Collector Emitter Voltage 120 V
	Maximum Emitter Base Voltage 10 V
	Package Type SOT-89
	Mounting Type Surface Mount
	Pin Count 3
	Transistor Configuration Single
	Number of Elements per Chip 1
	Minimum DC Current Gain 5000
	Maximum Base Emitter Saturation Voltage 1.8 V
	Maximum Collector Base Voltage 140 V
	Maximum Collector Emitter Saturation Voltage 1.5 V
	Minimum Operating Temperature -55 °C
	Dimensions 4.6 x 2.6 x 1.6mm
	Width 2.6mm
	Height 1.6mm
	Length 4.6mm
	Maximum Power Dissipation 2.8 W
	Maximum Operating Temperature +150 °C
