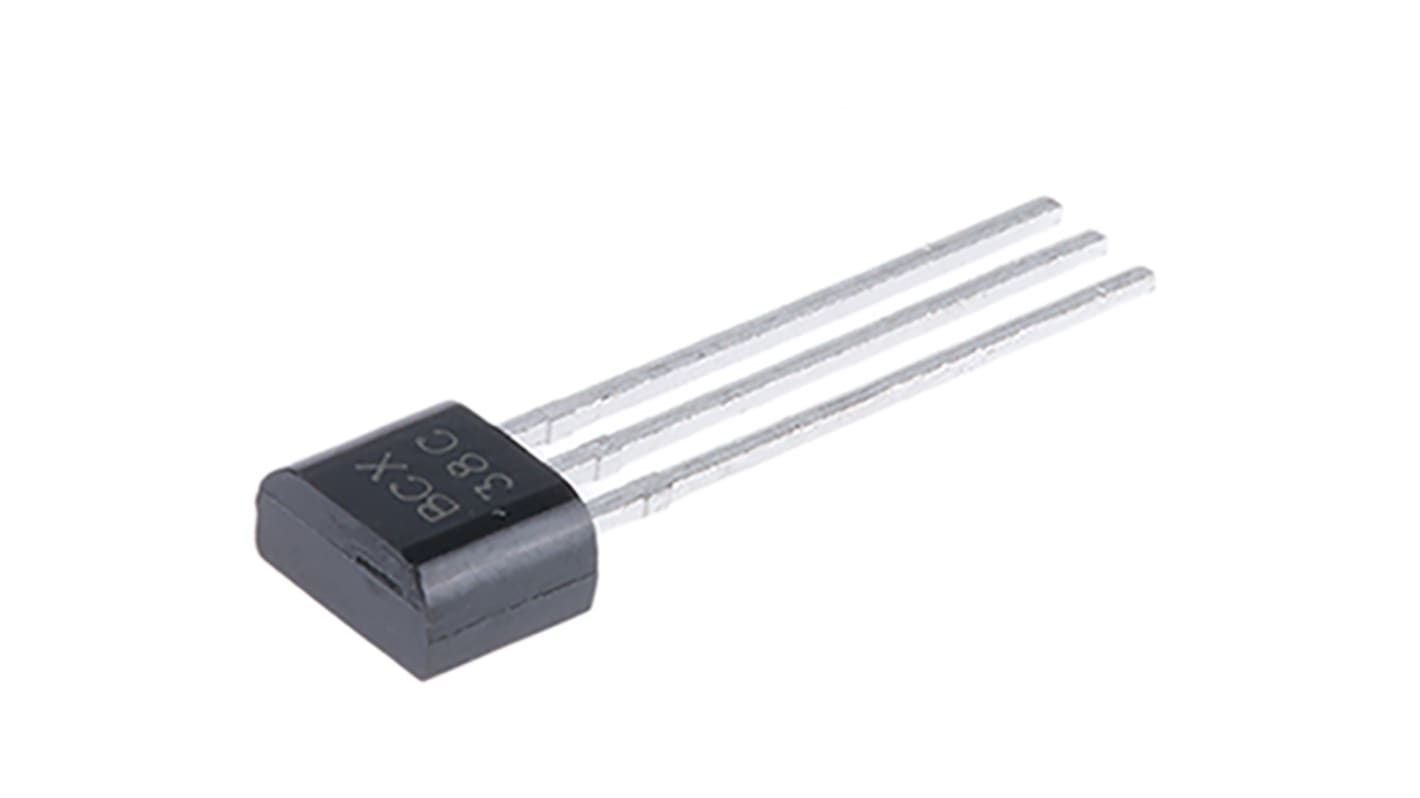

Diodes Inc BCX38C NPN Darlington Transistor, 800 mA 60 V HFE:5000, 3-Pin TO-92

RS Stock No.:: 751-3534P
Mfr. Part No.:: BCX38C
Brand:: DiodesZetex

Diodes Inc BCX38C NPN Darlington Transistor, 800 mA 60 V HFE:5000, 3-Pin TO-92

1250 In stock - FREE next working day delivery available

Price Each (Supplied in a Bag)

£0.624

(exc. VAT)

£0.749

(inc. VAT)

Units	Per unit
200 - 975	£0.624
1000 - 1975	£0.517
2000 +	£0.412

RS Stock No.:: 751-3534P
Mfr. Part No.:: BCX38C
Brand:: DiodesZetex

NPN Silicon Planar Medium Power Darlington Transistors
ESD Control Selection Guide V1

Attribute	Value
Transistor Type	NPN
Maximum Continuous Collector Current	800 mA
Maximum Collector Emitter Voltage	60 V
Maximum Emitter Base Voltage	10 V
Package Type	TO-92
Mounting Type	Through Hole
Pin Count	3
Transistor Configuration	Single
Number of Elements per Chip	1
Minimum DC Current Gain	5000
Maximum Collector Base Voltage	80 V
Maximum Collector Emitter Saturation Voltage	1.25 V
Maximum Collector Cut-off Current	100nA
Dimensions	4.77 x 2.41 x 4.01mm
Height	4.01mm
Maximum Operating Temperature	+200 °C
Length	4.77mm
Maximum Power Dissipation	1 W
Minimum Operating Temperature	-55 °C
Width	2.41mm

Diodes Inc BCX38C NPN Darlington Transistor, 800 mA 60 V HFE:5000, 3-Pin TO-92

Darlington Transistors, Diodes Inc
