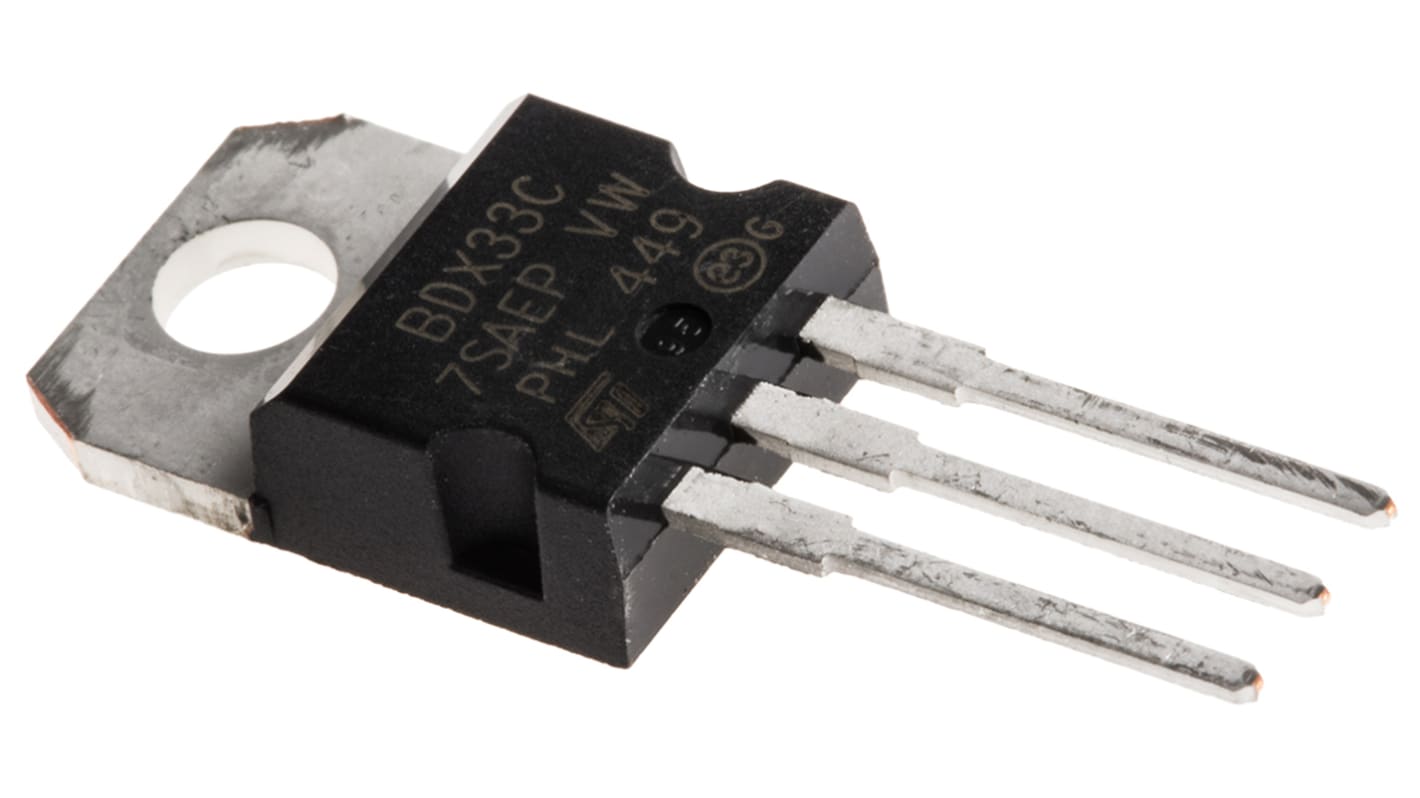

STMicroelectronics BDX33C NPN Darlington Transistor, 10 A 100 V HFE:750, 3-Pin TO-220

RS Stock No.:: 714-2687
Mfr. Part No.:: BDX33C
Brand:: STMicroelectronics

STMicroelectronics BDX33C NPN Darlington Transistor, 10 A 100 V HFE:750, 3-Pin TO-220

340 In stock - FREE next working day delivery available

240 available from Europe for delivery within 1 working day(s).

Added

Price Each (In a Pack of 10)

£0.784

(exc. VAT)

£0.941

(inc. VAT)

Units	Per unit	Per Pack*
10 - 90	£0.784	£7.84
100 - 240	£0.587	£5.87
250 - 490	£0.571	£5.71
500 - 990	£0.50	£5.00
1000 +	£0.406	£4.06
*price indicative

RS Stock No.:: 714-2687
Mfr. Part No.:: BDX33C
Brand:: STMicroelectronics

Technical Reference

Legislation and Compliance

Product Details

NPN Darlington Transistors, STMicroelectronics

Bipolar Transistors, STMicroelectronics

A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.

Specifications

Attribute	Value
Transistor Type	NPN
Maximum Continuous Collector Current	10 A
Maximum Collector Emitter Voltage	100 V
Package Type	TO-220
Mounting Type	Through Hole
Pin Count	3
Transistor Configuration	Single
Number of Elements per Chip	1
Minimum DC Current Gain	750
Maximum Collector Base Voltage	100 V
Maximum Collector Emitter Saturation Voltage	2.5 V
Maximum Collector Cut-off Current	0.2mA
Height	9.15mm
Dimensions	10.4 x 4.6 x 9.15mm
Maximum Operating Temperature	+150 °C
Length	10.4mm
Width	4.6mm
Minimum Operating Temperature	-65 °C
