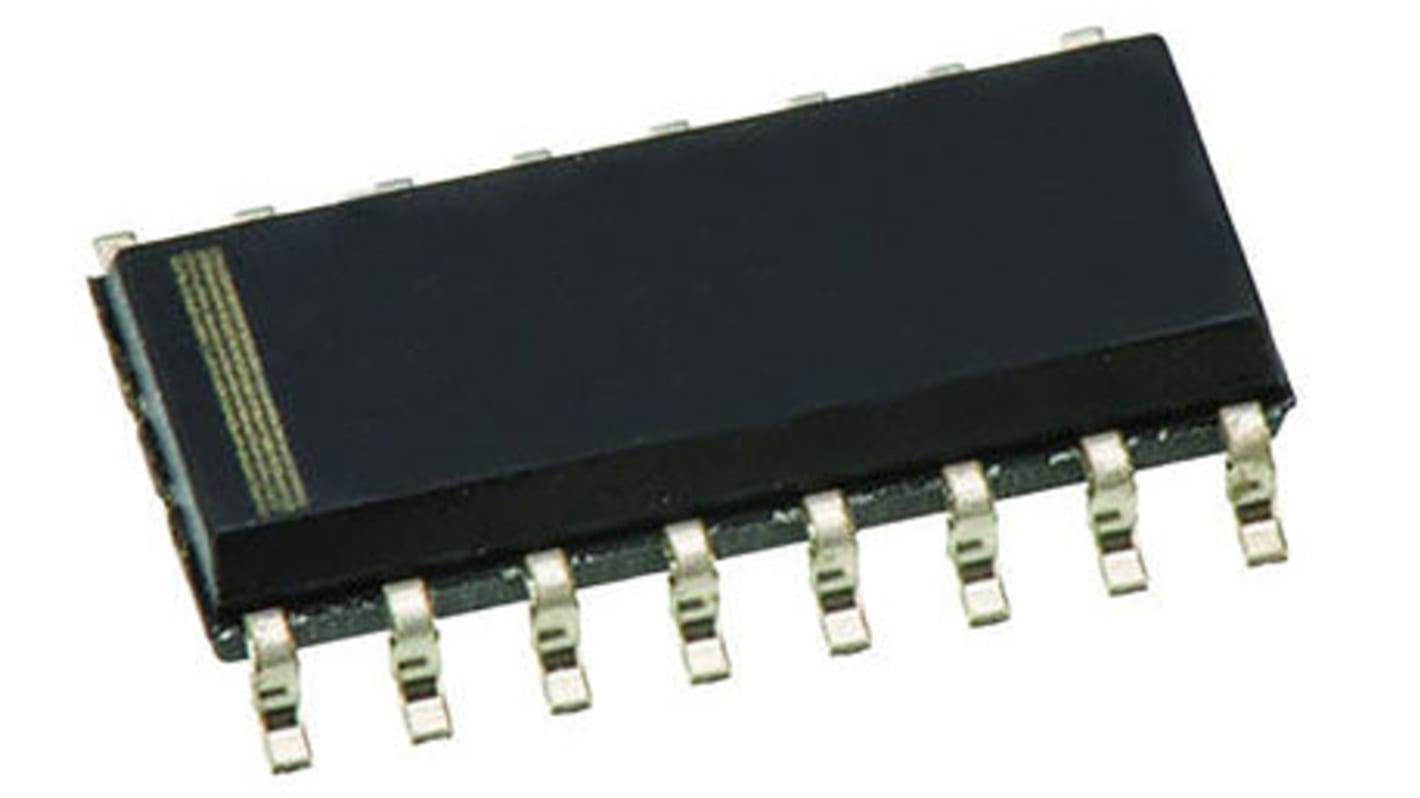

onsemi MC1413BDG, 7-element NPN Darlington Pair, 500 mA 50 V HFE:1000, 16-Pin SOIC
- RS Stock No.:
- 688-9408P
- Mfr. Part No.:
- MC1413BDG
- Brand:
- onsemi
Discontinued
- RS Stock No.:
- 688-9408P
- Mfr. Part No.:
- MC1413BDG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Transistor Type | NPN | |
| Maximum Continuous Collector Current | 500 mA | |
| Maximum Collector Emitter Voltage | 50 V | |
| Maximum Emitter Base Voltage | 5 V | |
| Package Type | SOIC | |
| Mounting Type | Surface Mount | |
| Pin Count | 16 | |
| Transistor Configuration | Common Emitter | |
| Number of Elements per Chip | 7 | |
| Minimum DC Current Gain | 1000 | |
| Maximum Collector Emitter Saturation Voltage | 1.6 V | |
| Height | 1.5mm | |
| Dimensions | 10 x 4 x 1.5mm | |
| Length | 10mm | |
| Maximum Operating Temperature | +85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Width | 4mm | |
| Select all | ||
|---|---|---|
Brand onsemi | ||
Transistor Type NPN | ||
Maximum Continuous Collector Current 500 mA | ||
Maximum Collector Emitter Voltage 50 V | ||
Maximum Emitter Base Voltage 5 V | ||
Package Type SOIC | ||
Mounting Type Surface Mount | ||
Pin Count 16 | ||
Transistor Configuration Common Emitter | ||
Number of Elements per Chip 7 | ||
Minimum DC Current Gain 1000 | ||
Maximum Collector Emitter Saturation Voltage 1.6 V | ||
Height 1.5mm | ||
Dimensions 10 x 4 x 1.5mm | ||
Length 10mm | ||
Maximum Operating Temperature +85 °C | ||
Minimum Operating Temperature -40 °C | ||
Width 4mm | ||
RoHS Status: Not Applicable
NPN Darlington Transistors, ON Semiconductor
Standards
Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard.
