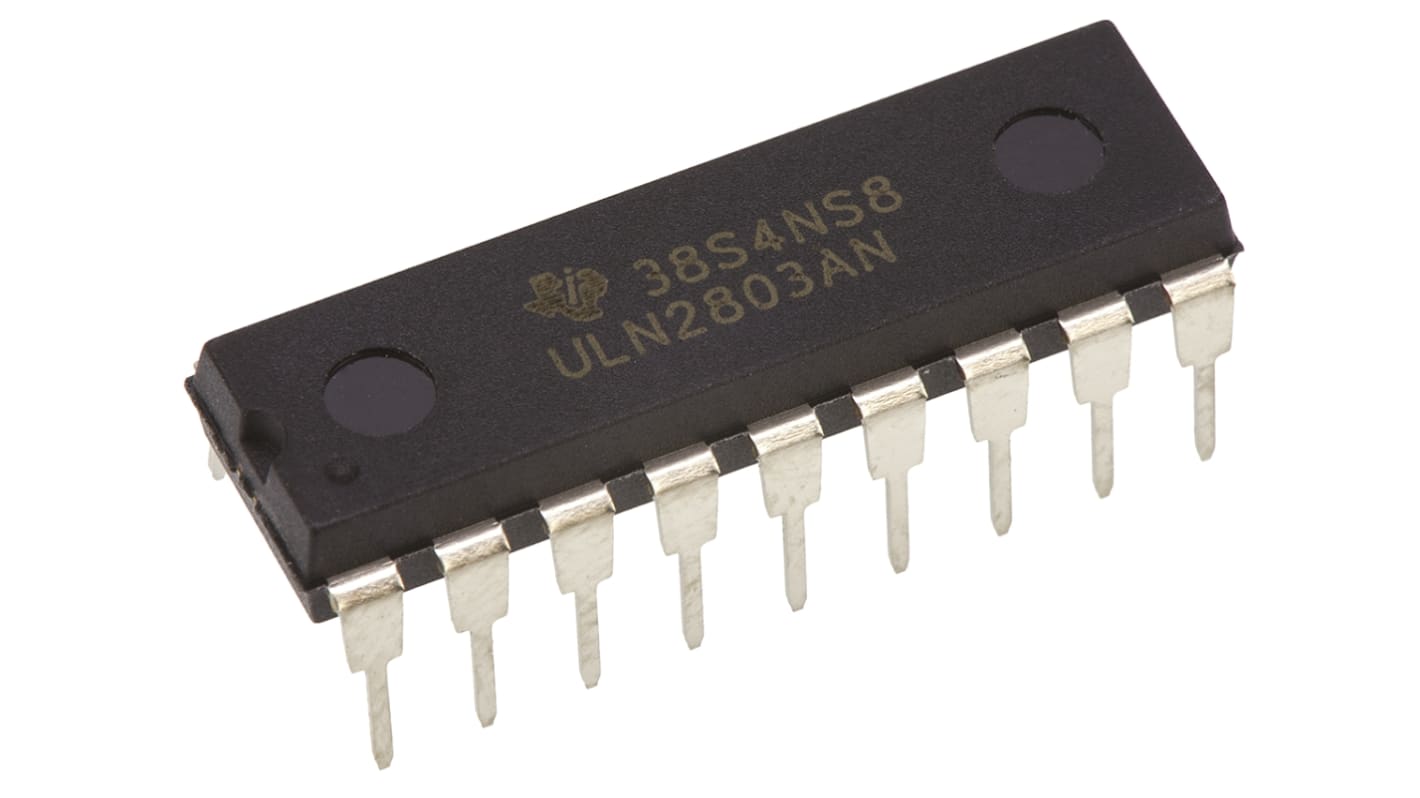

Texas Instruments ULN2803AN Octal NPN Darlington Transistor Array, 500 mA 50 V, 18-Pin PDIP
- RS Stock No.:
- 646-6305
- Mfr. Part No.:
- ULN2803AN
- Brand:
- Texas Instruments
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Pack of 5)
£1.83
(exc. VAT)
£2.20
(inc. VAT)
- RS Stock No.:
- 646-6305
- Mfr. Part No.:
- ULN2803AN
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Transistor Type | NPN | |
| Maximum Continuous Collector Current | 500 mA | |
| Maximum Collector Emitter Voltage | 50 V | |
| Maximum Emitter Base Voltage | 50 V | |
| Package Type | PDIP | |
| Mounting Type | Through Hole | |
| Pin Count | 18 | |
| Transistor Configuration | Common Emitter | |
| Number of Elements per Chip | 8 | |
| Maximum Collector Emitter Saturation Voltage | 1.6 V | |
| Width | 6.35mm | |
| Length | 22.48mm | |
| Minimum Operating Temperature | -65 °C | |
| Maximum Operating Temperature | +150 °C | |
| Dimensions | 22.48 x 6.35 x 4.57mm | |
| Height | 4.57mm | |
Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Transistor Type NPN | ||
Maximum Continuous Collector Current 500 mA | ||
Maximum Collector Emitter Voltage 50 V | ||
Maximum Emitter Base Voltage 50 V | ||
Package Type PDIP | ||
Mounting Type Through Hole | ||
Pin Count 18 | ||
Transistor Configuration Common Emitter | ||
Number of Elements per Chip 8 | ||
Maximum Collector Emitter Saturation Voltage 1.6 V | ||
Width 6.35mm | ||
Length 22.48mm | ||
Minimum Operating Temperature -65 °C | ||
Maximum Operating Temperature +150 °C | ||
Dimensions 22.48 x 6.35 x 4.57mm | ||
Height 4.57mm | ||
Darlington Transistor Arrays, Texas Instruments
A range of Darlington transistor arrays from Texas Instruments suitable for a wide range of medium to high current driver applications.
Darlington Transistor Drivers
