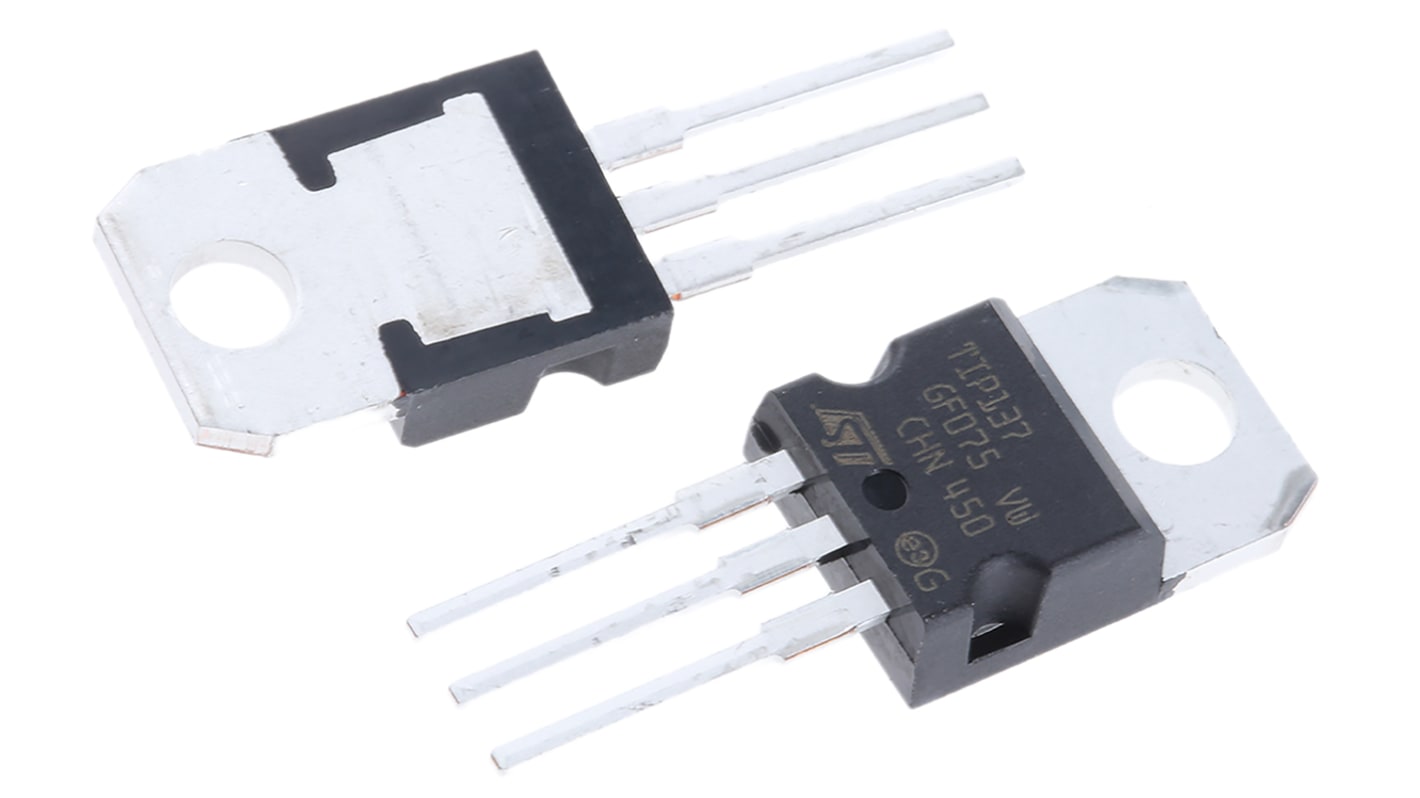

STMicroelectronics TIP137 PNP Darlington Transistor, 8 A 100 V HFE:500, 3-Pin TO-220
- RS Stock No.:
- 485-9682
- Mfr. Part No.:
- TIP137
- Brand:
- STMicroelectronics
30 In stock - FREE next working day delivery available
25 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 5)
£1.21
(exc. VAT)
£1.45
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 5 | £1.21 | £6.05 |
| 10 - 95 | £1.02 | £5.10 |
| 100 - 245 | £0.766 | £3.83 |
| 250 - 495 | £0.746 | £3.73 |
| 500 + | £0.65 | £3.25 |
| *price indicative | ||
- RS Stock No.:
- 485-9682
- Mfr. Part No.:
- TIP137
- Brand:
- STMicroelectronics
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
PNP Darlington Transistors, STMicroelectronics
Bipolar Transistors, STMicroelectronics
A broad range of NPN and PNP Bipolar Transistors from STMicroelectronics including General Purpose, Darlington, Power and High-Voltage devices in both SMT and Through-hole packages.
Specifications
Attribute | Value |
|---|---|
| Transistor Type | PNP |
| Maximum Continuous Collector Current | 8 A |
| Maximum Collector Emitter Voltage | 100 V |
| Maximum Emitter Base Voltage | 5 V |
| Package Type | TO-220 |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Transistor Configuration | Single |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain | 500 |
| Maximum Collector Base Voltage | 100 V |
| Maximum Collector Emitter Saturation Voltage | 4 V |
| Maximum Collector Cut-off Current | 0.2mA |
| Minimum Operating Temperature | -65 °C |
| Width | 4.6mm |
| Height | 9.15mm |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 10.4 x 4.6 x 9.15mm |
| Length | 10.4mm |
