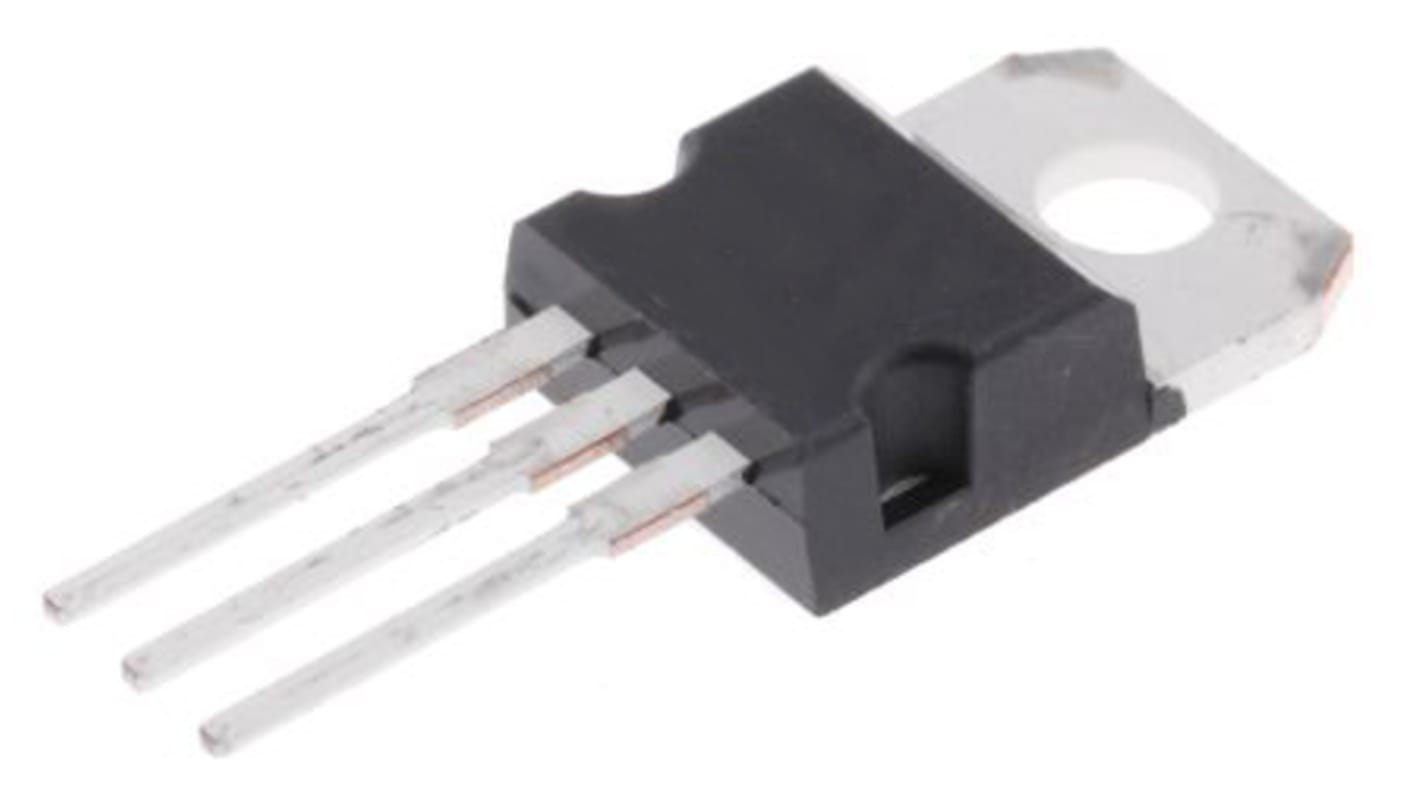

onsemi TIP121G NPN Darlington Transistor, 5 A dc 80 V dc HFE:1000, 3-Pin TO-220
- RS Stock No.:
- 186-8205P
- Mfr. Part No.:
- TIP121G
- Brand:
- onsemi
Subtotal 25 units (supplied in a tube)*
£14.025
(exc. VAT)
£16.825
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 25 + | £0.561 |
*price indicative
- RS Stock No.:
- 186-8205P
- Mfr. Part No.:
- TIP121G
- Brand:
- onsemi
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Transistor Type | NPN | |
| Maximum Continuous Collector Current | 5 A dc | |
| Maximum Collector Emitter Voltage | 80 V dc | |
| Maximum Emitter Base Voltage | 5 V dc | |
| Package Type | TO-220 | |
| Mounting Type | Through Hole | |
| Pin Count | 3 | |
| Configuration | Single | |
| Transistor Configuration | Single | |
| Number of Elements per Chip | 1 | |
| Minimum DC Current Gain | 1000 | |
| Maximum Collector Base Voltage | 80 V dc | |
| Maximum Collector Emitter Saturation Voltage | 4 V dc | |
| Maximum Power Dissipation | 65 W | |
| Minimum Operating Temperature | -65 °C | |
| Dimensions | 10.53 x 4.83 x 15.75mm | |
| Maximum Operating Temperature | +150 °C | |
| Length | 10.53mm | |
| Width | 4.83mm | |
| Height | 15.75mm | |
