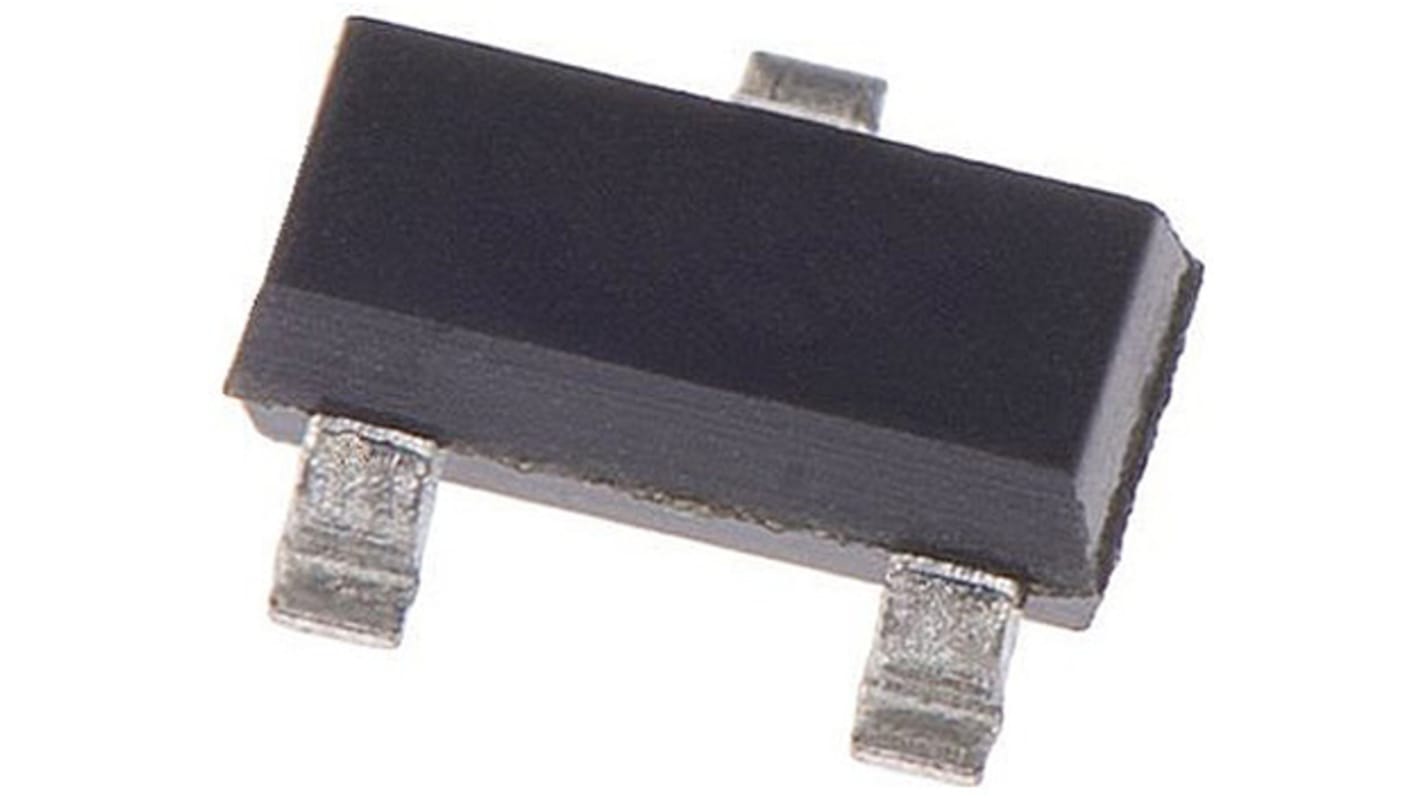

onsemi MMBTA14LG Dual NPN Darlington Transistor, 300 mA 30 V HFE:5000, 3-Pin SOT-23
- RS Stock No.:
- 145-3358
- Mfr. Part No.:
- MMBTA14LT1G
- Brand:
- onsemi
12000 In stock - FREE next working day delivery available
Added
Price Each (On a Reel of 3000)
£0.027
(exc. VAT)
£0.032
(inc. VAT)
| Units | Per unit | Per Reel* |
| 3000 - 3000 | £0.027 | £81.00 |
| 6000 + | £0.025 | £75.00 |
| *price indicative | ||
- RS Stock No.:
- 145-3358
- Mfr. Part No.:
- MMBTA14LT1G
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
NPN Darlington Transistors, ON Semiconductor
Standards
Manufacturer Part Nos with S or NSV prefix are automotive qualified to AEC-Q101 standard.
Specifications
Attribute | Value |
|---|---|
| Transistor Type | NPN |
| Maximum Continuous Collector Current | 300 mA |
| Maximum Collector Emitter Voltage | 30 V |
| Maximum Emitter Base Voltage | 10 V |
| Package Type | SOT-23 |
| Mounting Type | Surface Mount |
| Pin Count | 3 |
| Transistor Configuration | Single |
| Number of Elements per Chip | 2 |
| Minimum DC Current Gain | 5000 |
| Maximum Collector Base Voltage | 30 V |
| Maximum Collector Emitter Saturation Voltage | 1.5 V |
| Maximum Collector Cut-off Current | 100nA |
| Maximum Operating Temperature | +150 °C |
| Length | 3.04mm |
| Dimensions | 3.04 x 1.4 x 1.01mm |
| Minimum Operating Temperature | -55 °C |
| Maximum Power Dissipation | 300 mW |
| Width | 1.4mm |
| Height | 1.01mm |
