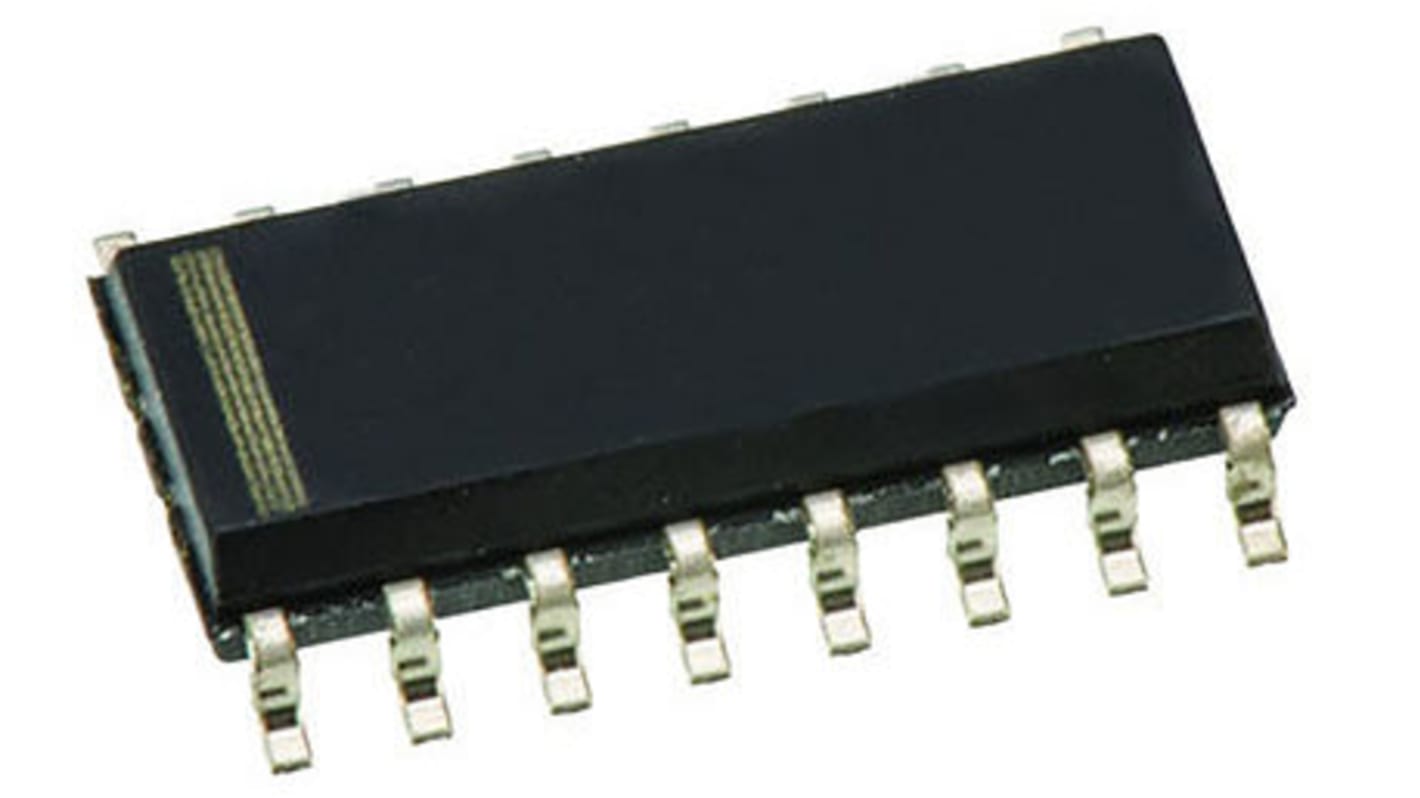

STMicroelectronics ULN2003D1013TR, 7-element NPN Darlington Transistor, 500 mA 50 V HFE:1000, 16-Pin SOIC
- RS Stock No.:
- 426-229P
- Mfr. Part No.:
- ULN2003D1013TR
- Brand:
- STMicroelectronics
Bulk discount available
Subtotal 50 units (supplied on a continuous strip)*
£8.55
(exc. VAT)
£10.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 5,880 unit(s) shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 50 - 90 | £0.171 |
| 100 - 240 | £0.162 |
| 250 - 490 | £0.154 |
| 500 + | £0.145 |
*price indicative
- RS Stock No.:
- 426-229P
- Mfr. Part No.:
- ULN2003D1013TR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Transistor Type | NPN | |
| Maximum Continuous Collector Current | 500 mA | |
| Maximum Collector Emitter Voltage | 50 V | |
| Package Type | SOIC | |
| Mounting Type | Surface Mount | |
| Pin Count | 16 | |
| Transistor Configuration | Common Emitter | |
| Number of Elements per Chip | 7 | |
| Minimum DC Current Gain | 1000 | |
| Maximum Collector Emitter Saturation Voltage | 1.6 V | |
| Dimensions | 10 x 4 x 1.65mm | |
| Minimum Operating Temperature | -20 °C | |
| Maximum Operating Temperature | +85 °C | |
| Length | 10mm | |
| Height | 1.65mm | |
| Width | 4mm | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Transistor Type NPN | ||
Maximum Continuous Collector Current 500 mA | ||
Maximum Collector Emitter Voltage 50 V | ||
Package Type SOIC | ||
Mounting Type Surface Mount | ||
Pin Count 16 | ||
Transistor Configuration Common Emitter | ||
Number of Elements per Chip 7 | ||
Minimum DC Current Gain 1000 | ||
Maximum Collector Emitter Saturation Voltage 1.6 V | ||
Dimensions 10 x 4 x 1.65mm | ||
Minimum Operating Temperature -20 °C | ||
Maximum Operating Temperature +85 °C | ||
Length 10mm | ||
Height 1.65mm | ||
Width 4mm | ||
Darlington Transistor Arrays, STMicroelectronics
Darlington transistor power drivers are high-voltage, high-current switch arrays containing multiple open-collector Darlington pairs and integral suppression diodes for inductive loads. The high current rating of each output is 500 mA or higher. The inputs are pinned opposite the outputs in the IC package to simplify the application board layout. The interface is standard logic level for TTL or CMOS.
Darlington Transistor Drivers
