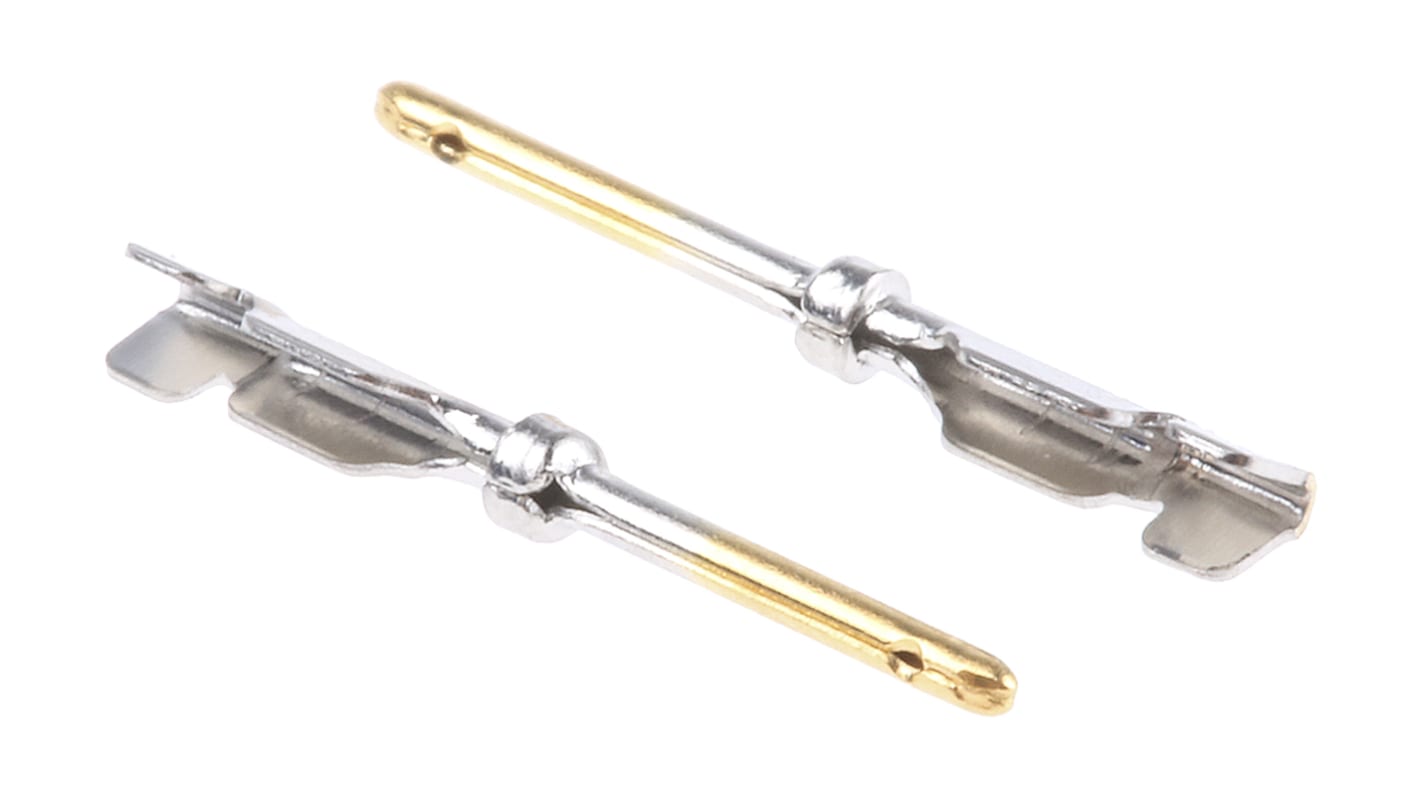

HARTING, D-Sub High Density Series, Male Crimp D-sub Connector Contact, Gold Crimp, 26 → 24 AWG

Stamped contacts
Performance level 3
AWG 26-24 (0.14-0.22 mm²)

This D-sub connector contact is a high-density male crimp connector designed for use in various electrical applications. Constructed from durable copper alloy, this connector ensures optimal performance with a wire size compatibility ranging from 26 to 24AWG. Featuring gold plating, the contact provides excellent conductivity and low contact resistance, making it ideal for reliable connections in demanding environments.

• Compatible with wire sizes from 26 to 24AWG, ensuring versatility
• Constructed from copper alloy for durability and strength
• Gold-plated contacts enhance electrical conductivity
• Crimp termination method facilitates secure connections
• Maximum contact resistance of 20mΩ ensures reliable performance
• Rated for a current capacity of 2A for reliable operation

• Used with automation and control equipment for reliable connections
• Ideal for connecting circuit boards in electronic devices
• Utilised in various electrical systems requiring secure contacts
• Commonly found in industrial machinery for effective power distribution
• Suitable for joining wires in mechanical devices needing precise fittings

The crimp termination method ensures a robust connection that can handle mechanical stress, reducing the likelihood of loosening over time. This method also simplifies installation and enhances long-term reliability.

Gold plating significantly improves resistance to corrosion and oxidation, ensuring a lasting electrical connection. This feature is crucial for maintaining low contact resistance over time, especially in harsh environments.

The connector performs effectively in environments where low contact resistance is essential, such as in temperature-sensitive applications and areas with high vibration. Its robust design aids in consistent performance even under such conditions.

Harting D Sub High Density

The high density range exceeds the contact capacity of a standard subminiature D connector by 70%.

Stamped pins
Tinned metal shell (Male connector with dimples)
