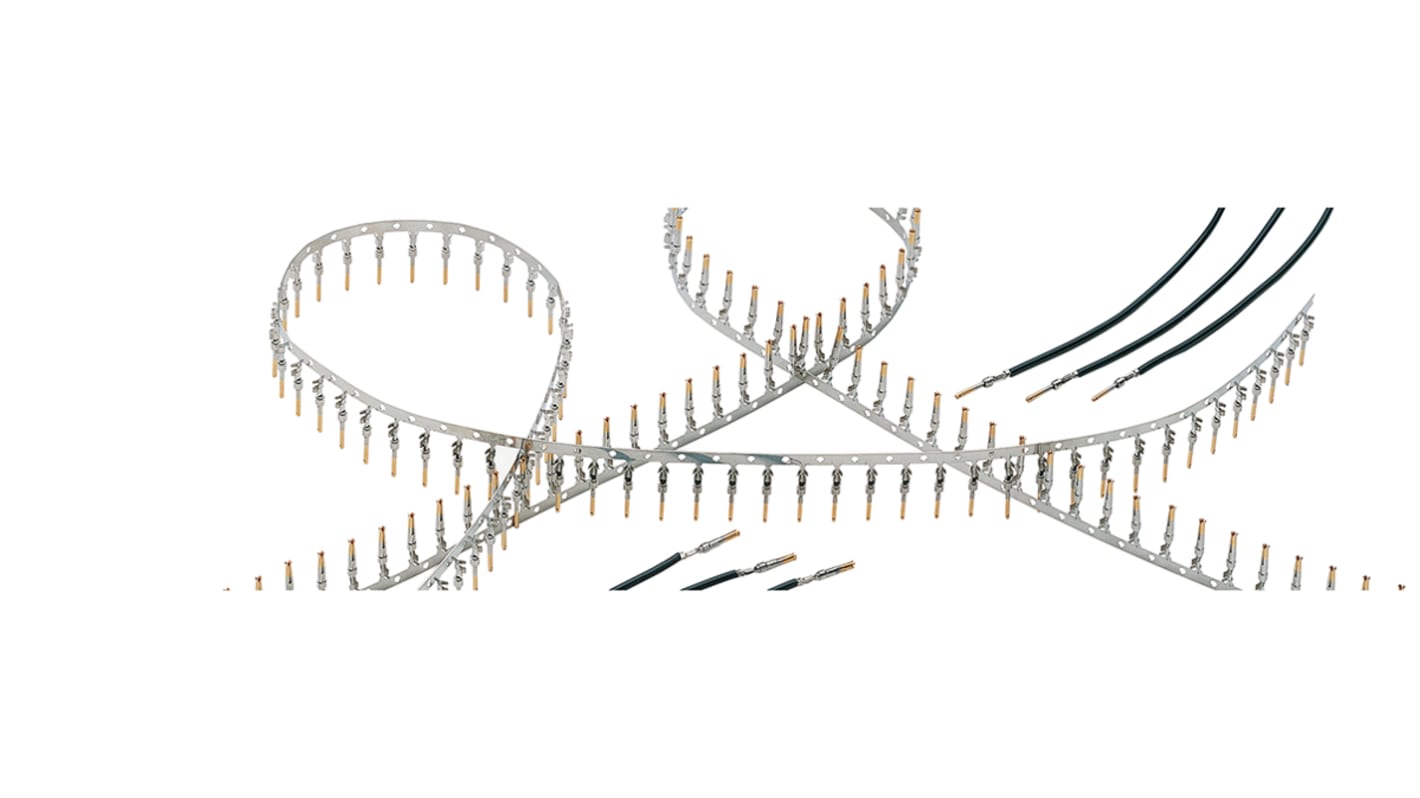

HARTING, D-Sub Standard Series, Male Crimp D-Sub Connector Contact, Palladium over Nickel Pin 24 AWG
- RS Stock No.:
- 139-3674
- Mfr. Part No.:
- 09670007168
- Brand:
- HARTING
Bulk discount available
Subtotal (1 reel of 500 units)*
£109.50
(exc. VAT)
£131.50
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 500 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 500 - 1000 | £0.219 | £109.50 |
| 1500 - 2500 | £0.213 | £106.50 |
| 3000 - 4500 | £0.208 | £104.00 |
| 5000 + | £0.202 | £101.00 |
*price indicative
- RS Stock No.:
- 139-3674
- Mfr. Part No.:
- 09670007168
- Brand:
- HARTING
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Gender | Male | |
| Product Type | D-Sub Connector Contact | |
| Contact Material | Copper Alloy | |
| Current | 6.5A | |
| Contact Plating | Palladium over Nickel | |
| Maximum Contact Resistance | 10mΩ | |
| Contact Type | Pin | |
| Minimum Wire Size mm² | 0.09mm² | |
| Maximum Wire Size mm² | 0.25mm² | |
| Series | D-Sub Standard | |
| Termination Type | Crimp | |
| Length | 14.48mm | |
| Standards/Approvals | No | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 24AWG | |
| Select all | ||
|---|---|---|
Brand HARTING | ||
Gender Male | ||
Product Type D-Sub Connector Contact | ||
Contact Material Copper Alloy | ||
Current 6.5A | ||
Contact Plating Palladium over Nickel | ||
Maximum Contact Resistance 10mΩ | ||
Contact Type Pin | ||
Minimum Wire Size mm² 0.09mm² | ||
Maximum Wire Size mm² 0.25mm² | ||
Series D-Sub Standard | ||
Termination Type Crimp | ||
Length 14.48mm | ||
Standards/Approvals No | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 24AWG | ||
- COO (Country of Origin):
- DE
Harting Sub-D Connector Crimp Contacts and Tooling
From Harting, a range of Male and female contacts for crimping onto wires with cross sections between 28 - 20 AWG, suitable for Harting D-Sub connectors. The range also includes an appropriate crimp tool for use with male and female cut and formed contacts, and an insertion removal tool.
Appropriate tooling for Harting D-sub crimps includes the following:
• Stock number 740-6657 is an Insertion and Extraction Tool
• Stock number 100-8566 is a Manual Crimp Tool
Standards
IEC 60 807
