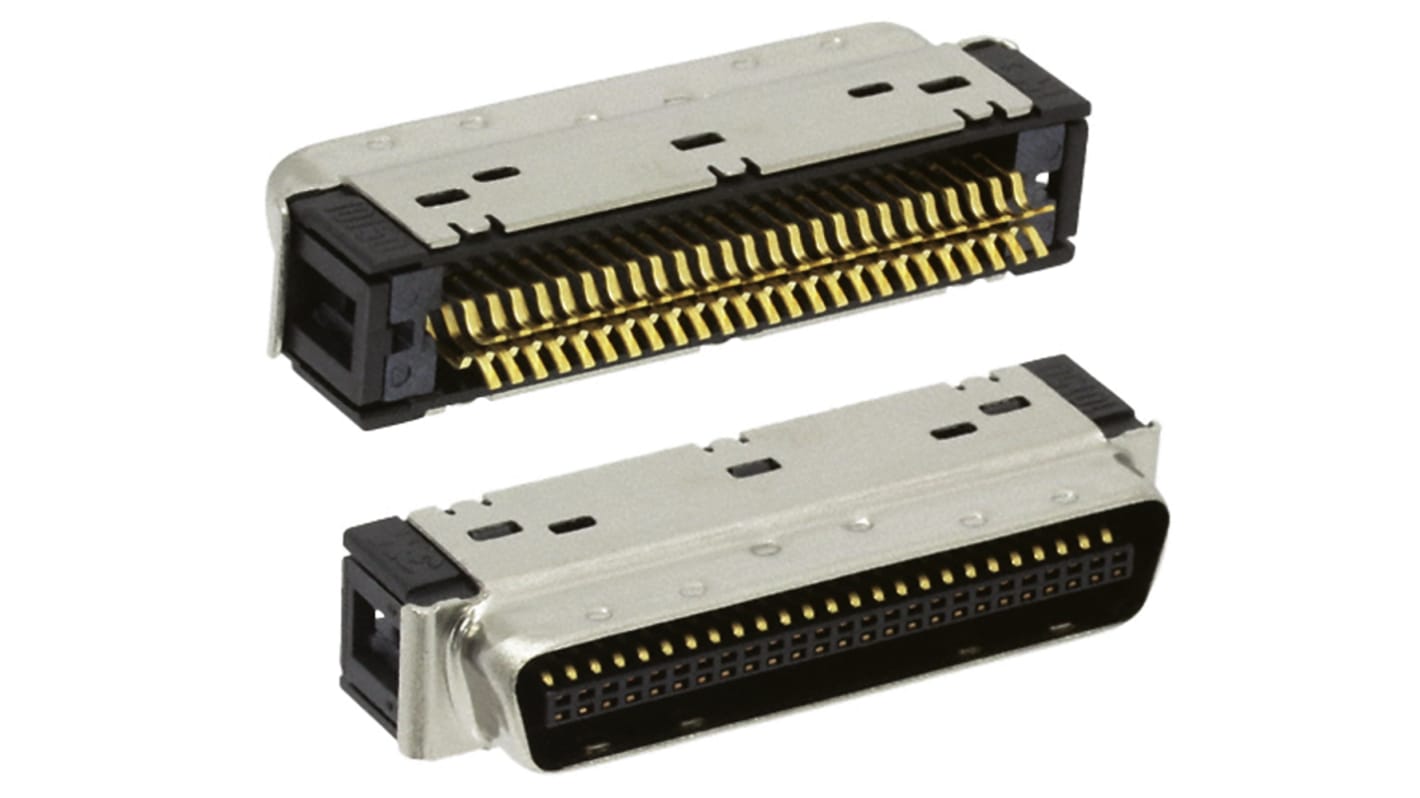

3M 101 50 Way Straddle Mount D-sub Connector Plug, 1.27mm Pitch
- RS Stock No.:
- 828-2070
- Mfr. Part No.:
- 10150-900APL
- Brand:
- 3M
Stock information currently inaccessible
- RS Stock No.:
- 828-2070
- Mfr. Part No.:
- 10150-900APL
- Brand:
- 3M
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | 3M | |
| Number of Contacts | 50 | |
| Gender | Male | |
| Body Orientation | Straight | |
| Mounting Type | Straddle Mount | |
| Pitch | 1.27mm | |
| Current Rating | 1.0A | |
| Housing Material | PCT | |
| Length | 41.1mm | |
| Width | 12.7mm | |
| Depth | 9.1mm | |
| Contact Plating | Gold | |
| Dimensions | 41.1 x 12.7 x 9.1mm | |
| Series | 101 | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -20.0°C | |
| Maximum Operating Temperature | +85°C | |
| Select all | ||
|---|---|---|
Brand 3M | ||
Number of Contacts 50 | ||
Gender Male | ||
Body Orientation Straight | ||
Mounting Type Straddle Mount | ||
Pitch 1.27mm | ||
Current Rating 1.0A | ||
Housing Material PCT | ||
Length 41.1mm | ||
Width 12.7mm | ||
Depth 9.1mm | ||
Contact Plating Gold | ||
Dimensions 41.1 x 12.7 x 9.1mm | ||
Series 101 | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -20.0°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- JP
