Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	3M
	Number of Contacts	15
	Gender	Male
	Body Orientation	Right Angle
	Mounting Type	Cable Mount
	Pitch	1.27mm
	Termination Method	IDC
	Current Rating	1.0A
	Housing Material	PBT
	Length	39.2mm
	Width	16.5mm
	Depth	12.4mm
	Contact Plating	Gold over Nickel
	Dimensions	39.2 x 16.5 x 12.4mm
	Series	8200
	Contact Material	Copper Alloy
	Maximum Operating Temperature	+105°C
	Minimum Operating Temperature	-55.0°C

	Select all
	Brand 3M
	Number of Contacts 15
	Gender Male
	Body Orientation Right Angle
	Mounting Type Cable Mount
	Pitch 1.27mm
	Termination Method IDC
	Current Rating 1.0A
	Housing Material PBT
	Length 39.2mm
	Width 16.5mm
	Depth 12.4mm
	Contact Plating Gold over Nickel
	Dimensions 39.2 x 16.5 x 12.4mm
	Series 8200
	Contact Material Copper Alloy
	Maximum Operating Temperature +105°C
	Minimum Operating Temperature -55.0°C

Datasheet

COO (Country of Origin):: DE

Class II D Metal Shell Connectors

From 3M, these metal shell d-sub conenctors are ideal where heavy duty conenctions are required in challenging environments.

Features and Benefits

• Cable mounting D connectors designed for Class II performance
• Tin plated with dimples for excellent grounding
• Robust metal shell

For Use With:

• For tooling see stock nos. 120-6962 and 192-7748
• These connectors are particularly suitable for use with the 3M colour-coded ribbon cable stock no. 120-8485 (example, 9 pole)

• Strain Relief has to be ordered separately see
• 121-2816 is a strain relief for 9 way d-sub connectors
• 121-2822 is a strain relief for 15 way d-sub connectors
• 121-2838 is a strain relief for 25 way d-sub connectors
• 121-2844 is a strain relief for 37 way d-sub connectors
• 121-2850 is a strain relief for 50 way d-sub connectors

What are D-Sub Connectors Used For?

D-sub connectors are used in a variety of electronics applications, and are frequently found in heavy duty computing systems such as in hospital equipment and industrial computers. They are also common in personal and office computing systems.

They are a robust connector that offer a secure connection, meaning they are suitable for use in more challenging environments.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Note

XXXX-XXX0 part numbers have a Ø3.05 mm flange hole
XXXX-XXX5 part numbers have a #4-40 UNC threaded flange.
XXXX-XXX9 part numbers have a rivet crimp flange

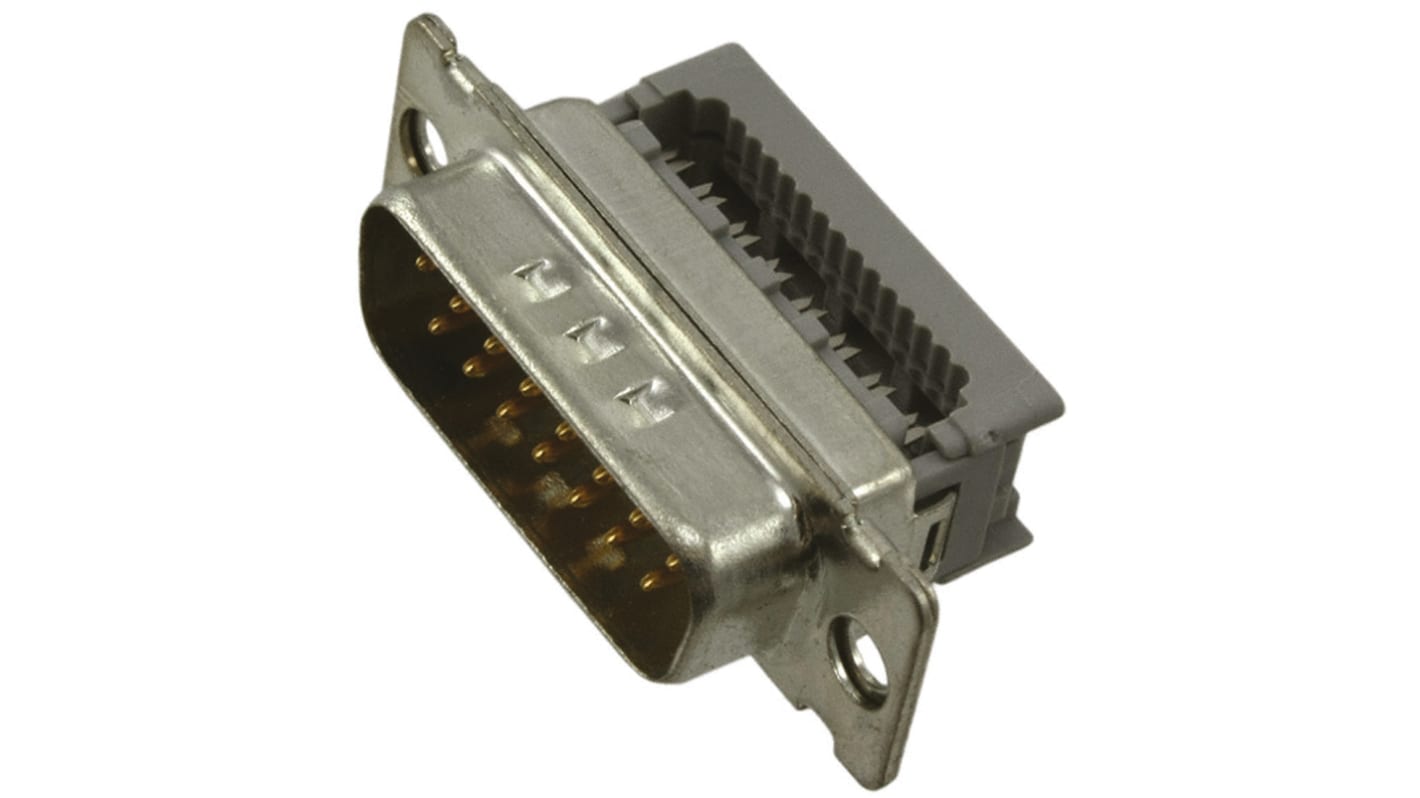

3M 8200 15 Way Right Angle Cable Mount D-sub Connector Plug, 1.27mm Pitch
