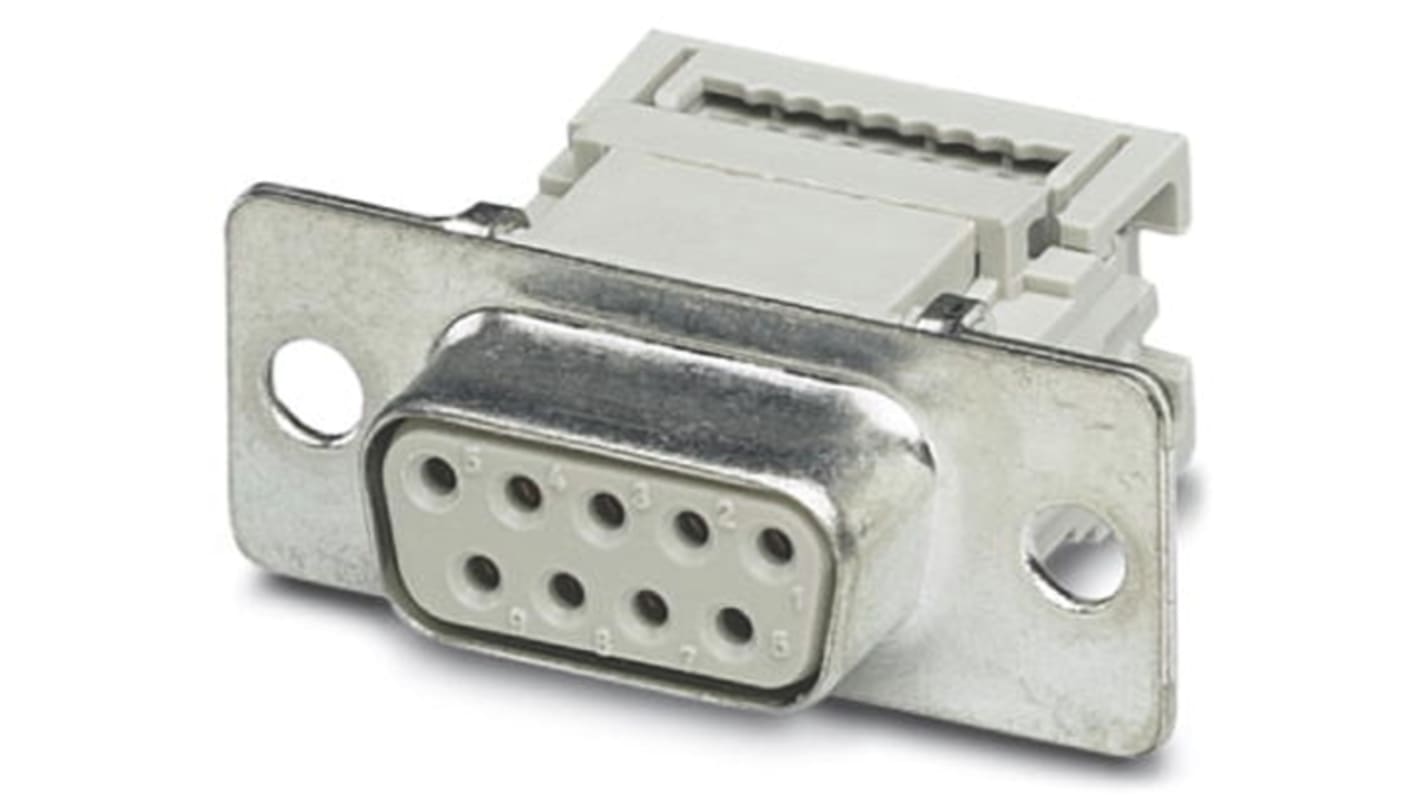

Phoenix Contact VS-09-BU-DSUB-FK 9 Way Panel Mount D-sub Connector Socket
- RS Stock No.:
- 802-7747
- Mfr. Part No.:
- 1688829
- Brand:
- Phoenix Contact
Bulk discount available
Subtotal (1 unit)*
£11.15
(exc. VAT)
£13.38
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 20 unit(s) shipping from 06 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £11.15 |
| 10 - 24 | £9.49 |
| 25 - 49 | £8.36 |
| 50 - 74 | £7.25 |
| 75 + | £6.69 |
*price indicative
- RS Stock No.:
- 802-7747
- Mfr. Part No.:
- 1688829
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Contacts | 9 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Panel Mount | |
| D Connector Type | Standard D-Sub | |
| Termination Method | Solder | |
| D-Sub Shell Size | E | |
| Current Rating | 5.0A | |
| Housing Material | Steel | |
| Voltage Rating | 125.0 V | |
| Length | 31.19mm | |
| Width | 12.93mm | |
| Depth | 23.2mm | |
| Contact Plating | Gold over Nickel | |
| Series | VS-09-BU-DSUB-FK | |
| Dimensions | 31.19 x 12.93 x 23.2mm | |
| Contact Material | Copper Alloy | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -55.0°C | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Contacts 9 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Panel Mount | ||
D Connector Type Standard D-Sub | ||
Termination Method Solder | ||
D-Sub Shell Size E | ||
Current Rating 5.0A | ||
Housing Material Steel | ||
Voltage Rating 125.0 V | ||
Length 31.19mm | ||
Width 12.93mm | ||
Depth 23.2mm | ||
Contact Plating Gold over Nickel | ||
Series VS-09-BU-DSUB-FK | ||
Dimensions 31.19 x 12.93 x 23.2mm | ||
Contact Material Copper Alloy | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55.0°C | ||
D-Sub - Connector Accessories
Professional range of Phoenix Contact D-Sub connectors and accessories from the VS series. Various accessories include mouting frames, cap nuts and protective covers.
Crimp or Solder pins
Various positions available
Various positions available
