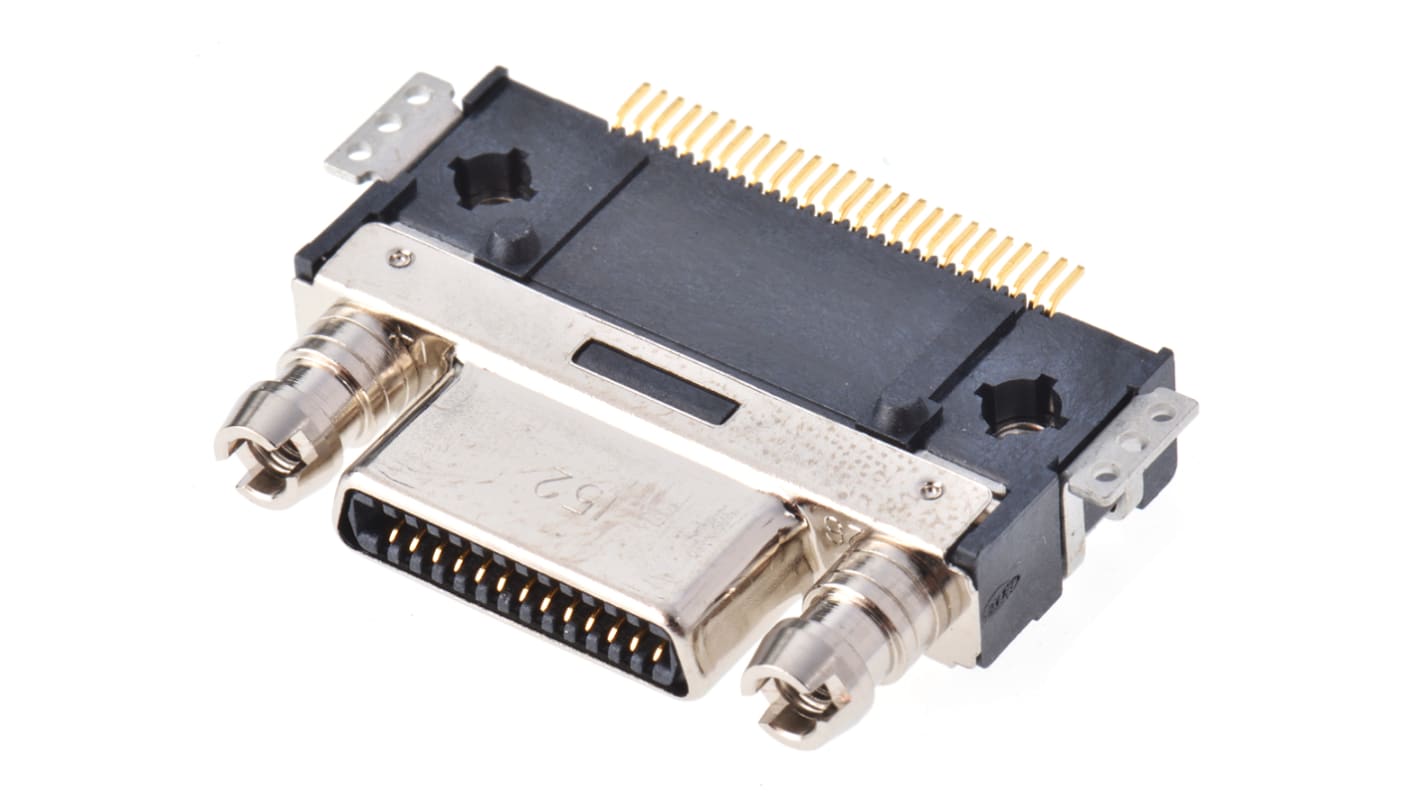

3M SDR 122 26 Way Right Angle SMT Micro-D PCB Connector Socket, 0.8mm Pitch
- RS Stock No.:
- 770-9206
- Mfr. Part No.:
- 12226-8250-00FR
- Brand:
- 3M
Discontinued product
- RS Stock No.:
- 770-9206
- Mfr. Part No.:
- 12226-8250-00FR
- Brand:
- 3M
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Shrunk Delta Ribbon (SDR) Connectors
These 3M 122 Series Shrunk D Ribbon (SDR) Boardmount Shielded Receptacles have a low profile 0.8 mm pitch. The design of these 122 Series Shrunk D Ribbon (SDR) Boardmount Shielded Receptacles includes provision for M2 Jacksocket screws available separately, see below, or factory installed for stock numbers: 770-9209 and 770-9206 .
Jacksocket Screws:
122xx-xx5x-xxxx: Non-removable M2 Screw Jacks installed
122xx-xxxx-xxFR: 0.76 μm Gold plating on contact area and Gold Flash on solder Tails
122xx-xxxx-xxPL: 0.2 μm Gold plating on contact area and Gold Flash on solder Tails
122xx-xxxx-xxFR: 0.76 μm Gold plating on contact area and Gold Flash on solder Tails
122xx-xxxx-xxPL: 0.2 μm Gold plating on contact area and Gold Flash on solder Tails
![](https://media.rs-online.com/t_line/L299458-01.gif)
Shrunk Delta Ribbon (SDR)
The Shrunk Delta Ribbon Connector (SDR) solution uses the same ribbon contact system and polarized steel shell interface as used in MDR connectors but in a compact 0.8 mm pitch package without sacrificing transmission performance. The SDR connectors can be used to directly replace existing MDR Camera Link® applications.
Specifications
Attribute | Value |
---|---|
Number of Contacts | 26 |
Gender | Female |
Body Orientation | Right Angle |
Mounting Type | Surface Mount |
Pitch | 0.8mm |
Current Rating | 500mA |
Length | 24.8mm |
Width | 16.7mm |
Depth | 5mm |
Contact Plating | Gold over Nickel |
Contact Material | Copper Alloy |
Dimensions | 24.8 x 16.7 x 5mm |
Series | SDR 122 |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | +70°C |
