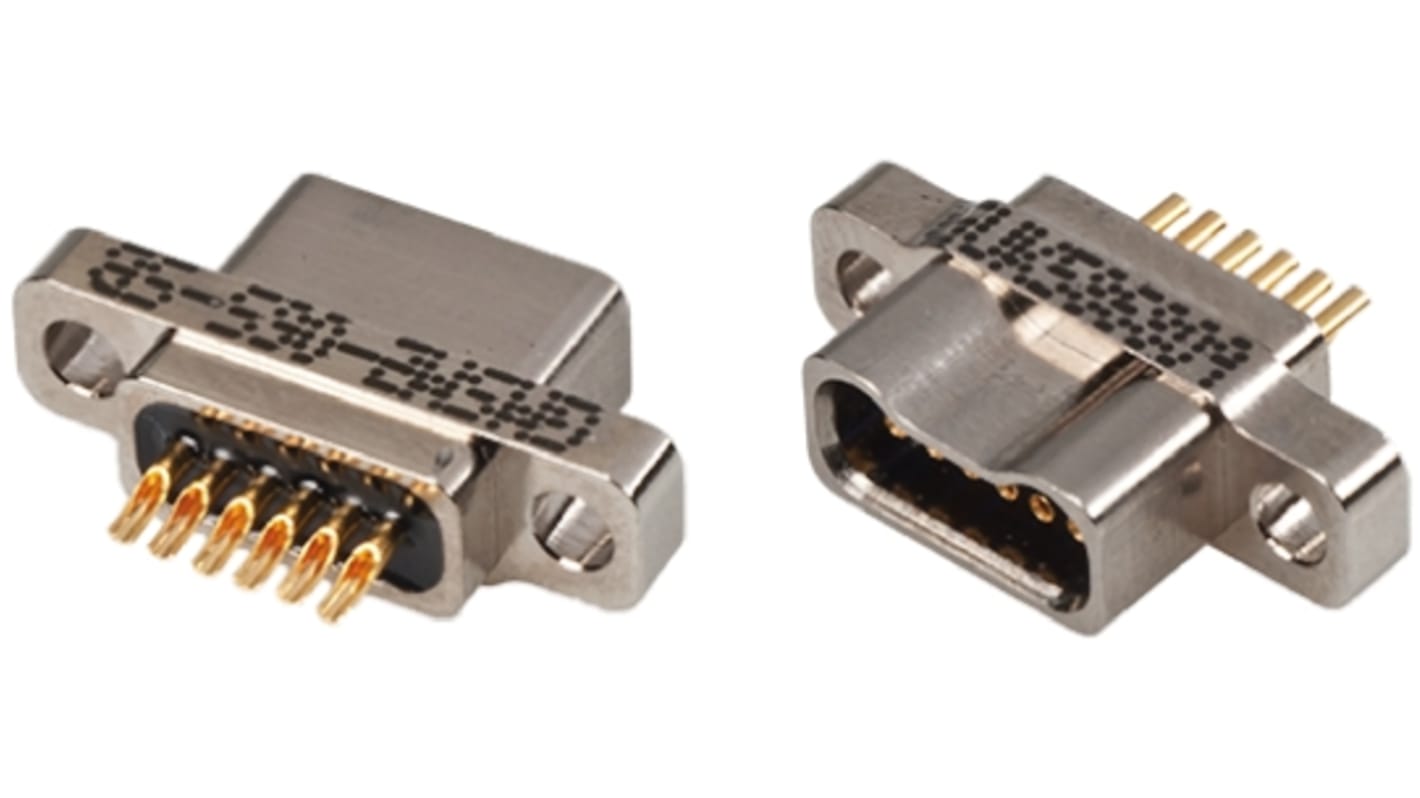

Glenair GMSM 6 Way Through Hole D-sub Connector Socket

View all D Sub Connectors
Bulk discount available

Subtotal (1 unit)*

£86.50

(exc. VAT)

£103.80

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 8 unit(s) shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 24£86.50
25 - 74£77.86
75 - 199£70.93
200 - 399£64.87
400 +£60.55

*price indicative

D-Sub-Backshells
D Sub Backshells
Don't forget D Sub Backshells!
Shop D Sub Backshells now
RS Stock No.:
719-3039
Mfr. Part No.:
GMSM2-6SSB
Brand:
Glenair
Find similar products by selecting one or more attributes.
Select all

Brand

Glenair

Number of Contacts

6

Gender

Female

Body Orientation

Straight

Mounting Type

Through Hole

D Connector Type

Micro-D

Termination Method

Solder

Housing Material

Aluminium

Length

19.0mm

Width

9.4mm

Depth

5.54mm

Contact Plating

Gold

Series

GMSM

Dimensions

19 x 9.4 x 5.54mm

COO (Country of Origin):
GB

Glenair Micro D Connectors Single Row, Low Profile, Solder Cup, GMSM Series


Glenair micro D single row connectors are manufactured in accordance to MIL-DTL-83513 and offer high performance, excellent temperature resistance and durability in a smaller form factor than standard Glenair Micro D connectors, whilst retaining all of the key benefits. These single row Micro D connectors are reduced in height compared to two-row Micro-D connectors and are suited for connector applications with limited available space.

Nickel plated connector shell with through hole for desired hardware
Gold plated Twistpin contacts rated at 3 Amps
Machined aluminium connector shells, fully potted with epoxy
Socket connectors have fluorosilicone interfacial seals
Dielectric withstand voltage 600 Vac Sea level, 150 Vac (70,000 ft)
Connector mating force (10 Ounces) x (# of Contacts)

Standards

MIL-DTL-83513
