- RS Stock No.:
- 670-4486
- Mfr. Part No.:
- 74320-9004
- Brand:
- Molex
Available to back order for despatch 29/10/2024
Added
Price Each (In a Pack of 5)
£4.606
(exc. VAT)
£5.527
(inc. VAT)
Units | Per unit | Per Pack* |
5 - 120 | £4.606 | £23.03 |
125 - 370 | £3.236 | £16.18 |
375 - 995 | £2.96 | £14.80 |
1000 - 1995 | £2.63 | £13.15 |
2000 + | £2.524 | £12.62 |
*price indicative |
- RS Stock No.:
- 670-4486
- Mfr. Part No.:
- 74320-9004
- Brand:
- Molex
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

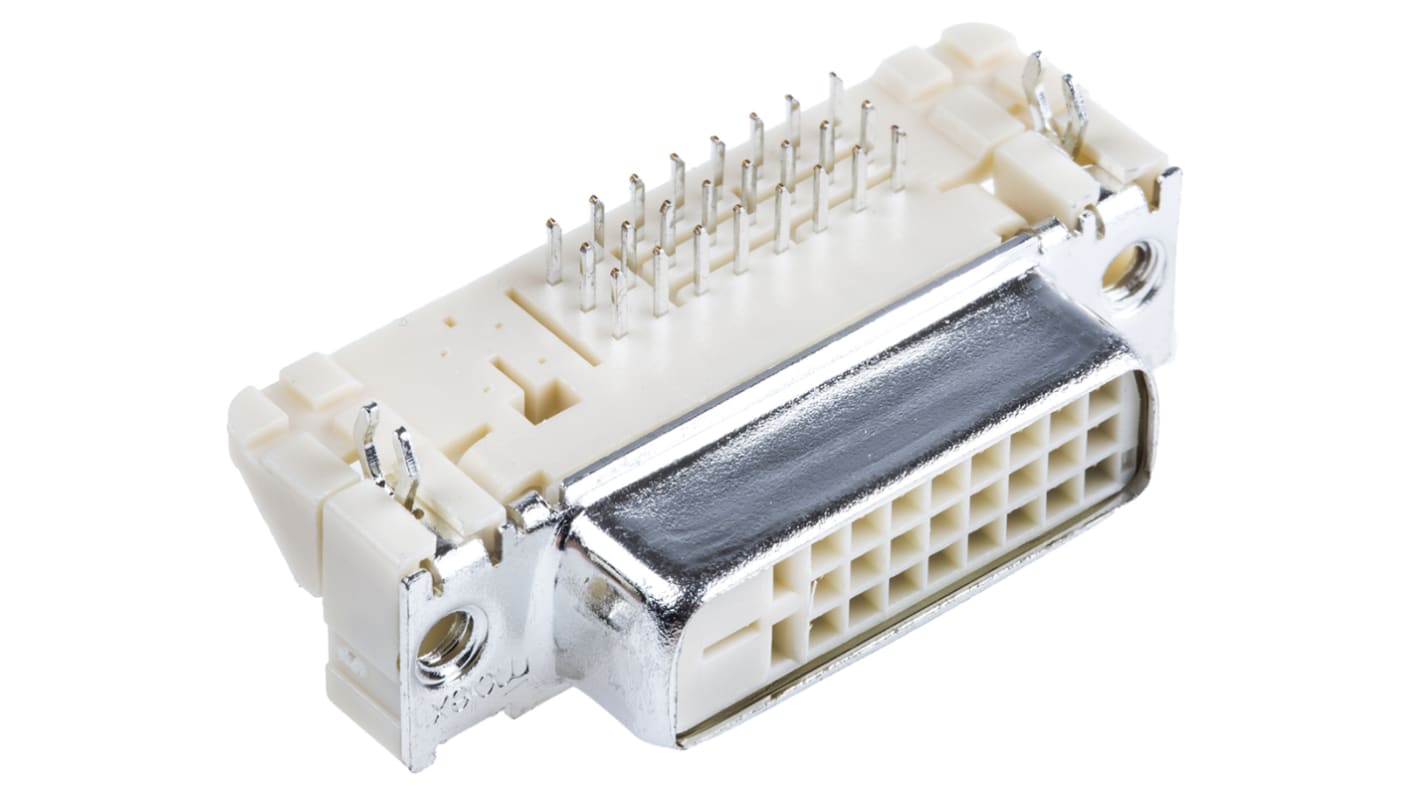

Wire to Board Receptacles, 74320 Series
Molex's 74320 series of MicroCross™ DVI Connectors and Cable Assemblies are based on an innovative use of "crossing" ground blades to provide high-speed electrical performance, MicroCross™ DVI interconnects support digital and/or analog video functions in one connector system.
Mate with 74323 Series connectors and 88741 Series cable assembles.
Mate with 74323 Series connectors and 88741 Series cable assembles.
Molex DVI I/O Connectors (MicroCross)
Specifications
Attribute | Value |
---|---|
Number of Contacts | 24 |
Gender | Female |
Body Orientation | Right Angle |
Mounting Type | Through Hole |
Pitch | 1.91mm |
Termination Method | Solder |
Current Rating | 3A |
Housing Material | Thermoplastic |
Voltage Rating | 40.0 V |
Length | 36.83mm |
Width | 9.91mm |
Depth | 18.03mm |
Contact Material | Copper Alloy |
Contact Plating | Gold over Nickel |
Series | MicroCross 74320 |
Dimensions | 36.83 x 9.91 x 18.03mm |
Minimum Operating Temperature | -20.0°C |
Maximum Operating Temperature | +85°C |
Series Number | 74320 |
