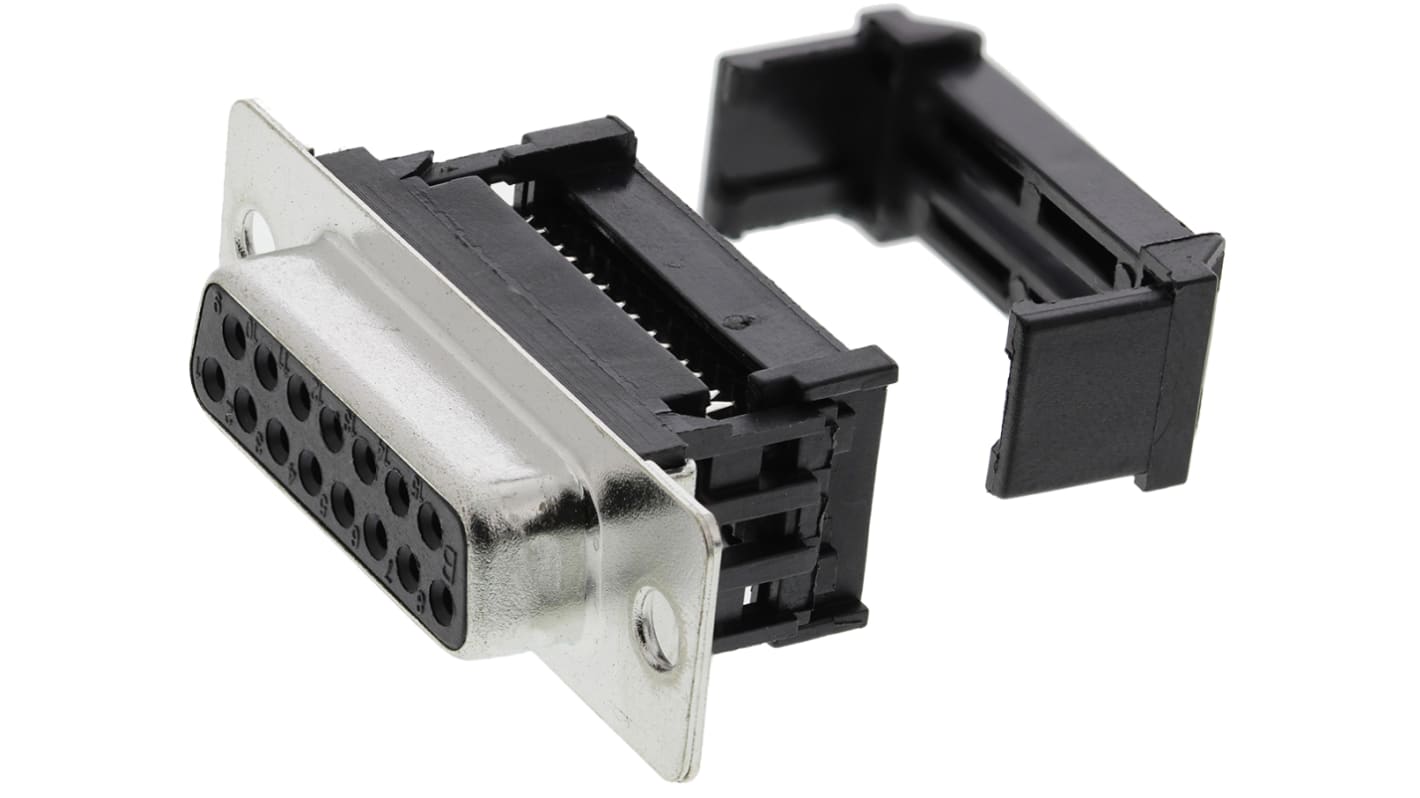

RS PRO 15 Way Cable Mount D-sub Connector Socket, 1.27mm Pitch
- RS Stock No.:
- 642-4890
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£4.57
(exc. VAT)
£5.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 527 unit(s) ready to ship
- Plus 141 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £4.57 |
| 15 - 99 | £4.16 |
| 100 - 249 | £3.82 |
| 250 - 499 | £3.55 |
| 500 + | £3.44 |
*price indicative
- RS Stock No.:
- 642-4890
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Contacts | 15 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Cable Mount | |
| Pitch | 1.27mm | |
| D Connector Type | Standard D-Sub | |
| Termination Method | IDC | |
| Current Rating | 1A | |
| Housing Material | Metal | |
| Voltage Rating | 250V | |
| Length | 39.2mm | |
| Width | 17.58mm | |
| Depth | 12.55mm | |
| Contact Plating | Gold | |
| Dimensions | 39.2 x 17.58 x 12.55mm | |
| Contact Material | Copper Alloy | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +105°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Contacts 15 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Cable Mount | ||
Pitch 1.27mm | ||
D Connector Type Standard D-Sub | ||
Termination Method IDC | ||
Current Rating 1A | ||
Housing Material Metal | ||
Voltage Rating 250V | ||
Length 39.2mm | ||
Width 17.58mm | ||
Depth 12.55mm | ||
Contact Plating Gold | ||
Dimensions 39.2 x 17.58 x 12.55mm | ||
Contact Material Copper Alloy | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +105°C | ||
- COO (Country of Origin):
- CN
Low Profile Metal Body
0.8μm selective gold plated pins
