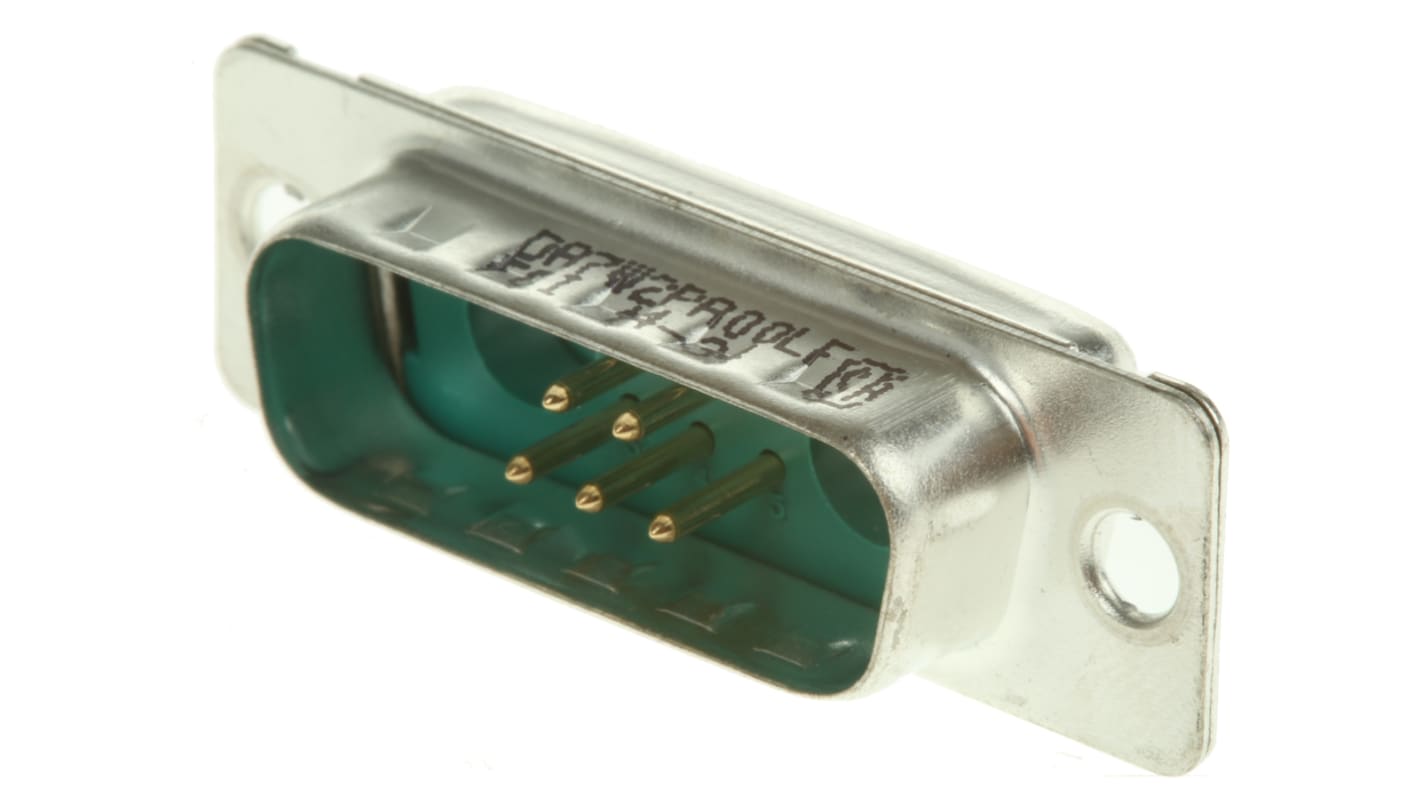

Amphenol Communications Solutions DW 7 Way Panel Mount D-sub Connector Plug
- RS Stock No.:
- 542-7444
- Mfr. Part No.:
- DA7W2PA00LF
- Brand:
- Amphenol Communications Solutions
Bulk discount available
Subtotal (1 unit)*
£5.35
(exc. VAT)
£6.42
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 133 unit(s) ready to ship
- Plus 74 unit(s) ready to ship from another location
- Plus 571 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £5.35 |
| 10 + | £5.14 |
*price indicative
- RS Stock No.:
- 542-7444
- Mfr. Part No.:
- DA7W2PA00LF
- Brand:
- Amphenol Communications Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Communications Solutions | |
| Number of Contacts | 7 | |
| Gender | Male | |
| Body Orientation | Straight | |
| Mounting Type | Panel Mount | |
| D Connector Type | Mixed Contact D-Sub | |
| D-Sub Shell Size | A | |
| Termination Method | Solder | |
| Current Rating | 7.5A | |
| Mixed Contact Layout | 7W2 | |
| Housing Material | Steel | |
| Length | 38.76mm | |
| Width | 12.55mm | |
| Depth | 13.29mm | |
| Dimensions | 38.76 x 12.55 x 13.29mm | |
| Contact Plating | Gold over Nickel | |
| Contact Material | Brass | |
| Series | DW | |
| Minimum Operating Temperature | -55.0°C | |
| Maximum Operating Temperature | +125°C | |
Select all | ||
|---|---|---|
Brand Amphenol Communications Solutions | ||
Number of Contacts 7 | ||
Gender Male | ||
Body Orientation Straight | ||
Mounting Type Panel Mount | ||
D Connector Type Mixed Contact D-Sub | ||
D-Sub Shell Size A | ||
Termination Method Solder | ||
Current Rating 7.5A | ||
Mixed Contact Layout 7W2 | ||
Housing Material Steel | ||
Length 38.76mm | ||
Width 12.55mm | ||
Depth 13.29mm | ||
Dimensions 38.76 x 12.55 x 13.29mm | ||
Contact Plating Gold over Nickel | ||
Contact Material Brass | ||
Series DW | ||
Minimum Operating Temperature -55.0°C | ||
Maximum Operating Temperature +125°C | ||
Plug & Socket Shells - DW Series
DW series of mixed power and signal contacts has been specially designed for industrial and telecom markets
Mixed contacts for soldering on to cable
Contacts for currents of 10A to 40A should be ordered separately
These connectors are not provided with accessories
Mixed contacts for soldering on to cable
Contacts for currents of 10A to 40A should be ordered separately
These connectors are not provided with accessories
Standards
NFC 93425 HE507
Mixed Contact 'D'
Mixed contact connectors suitable for making combined signal and power connections. Plug and socket options with solder bucket or 90° PCB terminations. Shell definition: 17W2 shell can have 17 mixed contacts in total. Shell is supplied with 15 signal contacts and has 2 cavities for power or coaxial contacts. Suitable for military, industrial or commercial applications and computer interfacing etc
