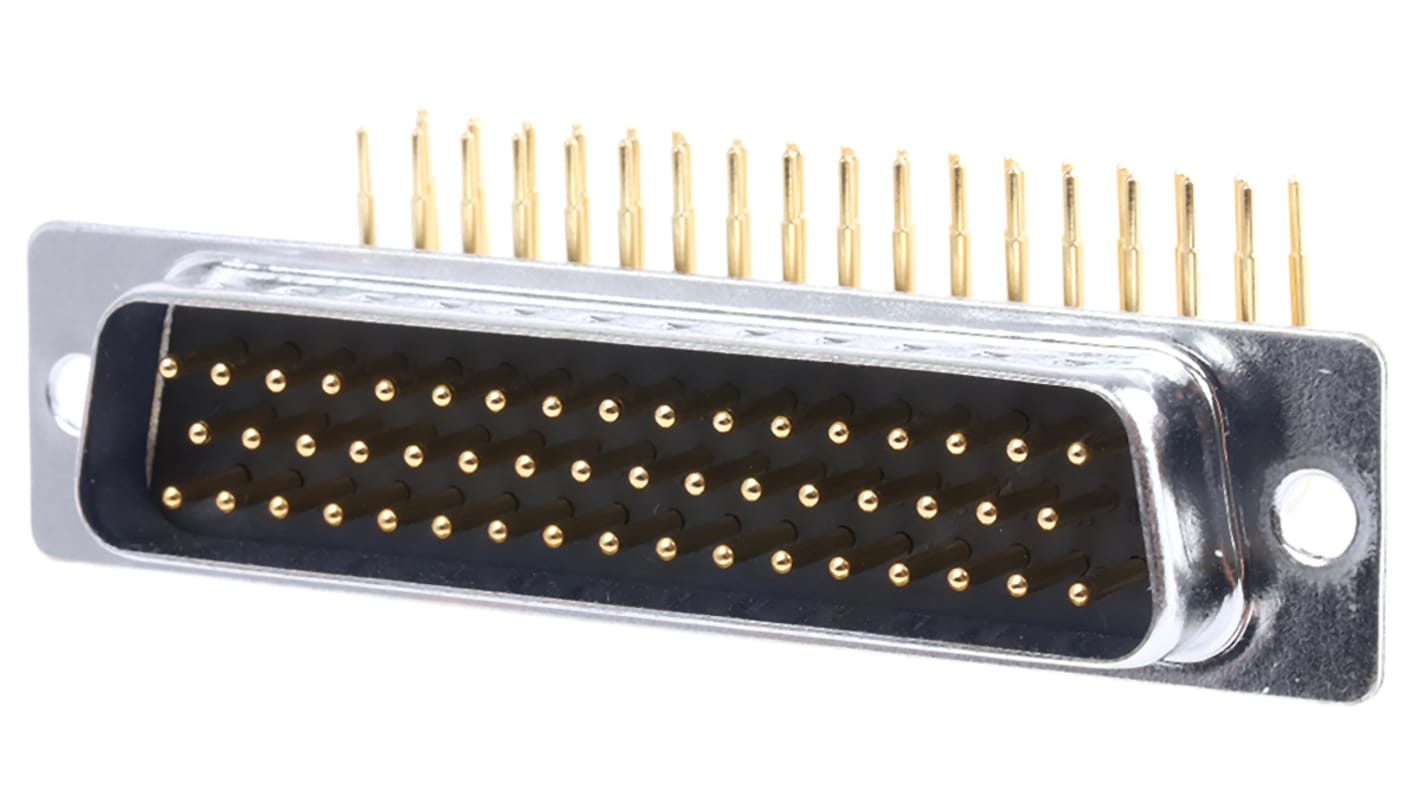

RS PRO 50 Way Right Angle Through Hole D-sub Connector Plug, 2.77mm Pitch
- RS Stock No.:
- 528-3698
- Brand:
- RS PRO
245 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£14.532
(exc. VAT)
£17.438
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 120 | £14.532 | £72.66 |
| 125 - 370 | £13.078 | £65.39 |
| 375 - 995 | £11.61 | £58.05 |
| 1000 - 1995 | £10.172 | £50.86 |
| 2000 + | £9.448 | £47.24 |
| *price indicative | ||
- RS Stock No.:
- 528-3698
- Brand:
- RS PRO
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
90 deg PCB Plug & Socket
Connectors with machined contacts
With dimpled plug shels for reliable grounding
With dimpled plug shels for reliable grounding
Note
The current rating for the PCB variants is 5A
Standards
HE502-MIL-C-24308
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 50 |
| Gender | Male |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Pitch | 2.77mm |
| Termination Method | Solder |
| Current Rating | 5.0A |
| Housing Material | Steel |
| Voltage Rating | 250.0 V |
| Length | 66.9mm |
| Width | 4.1mm |
| Depth | 15.35mm |
| Contact Material | Copper Alloy |
| Dimensions | 66.9 x 4.1 x 15.35mm |
| Contact Plating | Gold over Nickel |
| Minimum Operating Temperature | -55.0°C |
| Series Number | 528 |
| Maximum Operating Temperature | +125°C |
