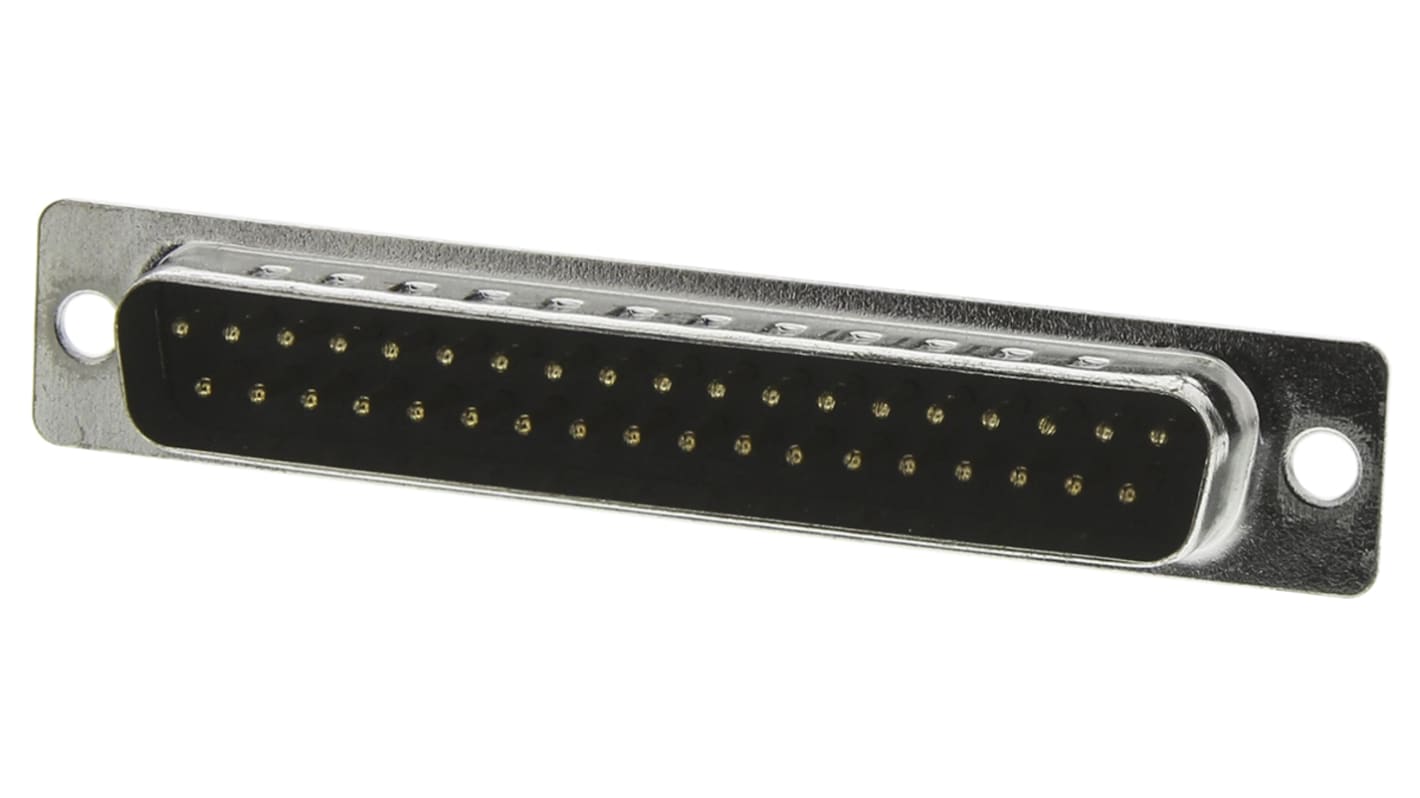

ITT Cannon ZDF 37 Way Straight 2.77 mm Pitch Panel Mount D-Sub Connector, with Panel, Cable Male
- RS Stock No.:
- 375-2243
- Mfr. Part No.:
- 119998-2833
- Brand:
- ITT Cannon
Bulk discount available
Subtotal (1 pack of 5 units)*
£22.26
(exc. VAT)
£26.71
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 375 unit(s) ready to ship
- Plus 45 unit(s) ready to ship from another location
- Plus 2,395 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £4.452 | £22.26 |
| 50 - 245 | £4.006 | £20.03 |
| 250 - 495 | £3.606 | £18.03 |
| 500 - 1245 | £3.246 | £16.23 |
| 1250 + | £2.92 | £14.60 |
*price indicative
- RS Stock No.:
- 375-2243
- Mfr. Part No.:
- 119998-2833
- Brand:
- ITT Cannon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ITT Cannon | |
| Number of Contacts | 37 | |
| Product Type | D-Sub Connector | |
| Current | 5A | |
| Orientation | Straight | |
| Mount Type | Panel Mount | |
| Connector Gender | Male | |
| Connector Type D | D-Sub | |
| D-Sub Shell Size | C | |
| Mounting Hardware | Panel, Cable | |
| Housing Material | Steel | |
| Voltage | 400V | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Contact Material | Brass | |
| Series | ZDF | |
| Contact Plating | Gold over Nickel | |
| Pitch | 2.77mm | |
| Select all | ||
|---|---|---|
Brand ITT Cannon | ||
Number of Contacts 37 | ||
Product Type D-Sub Connector | ||
Current 5A | ||
Orientation Straight | ||
Mount Type Panel Mount | ||
Connector Gender Male | ||
Connector Type D D-Sub | ||
D-Sub Shell Size C | ||
Mounting Hardware Panel, Cable | ||
Housing Material Steel | ||
Voltage 400V | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Contact Material Brass | ||
Series ZDF | ||
Contact Plating Gold over Nickel | ||
Pitch 2.77mm | ||
ITT ZD Connectors
Stamped and formed contacts
Solder bucket terminals
''Closed entry'' technology, guaranteeing secure and reliable connections.
The performance of these connectors makes them particularly suitable for industrial applications, information technology, telecommunications, medical apparatus etc
ITT D Type Connectors
Suitable for military, industrial or commercial applications and computer interfacing etc.
