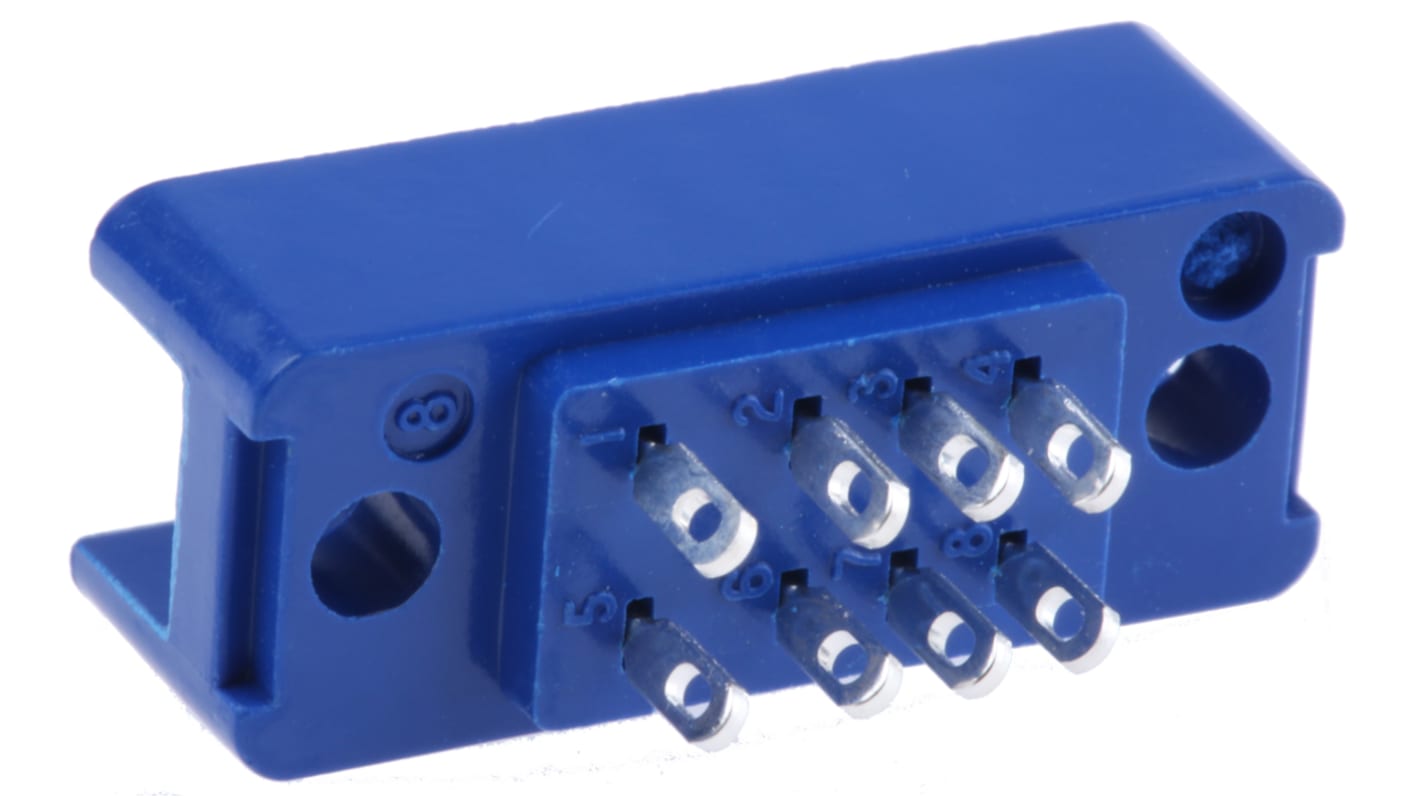

Hirose 1600 8 Way Cable Mount D-sub Connector Socket, 2.5mm Pitch
- RS Stock No.:
- 322-0746
- Mfr. Part No.:
- S-1608A(09)
- Brand:
- Hirose
612 In stock - FREE next working day delivery available
Added
Price Each
£2.93
(exc. VAT)
£3.52
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £2.93 |
| 25 - 74 | £2.46 |
| 75 - 199 | £2.34 |
| 200 - 399 | £2.22 |
| 400 + | £2.08 |
- RS Stock No.:
- 322-0746
- Mfr. Part No.:
- S-1608A(09)
- Brand:
- Hirose
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- JP
Product Details
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 8 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Pitch | 2.5mm |
| Termination Method | Solder |
| Current Rating | 3A |
| Housing Material | DAP |
| Voltage Rating | 300 V ac |
| Length | 25mm |
| Width | 25mm |
| Depth | 10mm |
| Contact Material | Phosphor Bronze |
| Contact Plating | Silver |
| Series | 1600 |
| Dimensions | 25 x 10 x 13.5mm |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -30°C |
