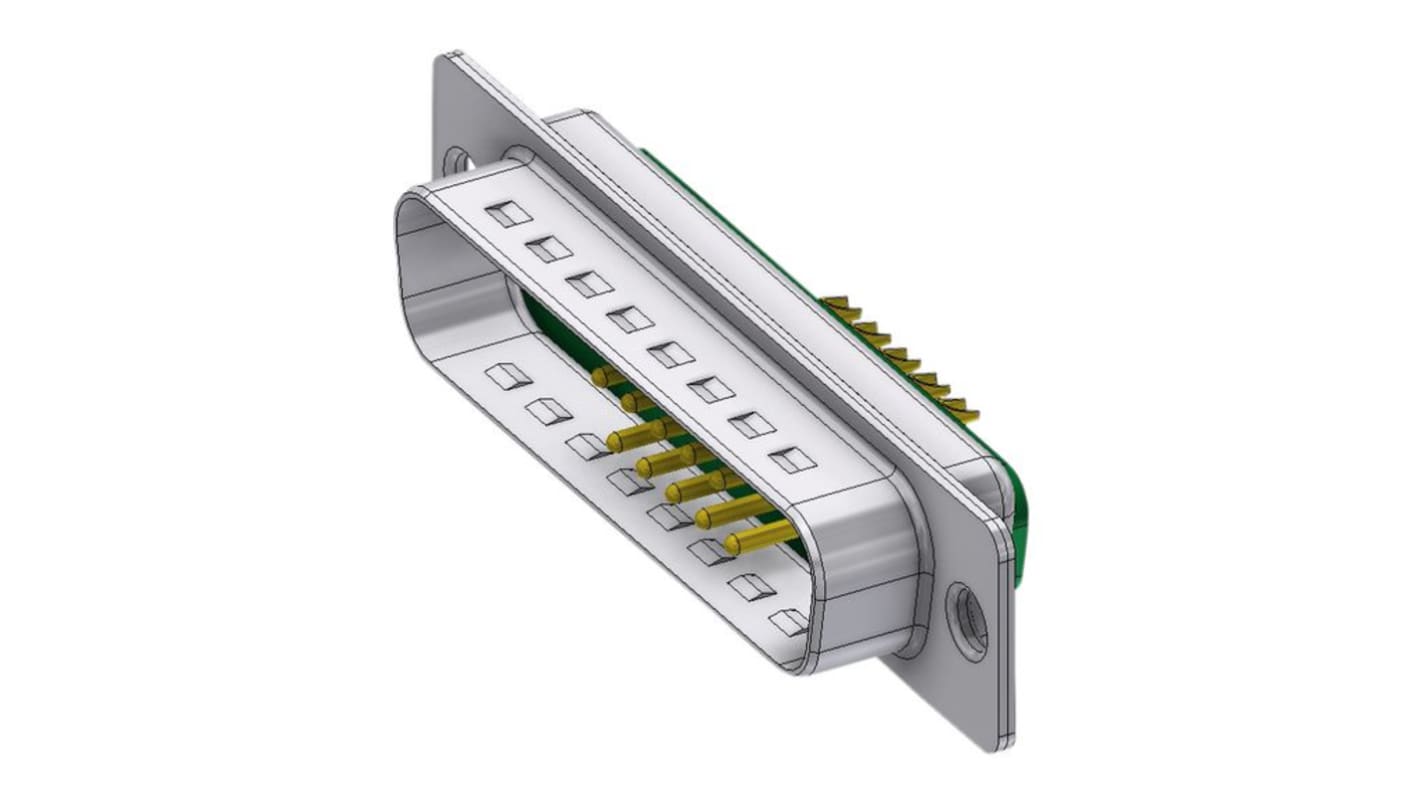

Deltron Connectors DTS 13 Way Straight Cable D-Sub Connector Male
- RS Stock No.:
- 283-5793
- Distrelec Article No.:
- 144-17-202
- Mfr. Part No.:
- DTS13W3PZ/2
- Brand:
- Deltron Connectors
Subtotal (1 unit)*
£4.97
(exc. VAT)
£5.96
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 83 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £4.97 |
*price indicative
- RS Stock No.:
- 283-5793
- Distrelec Article No.:
- 144-17-202
- Mfr. Part No.:
- DTS13W3PZ/2
- Brand:
- Deltron Connectors
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Deltron Connectors | |
| Number of Contacts | 13 | |
| Product Type | D-Sub Connector | |
| Orientation | Straight | |
| Current | 7.5A | |
| Mount Type | Cable | |
| Connector Gender | Male | |
| Housing Material | Steel | |
| Voltage | 125V | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder Lug | |
| Maximum Operating Temperature | 125°C | |
| Contact Gender | Male | |
| Standards/Approvals | No | |
| Series | DTS | |
| Contact Plating | Gold | |
| Contact Material | Copper Nickel | |
| Select all | ||
|---|---|---|
Brand Deltron Connectors | ||
Number of Contacts 13 | ||
Product Type D-Sub Connector | ||
Orientation Straight | ||
Current 7.5A | ||
Mount Type Cable | ||
Connector Gender Male | ||
Housing Material Steel | ||
Voltage 125V | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder Lug | ||
Maximum Operating Temperature 125°C | ||
Contact Gender Male | ||
Standards/Approvals No | ||
Series DTS | ||
Contact Plating Gold | ||
Contact Material Copper Nickel | ||
- COO (Country of Origin):
- CH
The connector is a high-quality product designed to meet user's electronic connectivity needs. With RoHS compliance and a working voltage of 125V, this connector ensures safe and reliable performance for user's applications. The machined copper alloy contacts and steel tin-plated shell provide durable construction for long-lasting use.
Machined copper alloy contacts for durability
Steel tin-plated shell for long-lasting use
Insulation resistance of over 5G for safe operation
Temperature range of -55 to +125 C for versatile applications
