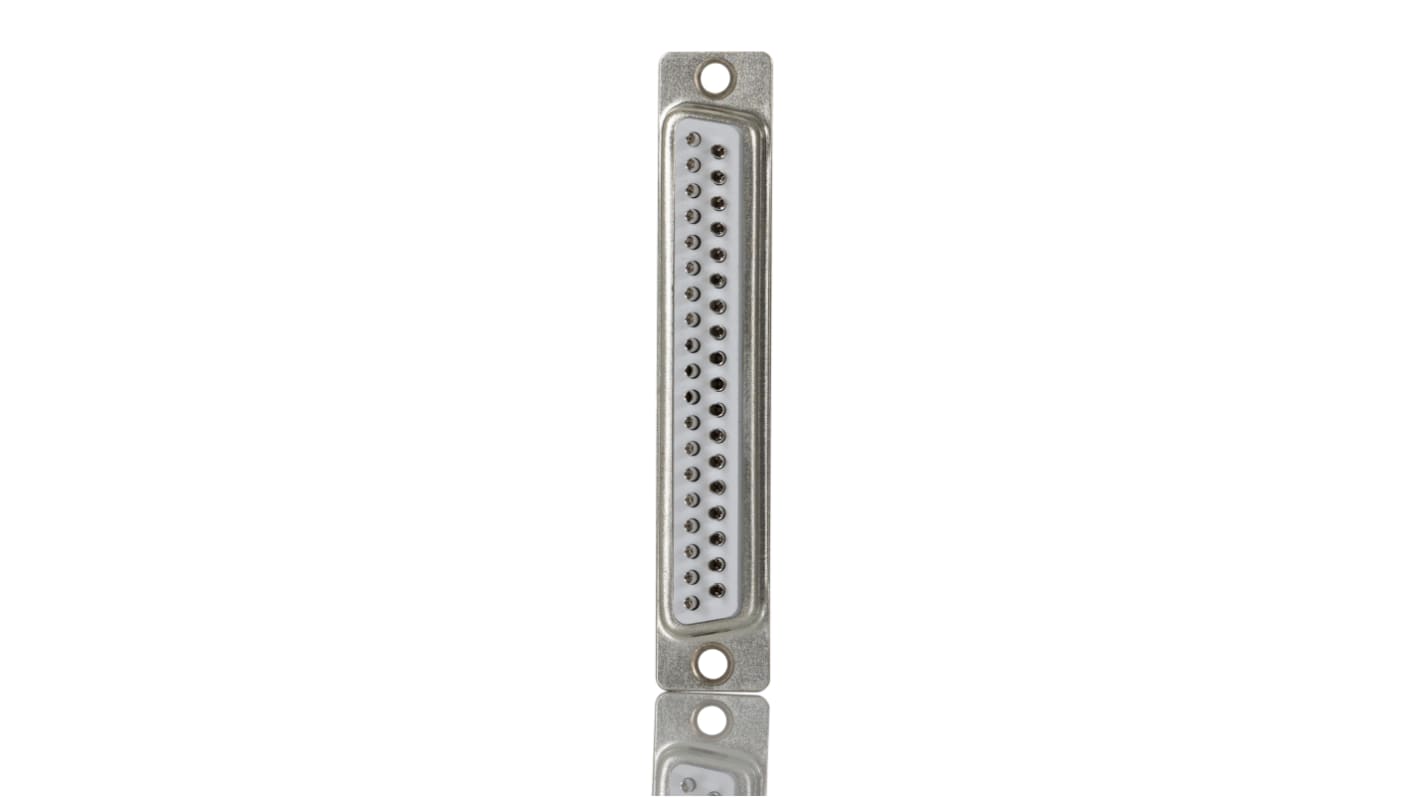

RS PRO 37 Way Panel Mount D-sub Connector Socket, 2.77mm Pitch, with Screw
- RS Stock No.:
- 246-9523
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 pack of 5 units)*
£11.84
(exc. VAT)
£14.21
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 610 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 20 | £2.368 | £11.84 |
25 - 45 | £2.296 | £11.48 |
50 - 120 | £2.204 | £11.02 |
125 + | £2.096 | £10.48 |
*price indicative
- RS Stock No.:
- 246-9523
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Contacts | 37 | |
Gender | Female | |
Body Orientation | Straight | |
Mounting Type | Panel Mount | |
Pitch | 2.77mm | |
D Connector Type | Standard D-Sub | |
Mounting Hardware | Screw | |
D-Sub Shell Size | C | |
Termination Method | Solder | |
Current Rating | 5.0A | |
Housing Material | Steel | |
Voltage Rating | 1.0 kV | |
Length | 69.4mm | |
Width | 12.55mm | |
Depth | 11mm | |
Contact Material | Brass | |
Contact Plating | Gold Flash | |
Dimensions | 69.4x12.55x11mm | |
Minimum Operating Temperature | -50°C | |
Maximum Operating Temperature | +105°C | |
Contact Size | 1.09mm | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Contacts 37 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Panel Mount | ||
Pitch 2.77mm | ||
D Connector Type Standard D-Sub | ||
Mounting Hardware Screw | ||
D-Sub Shell Size C | ||
Termination Method Solder | ||
Current Rating 5.0A | ||
Housing Material Steel | ||
Voltage Rating 1.0 kV | ||
Length 69.4mm | ||
Width 12.55mm | ||
Depth 11mm | ||
Contact Material Brass | ||
Contact Plating Gold Flash | ||
Dimensions 69.4x12.55x11mm | ||
Minimum Operating Temperature -50°C | ||
Maximum Operating Temperature +105°C | ||
Contact Size 1.09mm | ||
- COO (Country of Origin):
- CN
RS PRO 37 Way D-Sub Connector
The RS PRO durable D-Subminiature connector with a hard wearing robust steel shell. These D-sub connectors are ideal for use for making I/O (input/output) interconnections in a wide range of industrial and commercial applications.
What is a D-Sub Connector?
A D-Sub connector is a popular type of I/O (input/output) connects that is commonly used in the computer and datacoms industry to provide power and point-to-point communications between two devices such as a computer and a monitor. The d-sub contains two or more parallel rows of pins or sockets surrounded by a D-shaped metal shell which provides mechanical support and ensures the correct orientation is used when mating. These D-subs are available as female D-sub sockets (or d-sub receptacles) with female contacts or male D-sub plugs with male pin contacts. The socket style female connector mates with the plug style male connector. Please note that a D-sub with a plastic shell cannot be mated with a D-sub with a metal shell.
Features and Benefits
- Robust design
- Durable tin plated steel shell
- Good EMI/RFI protection
- Flanges with for mounting holes for screw mounting to a panel
Standards and Approvals: CE, ROHS
Applications
This d-sub connector with its robust design and high reliability can be used in communications and network ports in a wide range of industrial and commercial applications. Applications include the following:
- Computers, monitors and scanners
- Networking and communications equipment
- Data processing equipment
- Industrial equipment
- Test and measurement instrumentation
- Remote sensors and data loggers
- Portable electric generation equipment
How do you mount these connectors?
These D-subs are designed to be panel mounted. A hole is cut in the panel which is determined by the panel cut-out dimensions of the plug or socket. Two mounting flanges either side of the connector incorporate mounting holes. Holes are drilled into the panel to align with these mounting holes. The connector is then inserted into the panel cut-out and secured in place by inserting screws through the holes in both the connector and panel.
