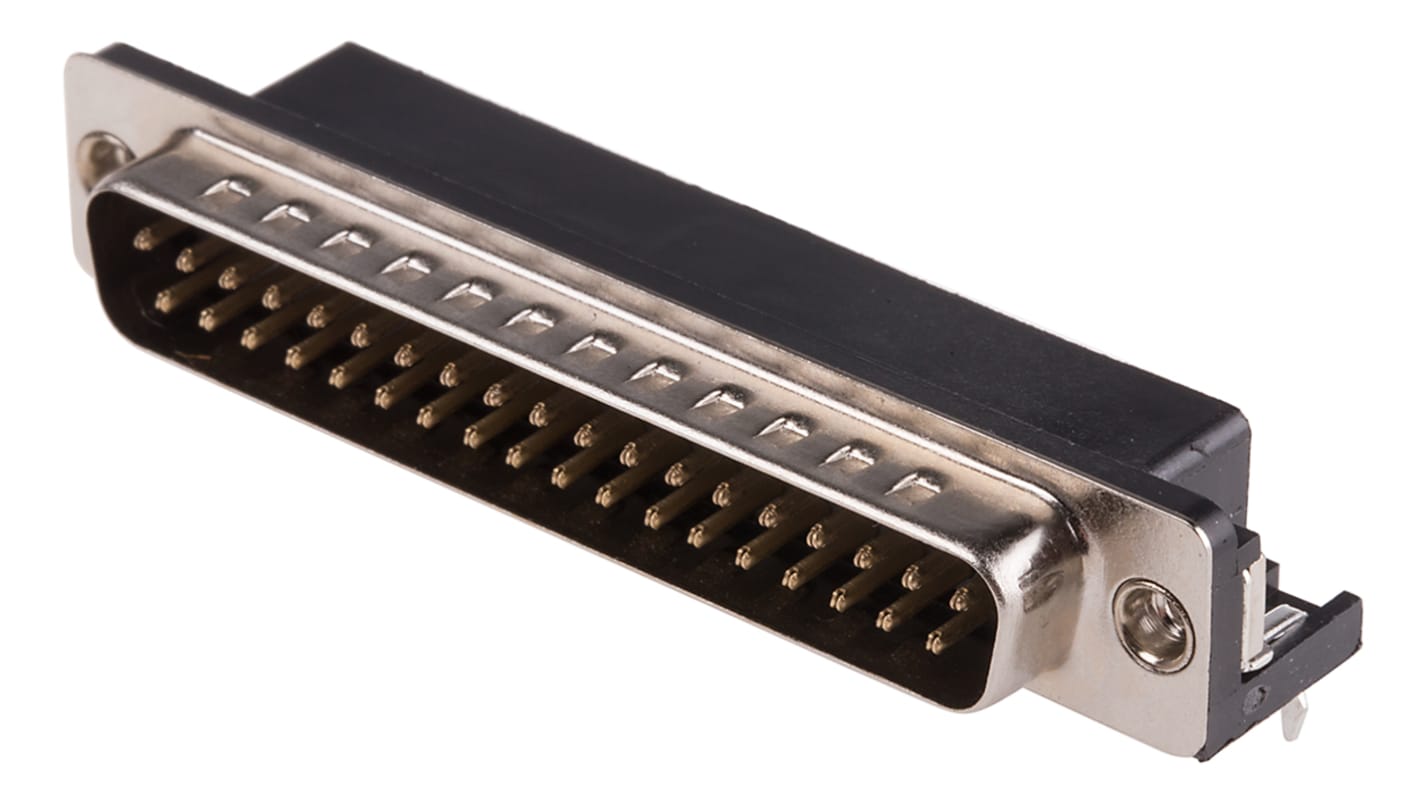

RS PRO 37 Way Right Angle Through Hole D-sub Connector Plug, 2.77mm Pitch, with 4-40 UNC, Threaded Insert
- RS Stock No.:
- 239-5912
- Distrelec Article No.:
- 304-19-082
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 pack of 10 units)*
£16.46
(exc. VAT)
£19.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 580 unit(s) ready to ship
- Plus 200 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 240 | £1.646 | £16.46 |
| 250 - 740 | £1.547 | £15.47 |
| 750 - 1990 | £1.458 | £14.58 |
| 2000 - 3990 | £1.384 | £13.84 |
| 4000 + | £1.315 | £13.15 |
*price indicative
- RS Stock No.:
- 239-5912
- Distrelec Article No.:
- 304-19-082
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Number of Contacts | 37 | |
| Gender | Male | |
| Body Orientation | Right Angle | |
| Mounting Type | Through Hole | |
| Pitch | 2.77mm | |
| Termination Method | Solder | |
| Mounting Hardware | 4-40 UNC, Threaded Insert | |
| Current Rating | 5A | |
| Housing Material | PET | |
| Voltage Rating | 350V | |
| Length | 69.32mm | |
| Width | 18.4mm | |
| Depth | 12.5mm | |
| Dimensions | 69.32 x 18.4 x 12.5mm | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Maximum Operating Temperature | +105°C | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Number of Contacts 37 | ||
Gender Male | ||
Body Orientation Right Angle | ||
Mounting Type Through Hole | ||
Pitch 2.77mm | ||
Termination Method Solder | ||
Mounting Hardware 4-40 UNC, Threaded Insert | ||
Current Rating 5A | ||
Housing Material PET | ||
Voltage Rating 350V | ||
Length 69.32mm | ||
Width 18.4mm | ||
Depth 12.5mm | ||
Dimensions 69.32 x 18.4 x 12.5mm | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Maximum Operating Temperature +105°C | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- TW
90° PCB, Short American Footprint (8.10mm)
Board locks with integral earthing straps can reduce costs during PCB soldering
Tinned/dimpled shells for effective shielding
Sealed back prevents solder/flux ingress
4-40 UNC inserts are incorporated
Suitable locking screws stock no. 453-886
Tinned/dimpled shells for effective shielding
Sealed back prevents solder/flux ingress
4-40 UNC inserts are incorporated
Suitable locking screws stock no. 453-886
Value-Added D Type Connectors
Solder bucket connection
Suitable for military, industrial or commercial applications and computer interfacing etc.
For IDC D types, see the 'Speedbloc' range
Suitable for military, industrial or commercial applications and computer interfacing etc.
For IDC D types, see the 'Speedbloc' range
