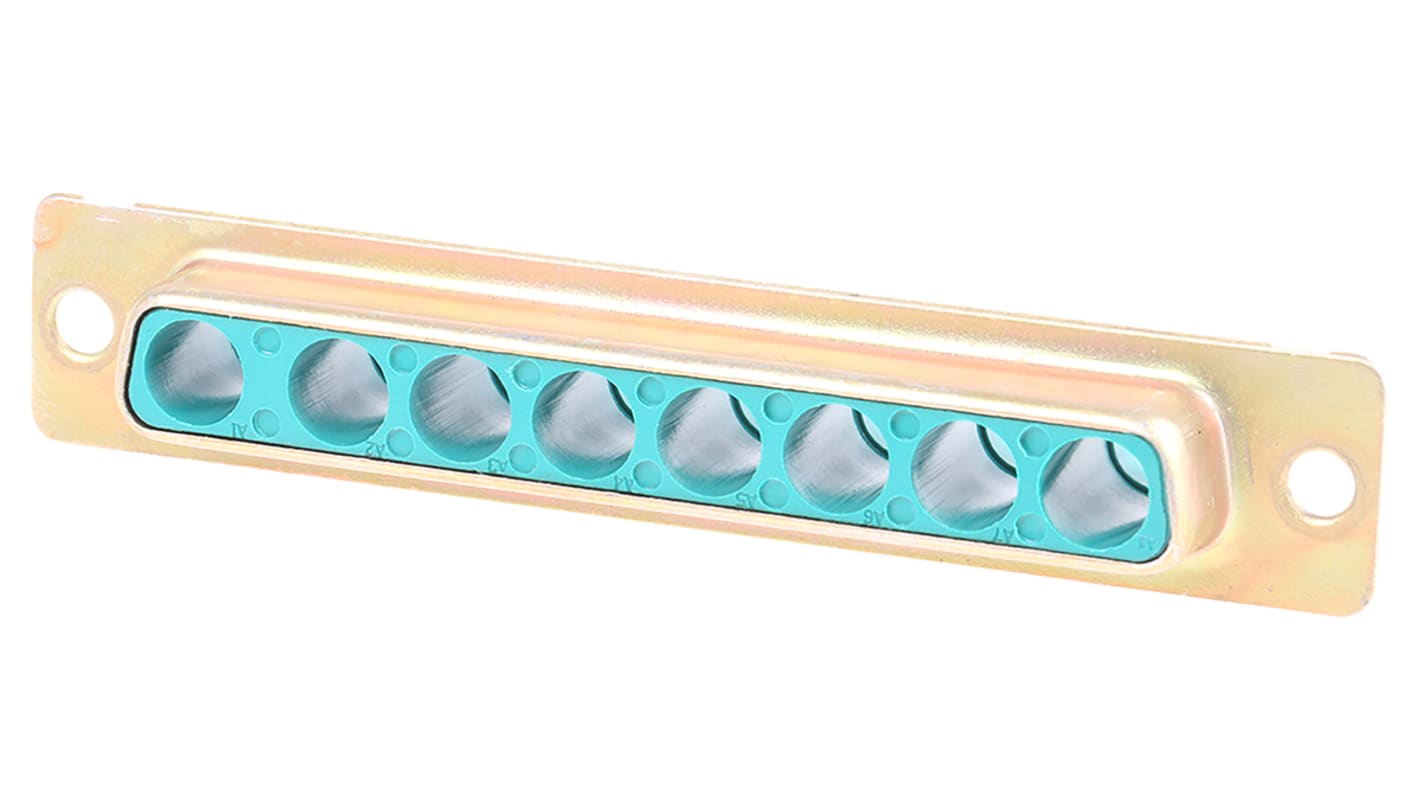

Amphenol ICC DMW 8 Way Cable Mount D-sub Connector Socket
- RS Stock No.:
- 220-0123
- Mfr. Part No.:
- DCM8W8SN
- Brand:
- Amphenol ICC
Available to back order for despatch 20/05/2024
Added
Price Each
£3.37
(exc. VAT)
£4.04
(inc. VAT)
| Units | Per unit |
| 1 - 9 | £3.37 |
| 10 - 24 | £2.86 |
| 25 - 49 | £2.53 |
| 50 - 99 | £2.19 |
| 100 + | £2.01 |
- RS Stock No.:
- 220-0123
- Mfr. Part No.:
- DCM8W8SN
- Brand:
- Amphenol ICC
Technical Reference
Legislation and Compliance
Non Compliant
Product Details
Series D mixed connectors
A series of connectors with standard signal contacts and size 8 slots, for coaxial or power contacts.
Mixed Contact 'D'
Mixed contact connectors suitable for making combined signal and power connections. Plug and socket options with solder bucket or 90° PCB terminations. Shell definition: 17W2 shell can have 17 mixed contacts in total. Shell is supplied with 15 signal contacts and has 2 cavities for power or coaxial contacts. Suitable for military, industrial or commercial applications and computer interfacing etc
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 8 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| D Connector Type | Mixed Contact D-Sub |
| Termination Method | Solder |
| D-Sub Shell Size | C |
| Mixed Contact Layout | 8W8 |
| Housing Material | Steel |
| Length | 69.32mm |
| Width | 12.55mm |
| Series | DMW |
| Minimum Operating Temperature | -55.0°C |
| Maximum Operating Temperature | +125°C |
