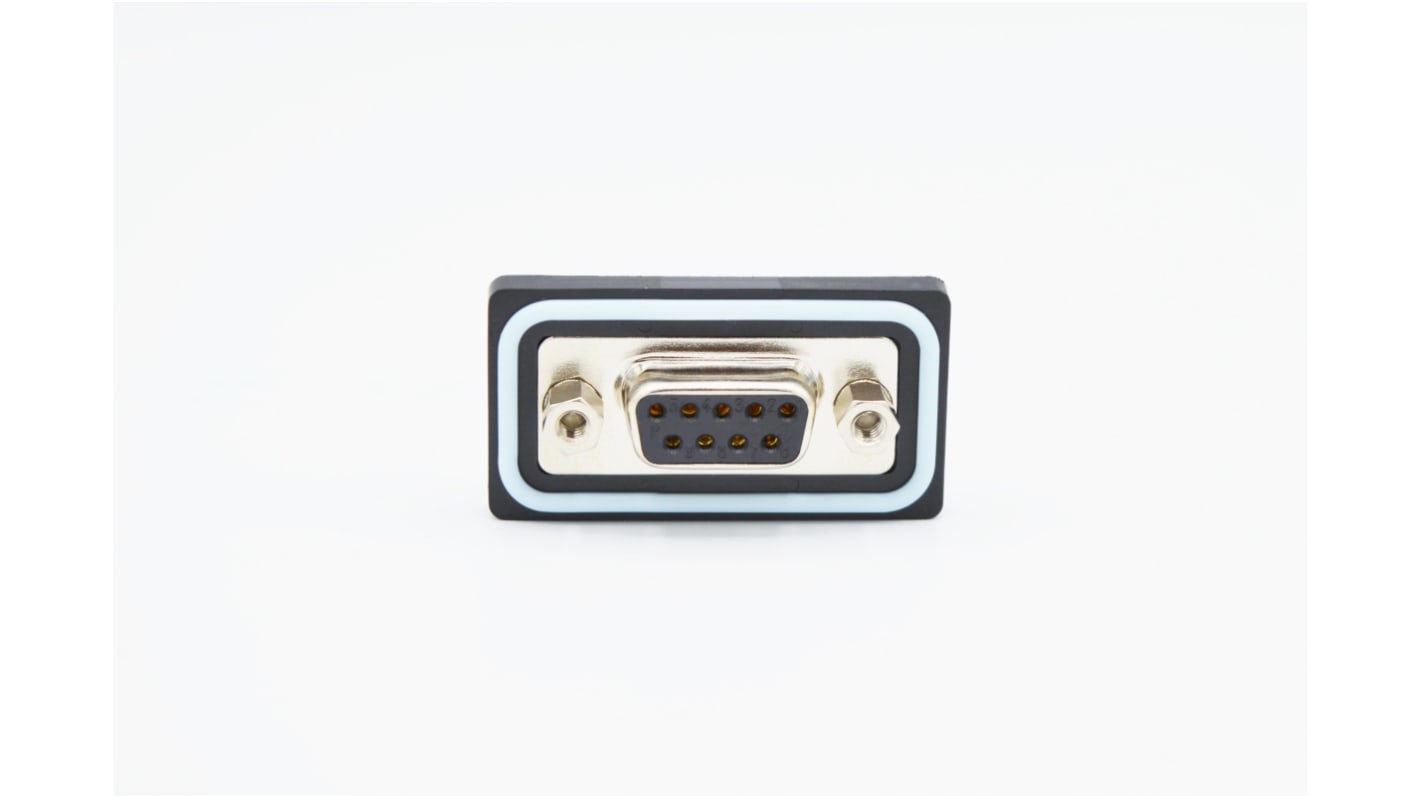

Norcomp SDF 9 Way Right Angle D-sub Connector Socket, 2.74mm Pitch, with 4-40 Boardlocks, Brackets
- RS Stock No.:
- 207-1250
- Mfr. Part No.:
- SDF-R09-213L461
- Brand:
- Norcomp
Bulk discount available
Subtotal (1 unit)*
£9.72
(exc. VAT)
£11.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £9.72 |
| 5 - 9 | £8.81 |
| 10 - 19 | £8.20 |
| 20 + | £7.54 |
*price indicative
- RS Stock No.:
- 207-1250
- Mfr. Part No.:
- SDF-R09-213L461
- Brand:
- Norcomp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norcomp | |
| Number of Contacts | 9 | |
| Gender | Female | |
| Body Orientation | Right Angle | |
| Mounting Type | PCB Mount | |
| Pitch | 2.74mm | |
| Mounting Hardware | 4-40 Boardlocks, Brackets | |
| Series | SDF | |
Select all | ||
|---|---|---|
Brand Norcomp | ||
Number of Contacts 9 | ||
Gender Female | ||
Body Orientation Right Angle | ||
Mounting Type PCB Mount | ||
Pitch 2.74mm | ||
Mounting Hardware 4-40 Boardlocks, Brackets | ||
Series SDF | ||
- COO (Country of Origin):
- TW
The Norcomp SDF series is a PCB mount 9-pin positions, female standard D-sub flange connector. The connector shell is made from nickel plating steel with gold plated brass contacts and silicon O-ring . It has a voltage of 1000 VAC and 5A current rating with insulation resistance of 5Gohms.
Orientation = right angle
IP67 rated
Operating temperature = -25°C to +85°C
Insulator = PBT, UL 94V-0 (230°C process temp)
IP67 rated
Operating temperature = -25°C to +85°C
Insulator = PBT, UL 94V-0 (230°C process temp)
