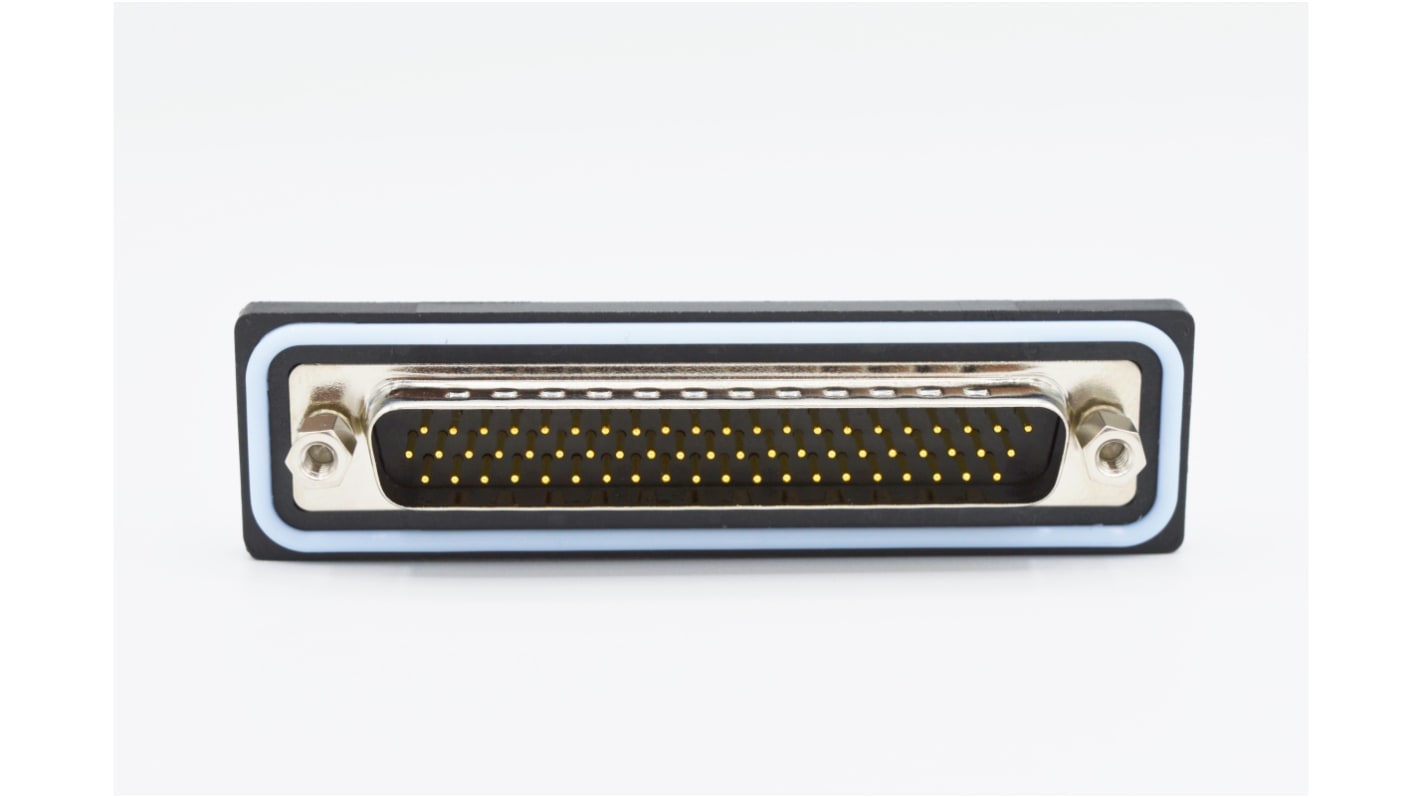

Norcomp HDF 62 Way Vertical Solder D-sub Connector Plug, 2.41mm Pitch, with 4-40 Screw Locks

View all D Sub Connectors

Subtotal (1 tray of 27 units)*

£272.43

(exc. VAT)

£326.97

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 09 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tray*
27 +£10.09£272.43

*price indicative

D-Sub-Backshells
D Sub Backshells
Don't forget D Sub Backshells!
Shop D Sub Backshells now
RS Stock No.:
207-1233
Mfr. Part No.:
HDF-V62-113L011
Brand:
Norcomp
Find similar products by selecting one or more attributes.
Select all

Brand

Norcomp

Number of Contacts

62

Gender

Male

Body Orientation

Vertical

Mounting Type

PCB Mount

Pitch

2.41mm

Mounting Hardware

4-40 Screw Locks

Series

HDF

COO (Country of Origin):
TW
The Norcomp HDF series is a 62-pin positions, male high density D-sub flange connector. The connector shell is made from nickel plating steel with gold plated brass contacts and silicon O-ring . It has a voltage of 1000 VAC and 5A current rating with insulation resistance of 5Gohms.

Orientation = vertical
IP67 rated
Operating temperature = -25°C to +85°C
Insulator = PBT, UL 94V-0 (230°C process temp)
