Norcomp CDF 25 Way Solder D-sub Connector Plug, 2.77mm Pitch, with 4-40 Screw Locks
- RS Stock No.:
- 207-1094
- Mfr. Part No.:
- CDFS17W2103L211
- Brand:
- Norcomp
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 207-1094
- Mfr. Part No.:
- CDFS17W2103L211
- Brand:
- Norcomp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norcomp | |
| Number of Contacts | 25 | |
| Gender | Male | |
| Body Orientation | Straight | |
| Mounting Type | PCB Mount | |
| Pitch | 2.77mm | |
| Mounting Hardware | 4-40 Screw Locks | |
| Series | CDF | |
Select all | ||
|---|---|---|
Brand Norcomp | ||
Number of Contacts 25 | ||
Gender Male | ||
Body Orientation Straight | ||
Mounting Type PCB Mount | ||
Pitch 2.77mm | ||
Mounting Hardware 4-40 Screw Locks | ||
Series CDF | ||
- COO (Country of Origin):
- TW

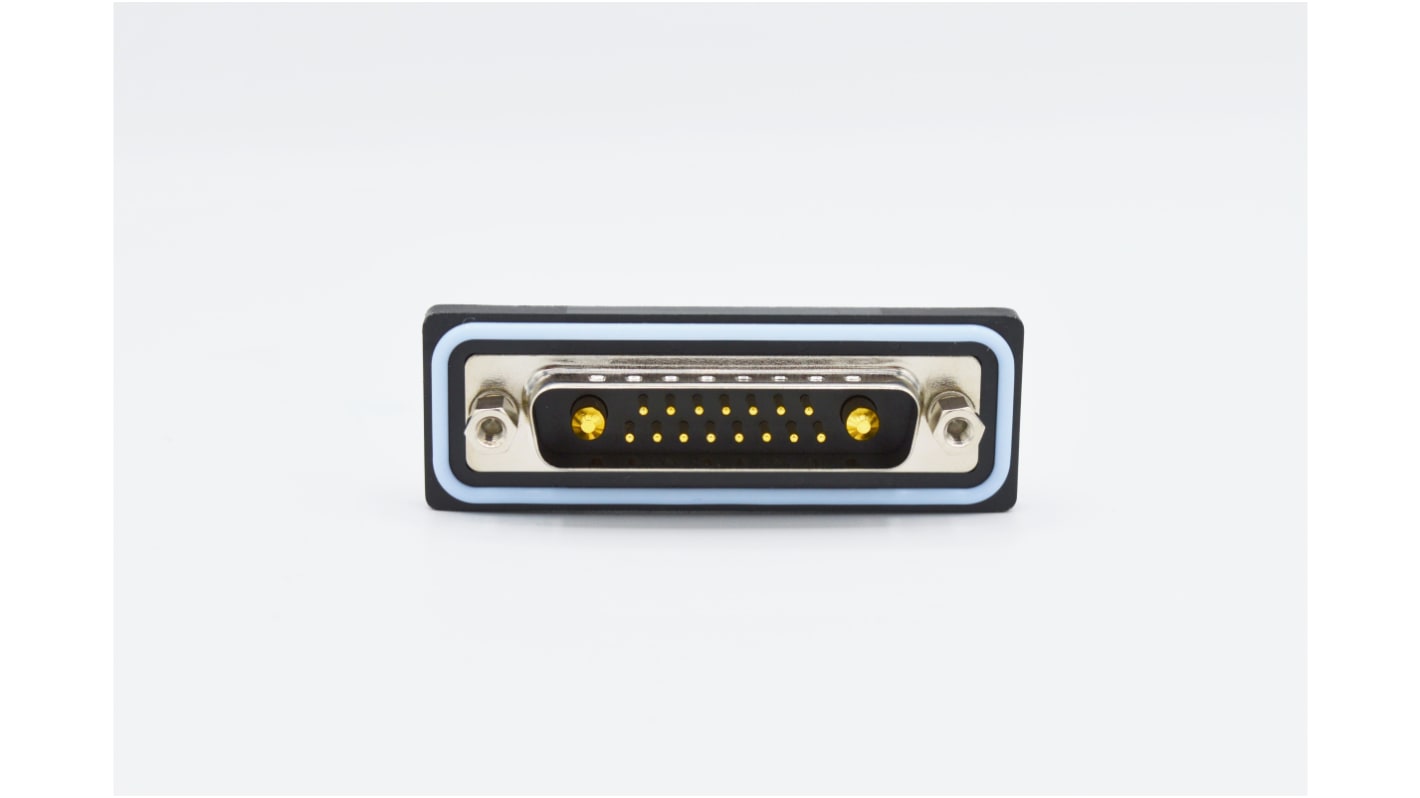

The Norcomp CDF series is a 17W2 positions, male mixed flange D-sub connector with solder cup contacts. The connector shell is made from nickel plating steel with gold plated brass contacts and silicon O-ring . It has a voltage of 1000 VAC and 20A current rating with insulation resistance of 5Gohms. Mounting hardware options are 4 - 40 threaded inserts, jackscrew.
Orientation = straight
IP67 rated
Operating temperature = -25°C to +85°C
IP67 rated
Operating temperature = -25°C to +85°C
