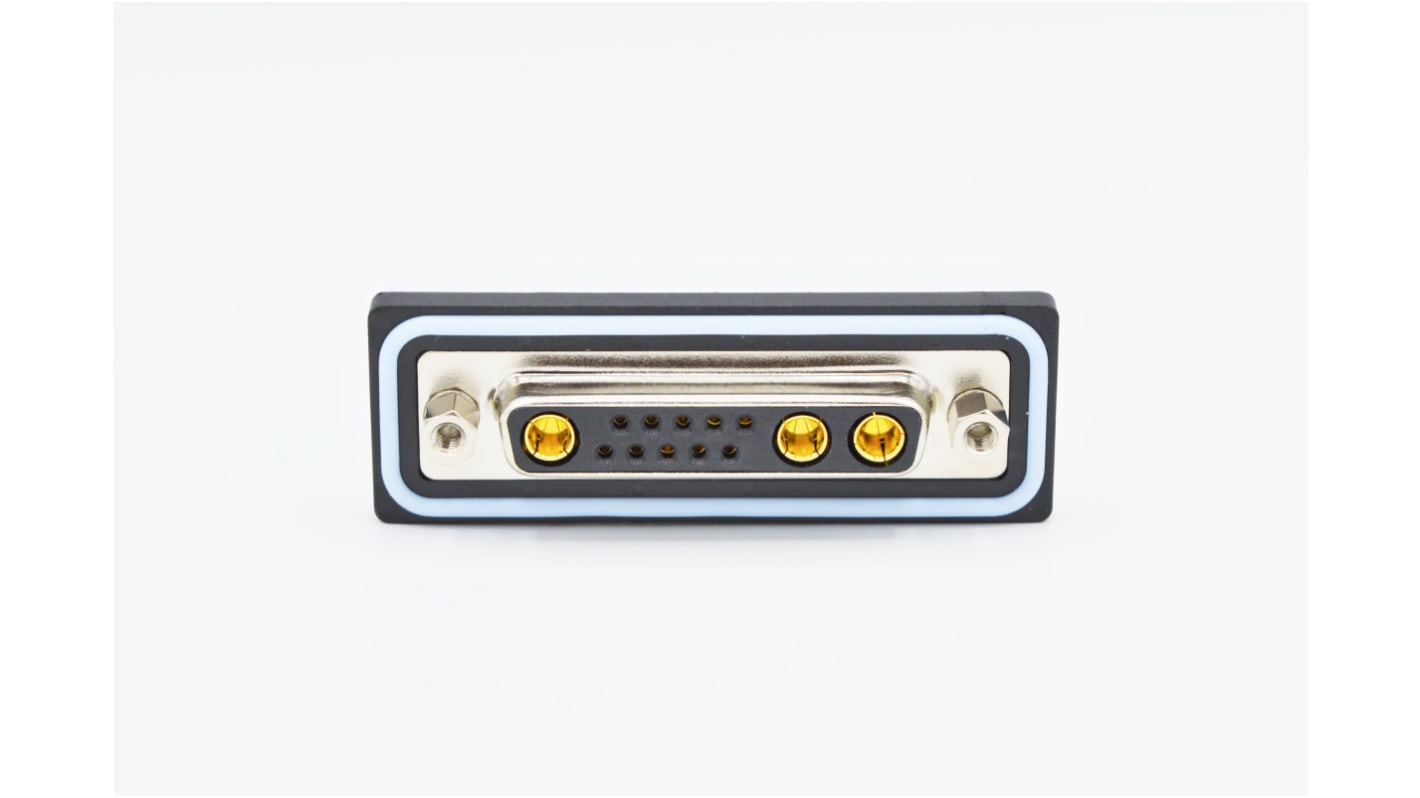

Norcomp CDF 25 Way Right Angle Solder D-sub Connector Socket, 2.77mm Pitch, with 4-40 Boardlocks
- RS Stock No.:
- 207-1033
- Mfr. Part No.:
- CDFR13W3213L461
- Brand:
- Norcomp
- RS Stock No.:
- 207-1033
- Mfr. Part No.:
- CDFR13W3213L461
- Brand:
- Norcomp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norcomp | |
| Number of Contacts | 25 | |
| Gender | Female | |
| Body Orientation | Right Angle | |
| Mounting Type | PCB Mount | |
| Pitch | 2.77mm | |
| Mounting Hardware | 4-40 Boardlocks | |
| Series | CDF | |
| Select all | ||
|---|---|---|
Brand Norcomp | ||
Number of Contacts 25 | ||
Gender Female | ||
Body Orientation Right Angle | ||
Mounting Type PCB Mount | ||
Pitch 2.77mm | ||
Mounting Hardware 4-40 Boardlocks | ||
Series CDF | ||
- COO (Country of Origin):
- TW
The Norcomp CDF series is a PCB mount 13W3 positions, female mixed flange D-sub connector. The connector shell is made from nickel plating steel with gold plated brass contacts and silicon O-ring . It has a voltage of 1000 VAC and 40A current rating with insulation resistance of 5Gohms. Mounting hardware options are 4 - 40 threaded inserts, jackscrew or board locks.
Orientation = right angle
IP67 rated
Operating temperature = -25°C to +85°C
IP67 rated
Operating temperature = -25°C to +85°C
