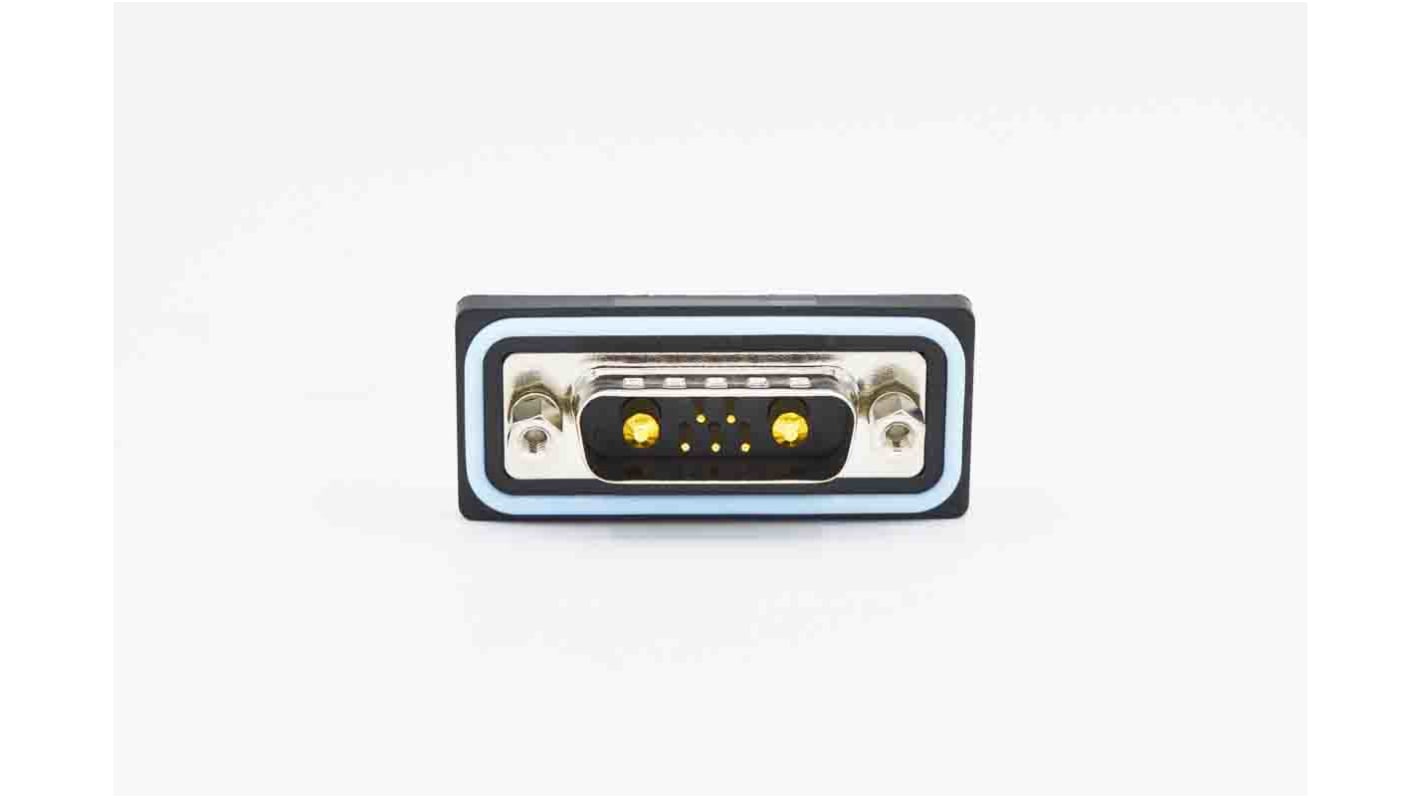

Norcomp CDFV 3 Way Vertical PCB D-sub Connector Plug, 6.85mm Pitch, with 4-40 Screw Locks
- RS Stock No.:
- 204-1689
- Mfr. Part No.:
- CDFV3W3113L211
- Brand:
- Norcomp
- RS Stock No.:
- 204-1689
- Mfr. Part No.:
- CDFV3W3113L211
- Brand:
- Norcomp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norcomp | |
| Number of Contacts | 3 | |
| Gender | Male | |
| Body Orientation | Vertical | |
| Mounting Type | PCB Mount | |
| Pitch | 6.85mm | |
| Mounting Hardware | 4-40 Screw Locks | |
| Series | CDFV | |
| Select all | ||
|---|---|---|
Brand Norcomp | ||
Number of Contacts 3 | ||
Gender Male | ||
Body Orientation Vertical | ||
Mounting Type PCB Mount | ||
Pitch 6.85mm | ||
Mounting Hardware 4-40 Screw Locks | ||
Series CDFV | ||
The Norcomp CDFV series is a mixed flange D-sub 3W3 pin positions, vertical male connector. The connector shell is made from nickel plating steel with gold plated brass contacts. It has a electrical rating of 1000 VAC and 20A with insulation resistance of 5Gohms. Mounting hardware options are 4 - 40 threaded inserts, jackscrew or Boardlocks.
Solder cup contacts
IP67 rating
Operating Temperature: -25°C to +85°C
IP67 rating
Operating Temperature: -25°C to +85°C
