- RS Stock No.:
- 191-7975
- Mfr. Part No.:
- 5749621-2
- Brand:
- TE Connectivity
406 In stock - FREE next working day delivery available
Added
Price Each
£5.03
(exc. VAT)
£6.04
(inc. VAT)
Units | Per unit |
1 + | £5.03 |
- RS Stock No.:
- 191-7975
- Mfr. Part No.:
- 5749621-2
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
Product Details

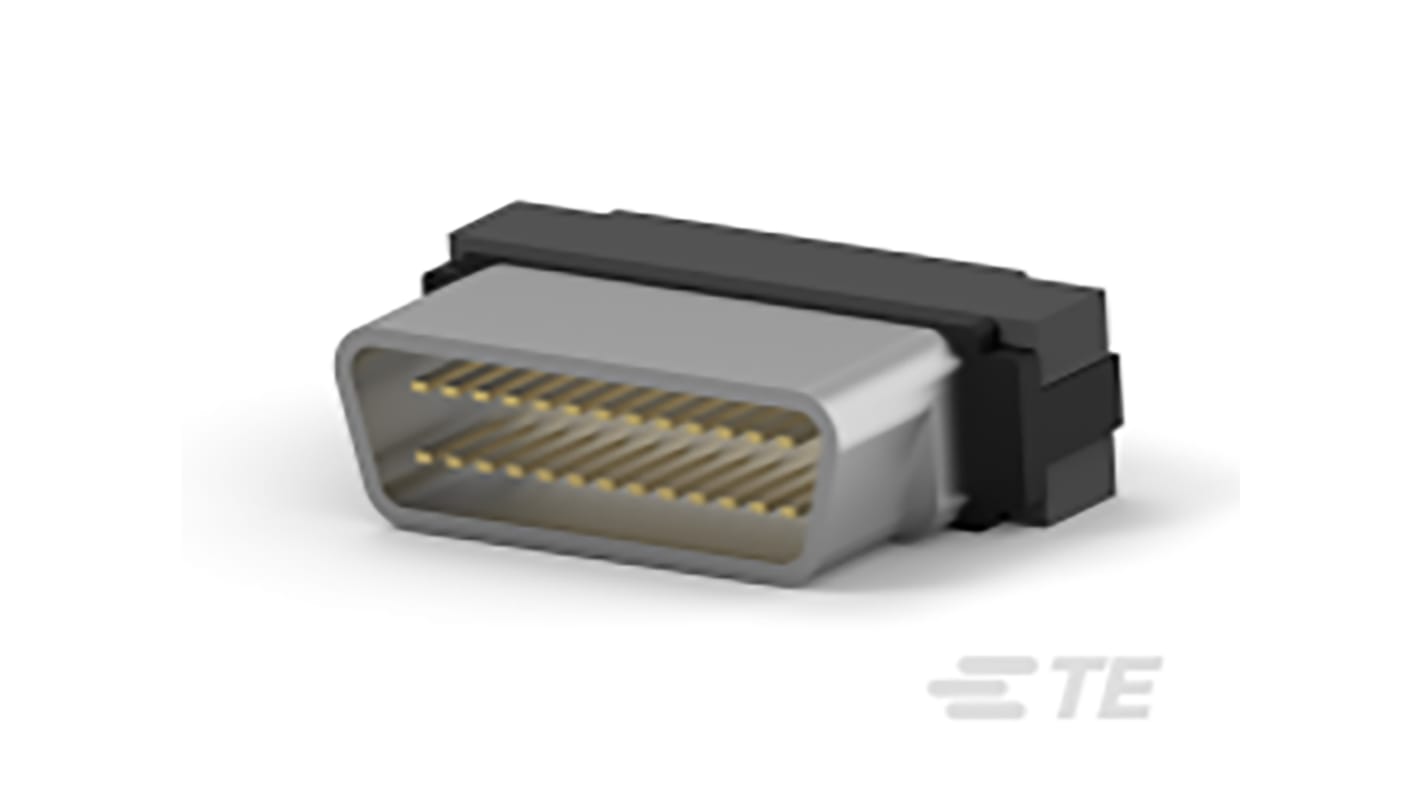

Shielded AMPLIMITE .050 Series headers with ACTION PIN contacts offer a high-density D type interface, and a solderless board-mount interconnection. These vertical mount headers are available in 20, 26, 50, 68 and 100 contact sizes. Choice of configurations includes; headers with rails and latch blocks, with latch blocks only, and without rails and latch blocks.
ACTION PIN contact tails are available in two lengths; .173 [4.39] for pc boards with a nominal thickness of .062 [1.56] to .093 [2.36], and .280 [7.11] for pc boards with a nominal thickness of .125 [3.18] to .200 [5.08].
AMPLIMITE .050 Series headers with ACTION PIN contacts are compatible with SCSI-2, SCSI-3, EIA RS-232, IPI-2 and HIPPI standards.
ACTION PIN contact tails are available in two lengths; .173 [4.39] for pc boards with a nominal thickness of .062 [1.56] to .093 [2.36], and .280 [7.11] for pc boards with a nominal thickness of .125 [3.18] to .200 [5.08].
AMPLIMITE .050 Series headers with ACTION PIN contacts are compatible with SCSI-2, SCSI-3, EIA RS-232, IPI-2 and HIPPI standards.
Specifications
Attribute | Value |
---|---|
Number of Contacts | 26 |
Gender | Male |
Mounting Type | Cable Mount |
Pitch | 1.27mm |
Termination Method | IDC |
Current Rating | 1A |
Housing Material | Thermoplastic |
Length | 24.87mm |
Width | 7.44mm |
Depth | 14.94mm |
Contact Material | Phosphor Bronze |
Series | Amplimite 0.50 |
Dimensions | 24.87 x 7.44 x 14.94mm |
Contact Plating | Tin |
Maximum Operating Temperature | +105°C |
Minimum Operating Temperature | -55.0°C |
