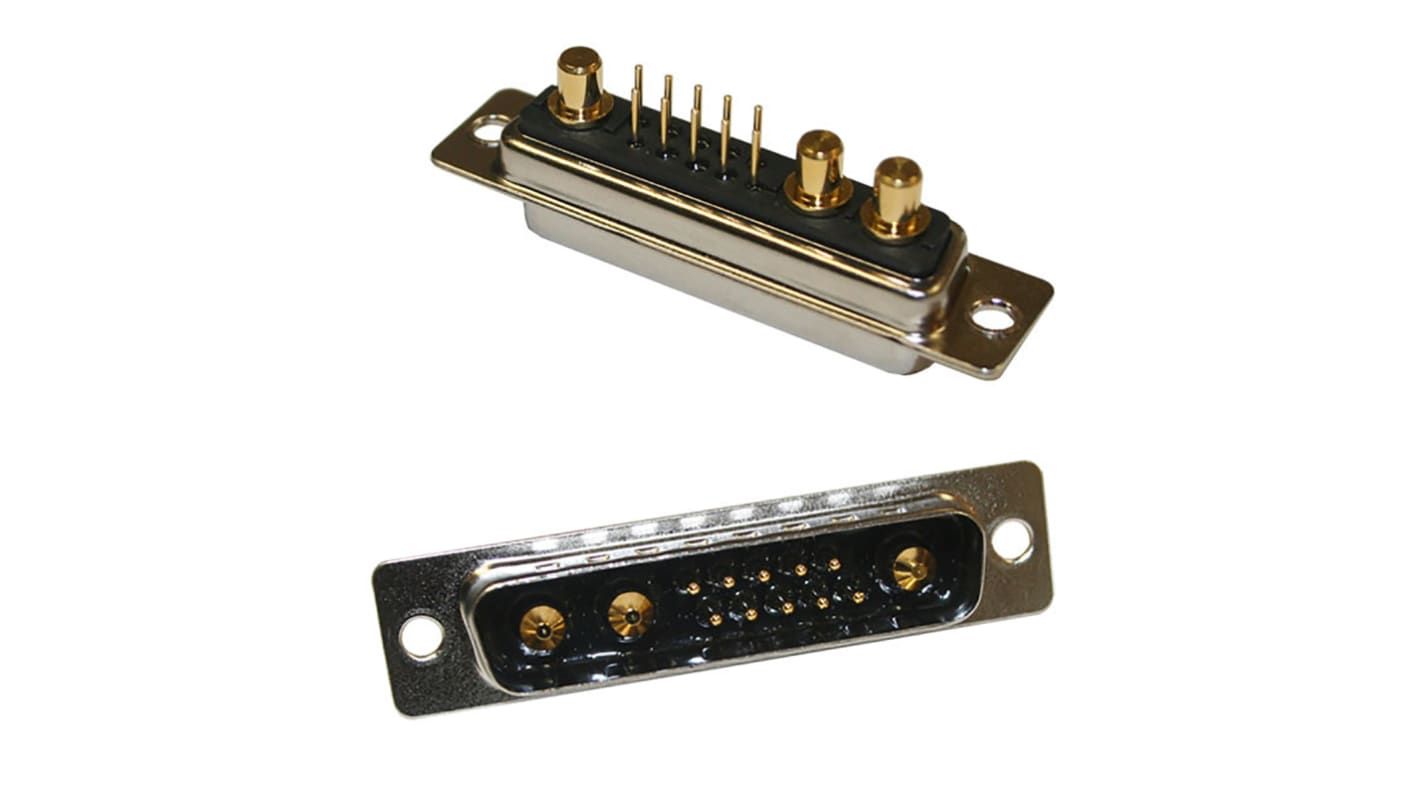

Norcomp 681S 7 Way Through Hole D-sub Connector Socket
- RS Stock No.:
- 174-8570
- Mfr. Part No.:
- 681S7W2203L001
- Brand:
- Norcomp
Save 5% when you buy 400 units
Subtotal (1 tray of 80 units)*
£796.32
(exc. VAT)
£955.60
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
---|---|---|
80 - 80 | £9.954 | £796.32 |
160 - 320 | £9.675 | £774.00 |
400 + | £9.417 | £753.36 |
*price indicative
- RS Stock No.:
- 174-8570
- Mfr. Part No.:
- 681S7W2203L001
- Brand:
- Norcomp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norcomp | |
Number of Contacts | 7 | |
Gender | Female | |
Body Orientation | Straight | |
Mounting Type | Through Hole | |
D Connector Type | Mixed Contact D-Sub | |
Termination Method | Solder | |
Current Rating | 5 A, 40.0A | |
Mixed Contact Layout | 7W2 | |
Housing Material | Steel | |
Voltage Rating | 1.0 kV | |
Length | 53.05mm | |
Width | 12.5mm | |
Depth | 10.7mm | |
Dimensions | 53.05 x 12.5 x 10.7mm | |
Series | 681S | |
Contact Material | Copper Alloy | |
Contact Plating | Gold Flash | |
Maximum Operating Temperature | +125°C | |
Series Number | 681S | |
Minimum Operating Temperature | -55.0°C | |
Select all | ||
---|---|---|
Brand Norcomp | ||
Number of Contacts 7 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Through Hole | ||
D Connector Type Mixed Contact D-Sub | ||
Termination Method Solder | ||
Current Rating 5 A, 40.0A | ||
Mixed Contact Layout 7W2 | ||
Housing Material Steel | ||
Voltage Rating 1.0 kV | ||
Length 53.05mm | ||
Width 12.5mm | ||
Depth 10.7mm | ||
Dimensions 53.05 x 12.5 x 10.7mm | ||
Series 681S | ||
Contact Material Copper Alloy | ||
Contact Plating Gold Flash | ||
Maximum Operating Temperature +125°C | ||
Series Number 681S | ||
Minimum Operating Temperature -55.0°C | ||
- COO (Country of Origin):
- US
Mixed Contact d-sub available in 11 industry standard sizes / positions:
3W3 | 5W1 | 5W5 | 7W2 | 9W4 | 11W1 | 13W3 | 13W6 | 17W2 | 21W1 | 21WA4
Available in 40 amp power contacts, 5 amp signal
Allows signal, high current & high voltage in one connector.
Contacts are pre-loaded into the insulator.
Panel Sealing Kits (Removable or Permanent) available as a separate item
Unique sealing method maintains standard D-Sub profile allowing for drop in replacement of current POWER-D connectors
Shell: Steel, nickel plated
Insulator: Glass-Filled Thermoplastic, Black
Signal Contacts: Machined Copper Alloy, Full Gold Flash
Power Contacts: Machined Copper Alloy, Full Gold Flash
3W3 | 5W1 | 5W5 | 7W2 | 9W4 | 11W1 | 13W3 | 13W6 | 17W2 | 21W1 | 21WA4
Available in 40 amp power contacts, 5 amp signal
Allows signal, high current & high voltage in one connector.
Contacts are pre-loaded into the insulator.
Panel Sealing Kits (Removable or Permanent) available as a separate item
Unique sealing method maintains standard D-Sub profile allowing for drop in replacement of current POWER-D connectors
Shell: Steel, nickel plated
Insulator: Glass-Filled Thermoplastic, Black
Signal Contacts: Machined Copper Alloy, Full Gold Flash
Power Contacts: Machined Copper Alloy, Full Gold Flash
