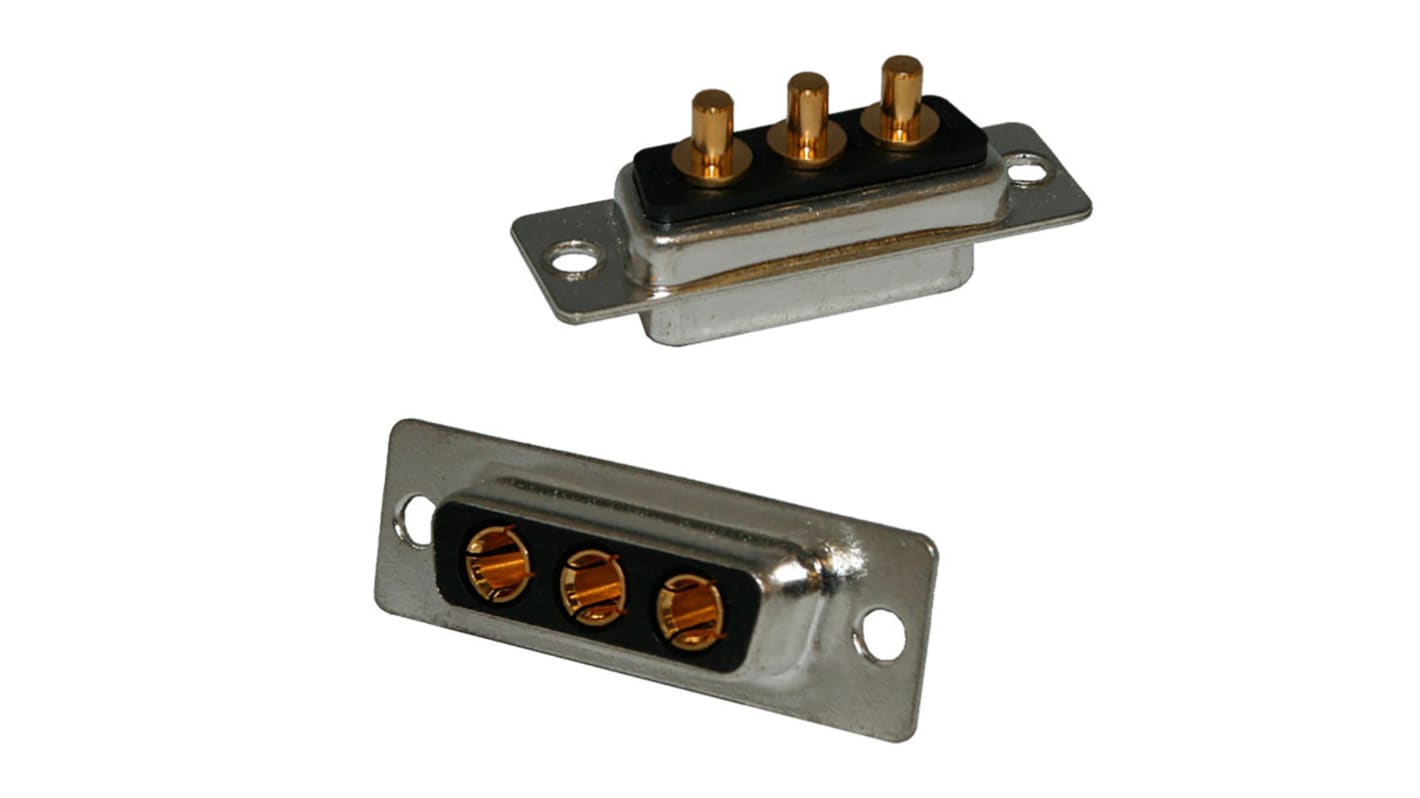

Norcomp 681M 3 Way Through Hole D-sub Connector Socket, 6.85mm Pitch
- RS Stock No.:
- 174-8556
- Mfr. Part No.:
- 681M3W3203L001
- Brand:
- Norcomp
Available to back order for despatch 04/10/2024
Added
Price Each (In a Tray of 80)
£6.654
(exc. VAT)
£7.985
(inc. VAT)
| Units | Per unit | Per Tray* |
| 80 + | £6.654 | £532.32 |
| *price indicative | ||
- RS Stock No.:
- 174-8556
- Mfr. Part No.:
- 681M3W3203L001
- Brand:
- Norcomp
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Available in 12 industry standard sizes / positions:
3W3 | 3W3K | 5W1 | 5W5 | 7W2 | 8W8 | 9W4 | 11W1 | 13W3 | 17W2 | 21W1 | 21WA4
Available in 40 amp power contacts, 5 amp signal
Allows signal, high current & high voltage in one connector.
Contacts are pre-loaded into the insulator.
Shell: Steel, Nickel plated
Insulator: Glass-Filled Thermoplastic, Black
Signal Contacts: Machined Copper Alloy, Full Gold Flash
Power Contacts: Machined Copper Alloy, Full Gold Flash
3W3 | 3W3K | 5W1 | 5W5 | 7W2 | 8W8 | 9W4 | 11W1 | 13W3 | 17W2 | 21W1 | 21WA4
Available in 40 amp power contacts, 5 amp signal
Allows signal, high current & high voltage in one connector.
Contacts are pre-loaded into the insulator.
Shell: Steel, Nickel plated
Insulator: Glass-Filled Thermoplastic, Black
Signal Contacts: Machined Copper Alloy, Full Gold Flash
Power Contacts: Machined Copper Alloy, Full Gold Flash
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 3 |
| Gender | Female |
| Body Orientation | Straight |
| Mounting Type | Through Hole |
| Pitch | 6.85mm |
| Termination Method | Solder |
| Mixed Contact Layout | 3W3 |
| Current Rating | 40.0A |
| Housing Material | Steel |
| Voltage Rating | 1.0 kV |
| Length | 39.2mm |
| Width | 12.5mm |
| Depth | 10.69mm |
| Contact Material | Copper Alloy |
| Contact Plating | Gold Flash |
| Series | 681M |
| Dimensions | 39.2 x 12.5 x 10.69mm |
| Minimum Operating Temperature | -55.0°C |
| Maximum Operating Temperature | +125°C |
| Series Number | 681M |
