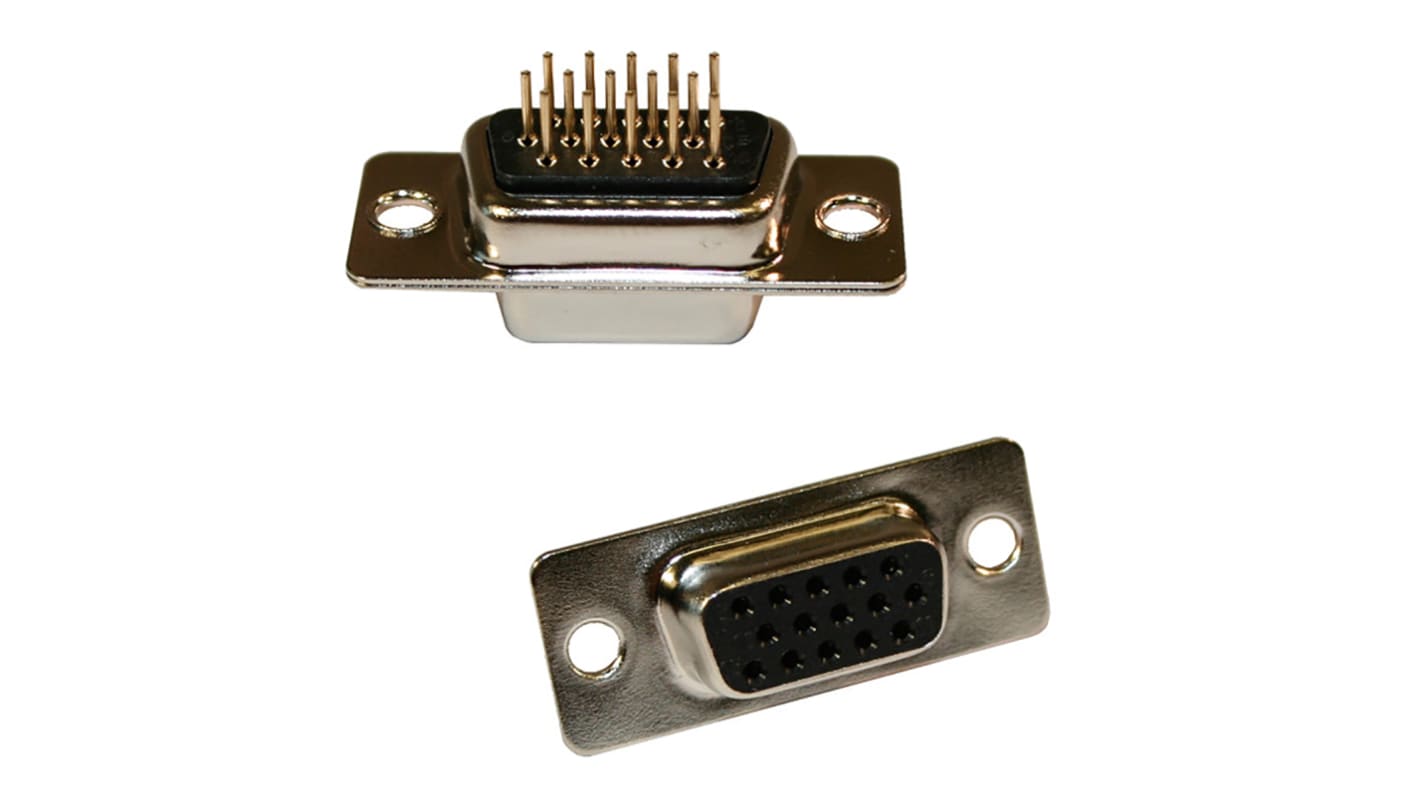

Norcomp 180 15 Way Through Hole D-sub Connector Socket, 2.29mm Pitch, with 4-40 Spacer/Board Lock
- RS Stock No.:
- 174-8506
- Mfr. Part No.:
- 180-015-213R911
- Brand:
- Norcomp
Bulk discount available
Subtotal (1 tray of 80 units)*
£172.80
(exc. VAT)
£207.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 560 unit(s) ready to ship
- Plus 999,999,360 unit(s) shipping from 13 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 80 - 80 | £2.16 | £172.80 |
| 160 - 320 | £2.10 | £168.00 |
| 400 + | £2.043 | £163.44 |
*price indicative
- RS Stock No.:
- 174-8506
- Mfr. Part No.:
- 180-015-213R911
- Brand:
- Norcomp
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norcomp | |
| Number of Contacts | 15 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Through Hole | |
| Pitch | 2.29mm | |
| D Connector Type | High Density D-Sub | |
| Termination Method | Solder | |
| Mounting Hardware | 4-40 Spacer/Board Lock | |
| Current Rating | 3A | |
| Housing Material | Steel | |
| Voltage Rating | 500.0 V | |
| Length | 30.8mm | |
| Width | 12.6mm | |
| Depth | 12.2mm | |
| Dimensions | 30.8 x 12.6 x 12.2mm | |
| Series | 180 | |
| Contact Plating | Gold Flash | |
| Contact Material | Brass | |
| Series Number | 180 | |
| Maximum Operating Temperature | +100°C | |
| Minimum Operating Temperature | -50.0°C | |
Select all | ||
|---|---|---|
Brand Norcomp | ||
Number of Contacts 15 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Through Hole | ||
Pitch 2.29mm | ||
D Connector Type High Density D-Sub | ||
Termination Method Solder | ||
Mounting Hardware 4-40 Spacer/Board Lock | ||
Current Rating 3A | ||
Housing Material Steel | ||
Voltage Rating 500.0 V | ||
Length 30.8mm | ||
Width 12.6mm | ||
Depth 12.2mm | ||
Dimensions 30.8 x 12.6 x 12.2mm | ||
Series 180 | ||
Contact Plating Gold Flash | ||
Contact Material Brass | ||
Series Number 180 | ||
Maximum Operating Temperature +100°C | ||
Minimum Operating Temperature -50.0°C | ||
