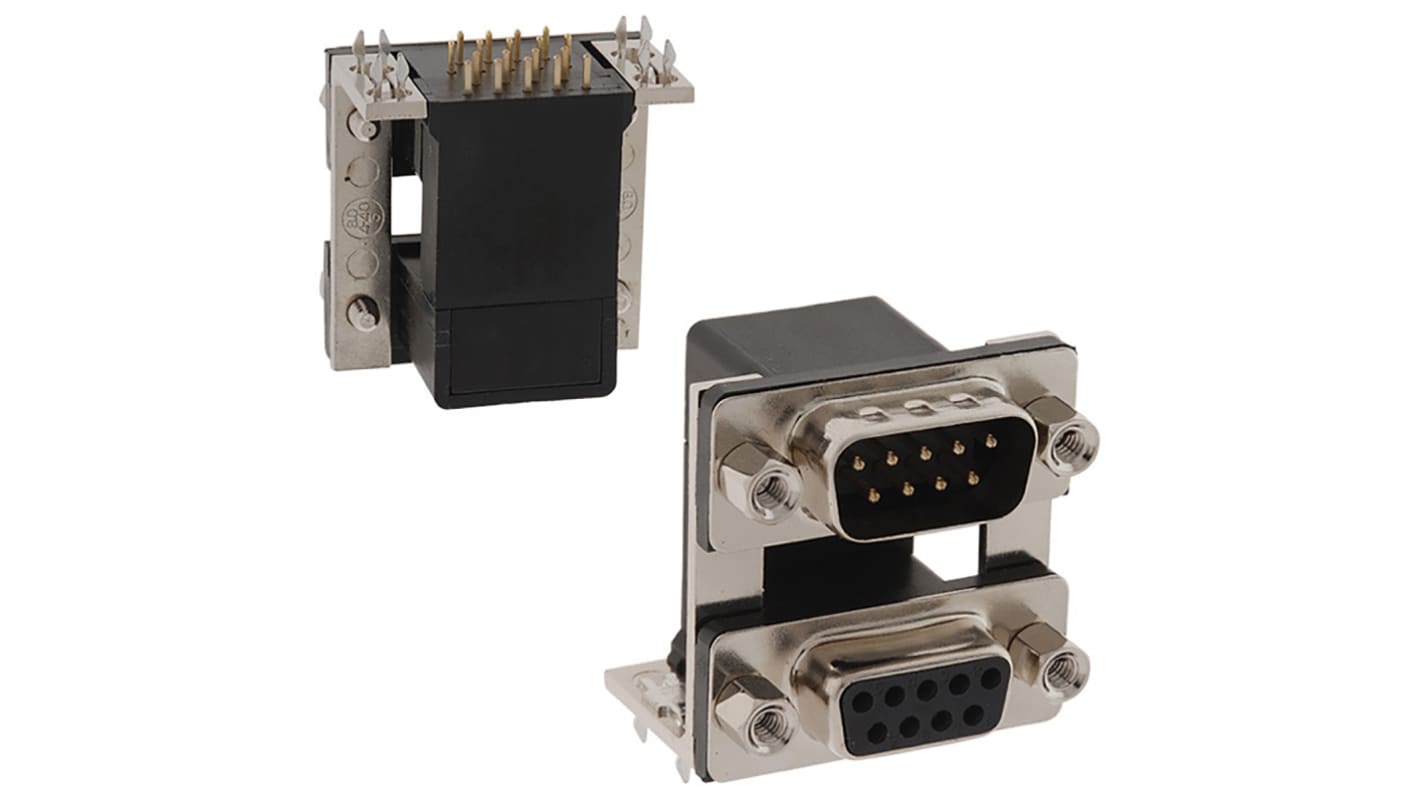

Norcomp 178 9 Way Right Angle Through Hole D-sub Connector Female/Male, 2.77mm Pitch, with 4-40 Inserts/Board Lock
- RS Stock No.:
- 174-8479
- Mfr. Part No.:
- 178-009-413R491
- Brand:
- Norcomp
Available to back order for despatch 15/10/2024
Added
Price Each (In a Tray of 45)
£5.635
(exc. VAT)
£6.762
(inc. VAT)
| Units | Per unit | Per Tray* |
| 45 - 45 | £5.635 | £253.575 |
| 90 - 180 | £5.376 | £241.92 |
| 225 + | £5.10 | £229.50 |
| *price indicative | ||
- RS Stock No.:
- 174-8479
- Mfr. Part No.:
- 178-009-413R491
- Brand:
- Norcomp
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Dual port d-subs available in 4 industry sizes/positions:
Standard Density (9 pin, 15 pin, 25 pin, 37 pin) & High Density (15 pin)
Low cost, high performance stamped contacts.
Stacked d-sub provides proper mating while maximizing board space.
Nickel plated shells have ground indents to provide better grounding & retention.
Metal shell for improved shielding.
Fully intermateable with other d-sub connectors.
Shell: Steel, nickel plating
Insulator: Glass-filled thermoplastic, (260°C process temp)
Stamped contacts: Brass | Plating: Gold flash
Standard Density (9 pin, 15 pin, 25 pin, 37 pin) & High Density (15 pin)
Low cost, high performance stamped contacts.
Stacked d-sub provides proper mating while maximizing board space.
Nickel plated shells have ground indents to provide better grounding & retention.
Metal shell for improved shielding.
Fully intermateable with other d-sub connectors.
Shell: Steel, nickel plating
Insulator: Glass-filled thermoplastic, (260°C process temp)
Stamped contacts: Brass | Plating: Gold flash
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 9 |
| Gender | Female/Male |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Pitch | 2.77mm |
| D Connector Type | Dual Ports D-Sub |
| Termination Method | Solder |
| Mounting Hardware | 4-40 Inserts/Board Lock |
| Current Rating | 5.0A |
| Housing Material | Steel |
| Voltage Rating | 1.0 kV |
| Length | 30.58mm |
| Width | 25.4mm |
| Depth | 31.75mm |
| Contact Material | Brass |
| Dimensions | 30.58 x 25.4 x 31.75mm |
| Series | 178 |
| Contact Plating | Gold Flash |
| Maximum Operating Temperature | +105°C |
| Series Number | 178 |
| Minimum Operating Temperature | -55.0°C |
