- RS Stock No.:
- 174-8476
- Mfr. Part No.:
- 173-E25-213R001
- Brand:
- Norcomp
450 In stock - FREE next working day delivery available
Added
Price Each (In a Tray of 50)
£8.889
(exc. VAT)
£10.667
(inc. VAT)
Units | Per unit | Per Tray* |
50 + | £8.889 | £444.45 |
*price indicative |
- RS Stock No.:
- 174-8476
- Mfr. Part No.:
- 173-E25-213R001
- Brand:
- Norcomp
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

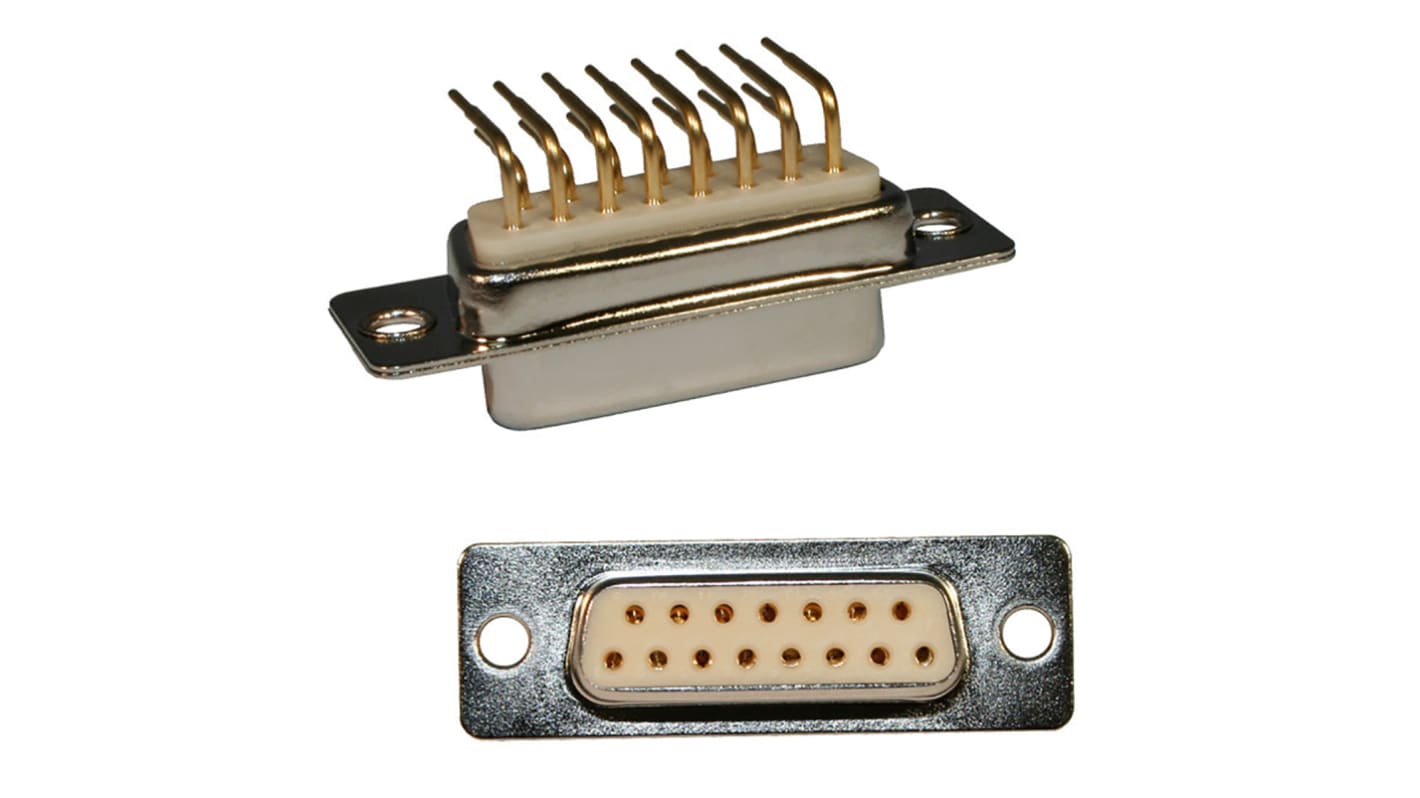

Right angle d-sub available in 5 industry sizes/positions
Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin).
Available in Industry Standard Footprint with 2 different mounting options.
Nickel shells available only.
Male shells have indents to provide grounding and additional retention.
Non-removable machined contacts for high reliability.
NEW! Now Available with Permanent Mounting Bracket.
4-40 Inserts & Board locks
Shell: Steel, Nickel plating
Insulator: Glass-filled thermoplastic, (260°C process temp)
Machined contacts: Male - Brass | Female - Brass
Plating: Gold flash on entire contact
Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin).
Available in Industry Standard Footprint with 2 different mounting options.
Nickel shells available only.
Male shells have indents to provide grounding and additional retention.
Non-removable machined contacts for high reliability.
NEW! Now Available with Permanent Mounting Bracket.
4-40 Inserts & Board locks
Shell: Steel, Nickel plating
Insulator: Glass-filled thermoplastic, (260°C process temp)
Machined contacts: Male - Brass | Female - Brass
Plating: Gold flash on entire contact
Specifications
Attribute | Value |
---|---|
Number of Contacts | 25 |
Gender | Female |
Body Orientation | Right Angle |
Mounting Type | Through Hole |
Pitch | 2.54mm |
D Connector Type | Standard D-Sub |
Termination Method | Solder |
Current Rating | 5.0A |
Housing Material | Steel |
Voltage Rating | 500.0 V |
Length | 50.8mm |
Width | 12.446mm |
Depth | 12.446mm |
Contact Plating | Gold Flash |
Contact Material | Brass |
Dimensions | 50.8 x 12.446 x 12.446mm |
Series | 173 |
Minimum Operating Temperature | -50.0°C |
Series Number | 173 |
Maximum Operating Temperature | +100°C |
