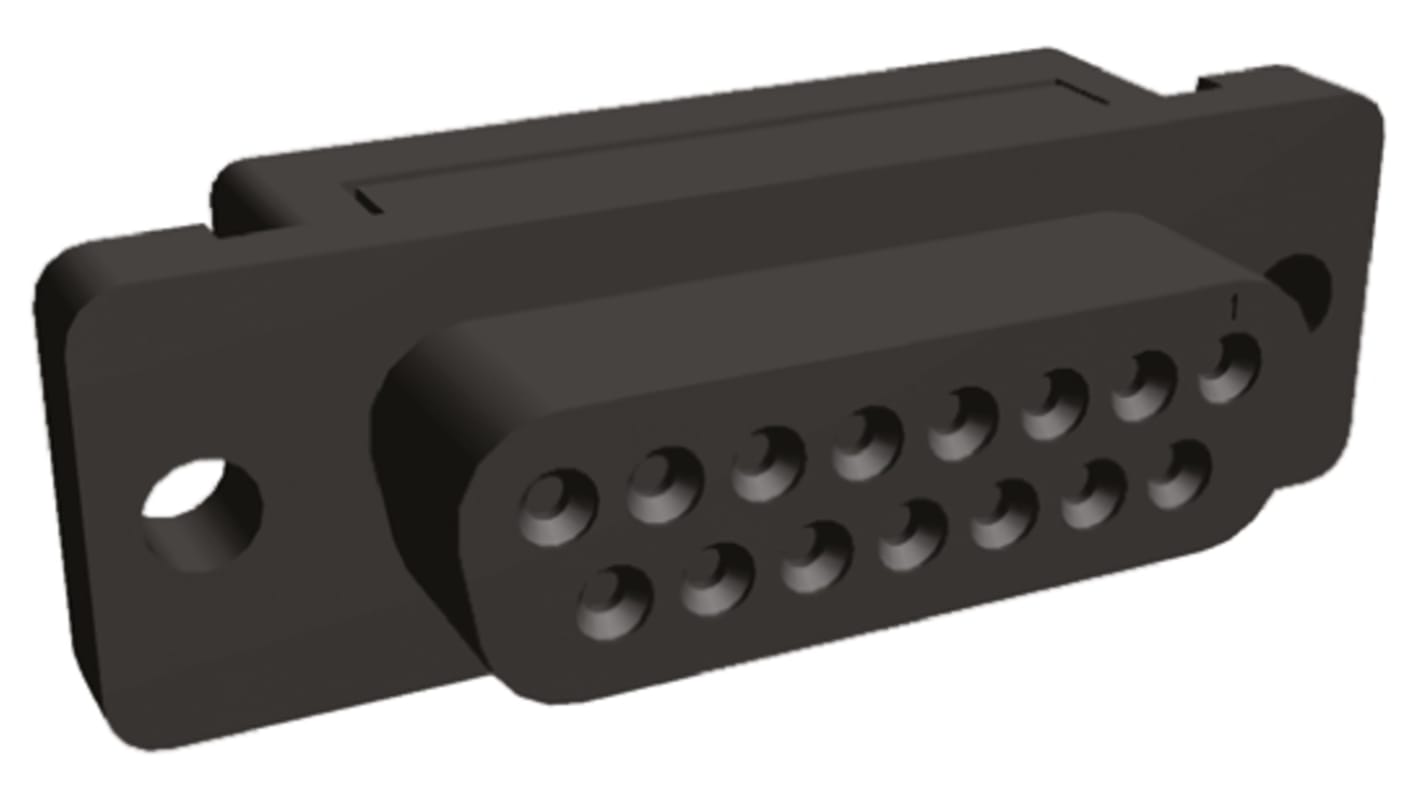

TE Connectivity, Amplimite HDF-20 15 Way Right Angle Cable Mount D-sub Connector Socket, 1.27mm Pitch

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

AMPLIMITE D-Sub Ribbon Cable Connector, Series HDF-20, Low Profile, IDC, All-Plastic

AMPLIMITE HDF-20 series low profile IDC All-Plastic d-sub connectors for round conductor flat ribbon cable. These AMPLIMITE HDF-20 series IDC All-Plastic d-sub ribbon cable connectors have pre-assembled black 94V-0 rated thermoplastic housings and covers, standard 3.05mm mounting holes and are pre-loaded with duplex plated phosphor bronze contacts that accept 28 AWG and 26 AWG solid and stranded round conductor flat ribbon cable on 1.27mm centres. These AMPLIMITE HDF-20 series d-sub ribbon cable connectors mate with HD-20 Board Mount and HDE All-Plastic d-sub cable connectors.
For optional strain relief see stock numbers 409-3387 and 409-3422 typically.
For screwlocks and screws see stock number 680-9358, 717-4473 and 680-9351 typically.

Plastic body, cable mounted D connector plugs and sockets which can also be panel mounted
Height 18.56mm, Width 12.6mm
Stock number798-1511 has threaded inserts #4-40

D Type & Accessories - TE Connectivity

Specifications
Attribute Value
Number of Contacts 15
Gender Female
Body Orientation Right Angle
Mounting Type Cable Mount
Pitch 1.27mm
Termination Method IDC
Current Rating 1.25A
Housing Material Thermoplastic
Voltage Rating 250.0 V
Length 39.14mm
Width 12.59mm
Depth 18.61mm
Dimensions 39.14 x 12.59 x 18.61mm
Contact Material Phosphor Bronze
Contact Plating Gold over Nickel
Series Amplimite HDF-20
Minimum Operating Temperature -55.0°C
Maximum Operating Temperature +105°C
Available to back order for despatch 09/11/2020
Price Each (In a Tube of 40)
£ 5.34
(exc. VAT)
£ 6.41
(inc. VAT)
Units
Per unit
Per Tube*
40 - 80
£5.34
£213.60
120 +
£4.331
£173.24
*price indicative
