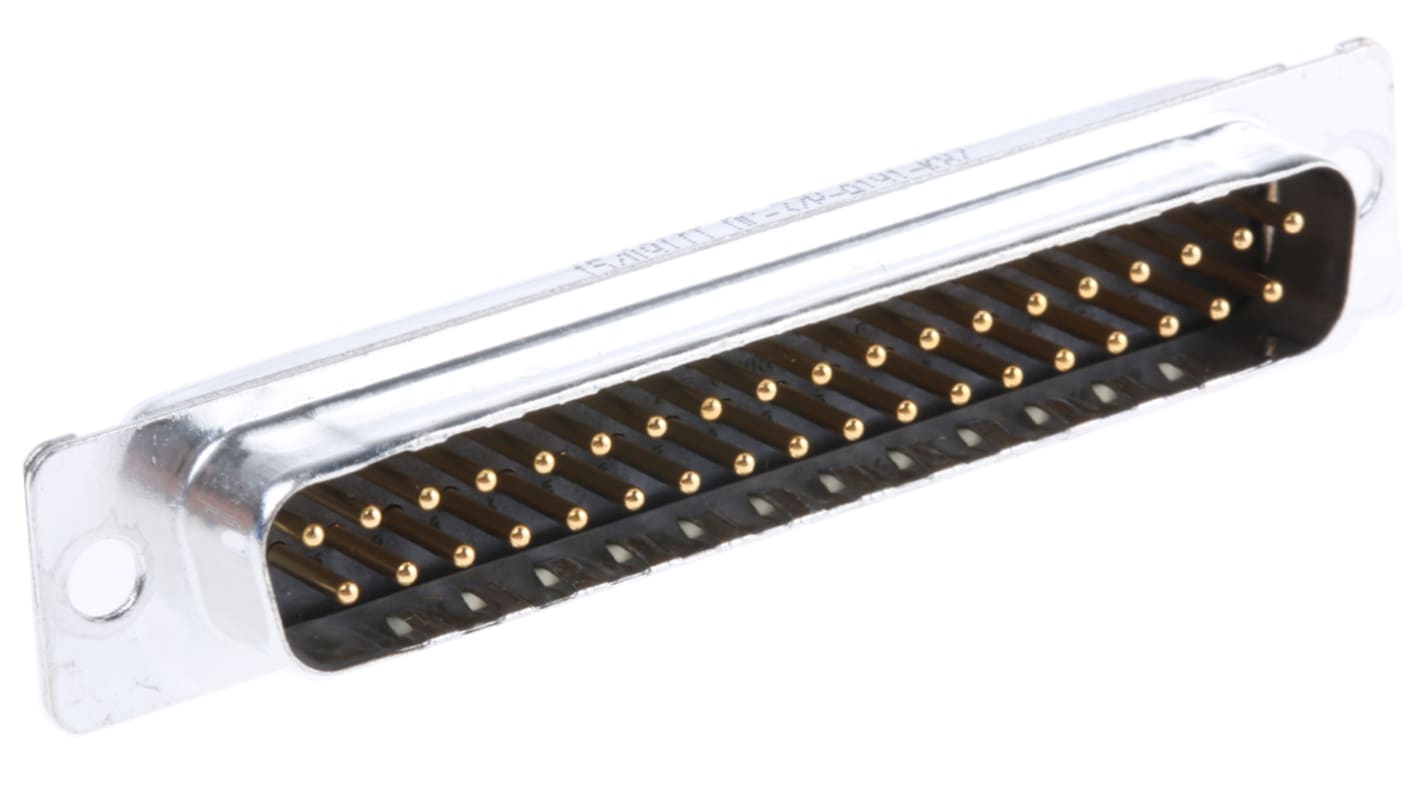

ITT Cannon ORIGINAL D 37 Way Panel Mount D-sub Connector Plug
- RS Stock No.:
- 171-1367
- Mfr. Part No.:
- 121073-2293 D
- Brand:
- ITT Cannon
Bulk discount available
Subtotal (1 pack of 42 units)*
£460.446
(exc. VAT)
£552.552
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 462 unit(s) shipping from 02 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
42 - 42 | £10.963 | £460.45 |
84 + | £9.319 | £391.40 |
*price indicative
- RS Stock No.:
- 171-1367
- Mfr. Part No.:
- 121073-2293 D
- Brand:
- ITT Cannon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ITT Cannon | |
Number of Contacts | 37 | |
Gender | Male | |
Body Orientation | Straight | |
Mounting Type | Panel Mount | |
D Connector Type | Standard D-Sub | |
D-Sub Shell Size | C | |
Termination Method | Solder | |
Current Rating | 5.0A | |
Housing Material | Steel | |
Length | 69.32mm | |
Width | 12.55mm | |
Depth | 17.56mm | |
Contact Plating | Gold over Nickel | |
Contact Material | Copper Alloy | |
Series | ORIGINAL D | |
Dimensions | 69.32 x 12.55 x 17.56mm | |
Minimum Operating Temperature | -55.0°C | |
Maximum Operating Temperature | +125°C | |
Select all | ||
---|---|---|
Brand ITT Cannon | ||
Number of Contacts 37 | ||
Gender Male | ||
Body Orientation Straight | ||
Mounting Type Panel Mount | ||
D Connector Type Standard D-Sub | ||
D-Sub Shell Size C | ||
Termination Method Solder | ||
Current Rating 5.0A | ||
Housing Material Steel | ||
Length 69.32mm | ||
Width 12.55mm | ||
Depth 17.56mm | ||
Contact Plating Gold over Nickel | ||
Contact Material Copper Alloy | ||
Series ORIGINAL D | ||
Dimensions 69.32 x 12.55 x 17.56mm | ||
Minimum Operating Temperature -55.0°C | ||
Maximum Operating Temperature +125°C | ||
Original D Connectors
Compatible with MIL 24308 connectors
High reliability and military performance
Low contact resistance
Monobloc moisture resistant
High temperature withstand insulator
Cable/panel mount versions illustrated
Original D also available in straight and 90° PCB versions
For suitable hole cutters see stock no. 477-8690
High reliability and military performance
Low contact resistance
Monobloc moisture resistant
High temperature withstand insulator
Cable/panel mount versions illustrated
Original D also available in straight and 90° PCB versions
For suitable hole cutters see stock no. 477-8690
ITT D Type Connectors
Suitable for military, industrial or commercial applications and computer interfacing etc.
