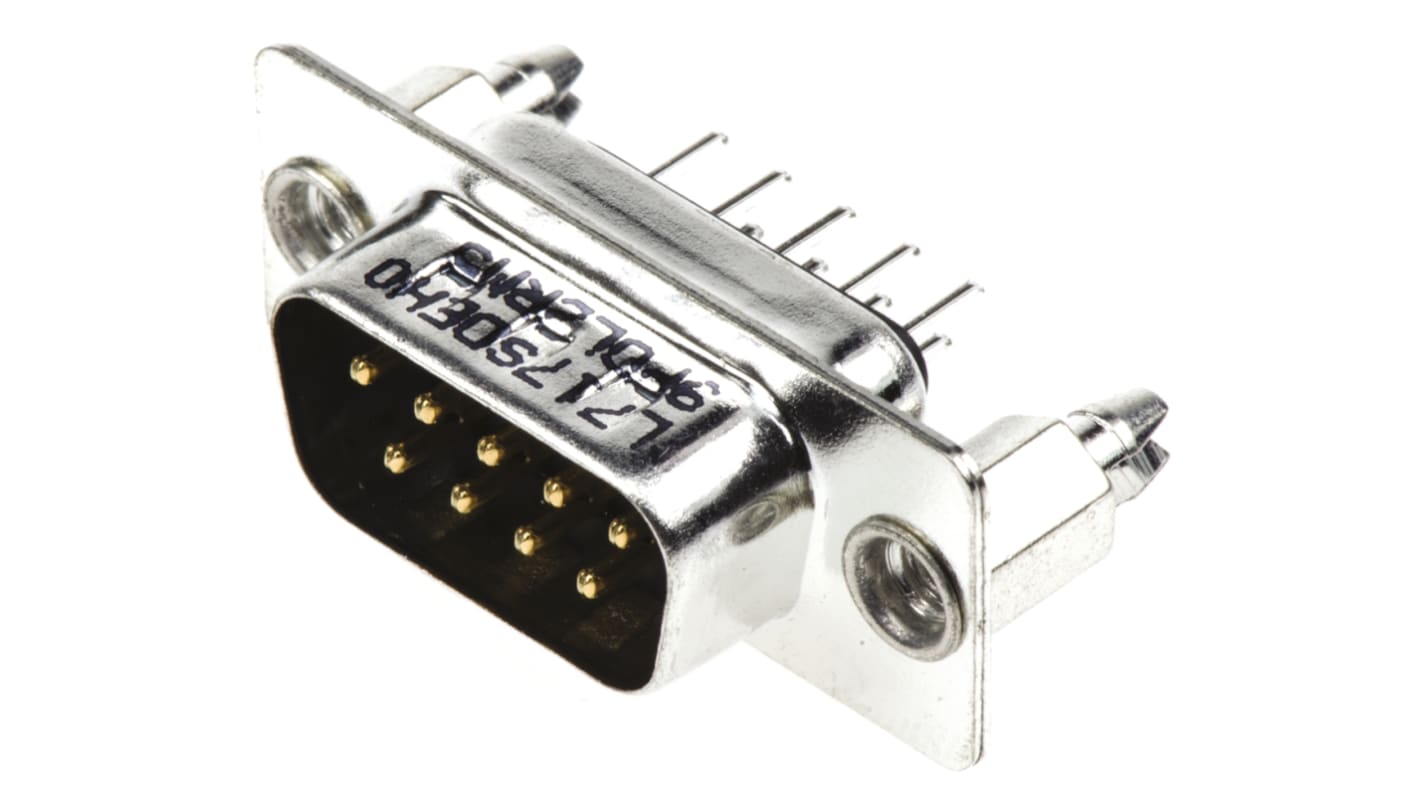

Amphenol Communications Solutions L717SD 9 Way Panel Mount D-sub Connector Plug, 2.74mm Pitch, with 4-40 UNC, Threaded
- RS Stock No.:
- 162-0545
- Mfr. Part No.:
- L717SDEH09P OL2 RM5
- Brand:
- Amphenol Communications Solutions
Subtotal (1 bag of 90 units)*
£92.70
(exc. VAT)
£111.60
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 540 unit(s) ready to ship
- Plus 540 unit(s) shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 90 + | £1.03 | £92.70 |
*price indicative
- RS Stock No.:
- 162-0545
- Mfr. Part No.:
- L717SDEH09P OL2 RM5
- Brand:
- Amphenol Communications Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Communications Solutions | |
| Number of Contacts | 9 | |
| Gender | Male | |
| Body Orientation | Straight | |
| Mounting Type | Panel Mount | |
| Pitch | 2.74mm | |
| Mounting Hardware | 4-40 UNC, Threaded Insert | |
| Termination Method | Solder | |
| Current Rating | 5.0A | |
| Housing Material | Thermoplastic | |
| Voltage Rating | 250.0 V | |
| Length | 30.84mm | |
| Width | 12.1mm | |
| Depth | 12.55mm | |
| Dimensions | 30.84 x 12.1 x 12.55mm | |
| Contact Material | Brass | |
| Contact Plating | Gold | |
| Series | L717SD | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -55.0°C | |
Select all | ||
|---|---|---|
Brand Amphenol Communications Solutions | ||
Number of Contacts 9 | ||
Gender Male | ||
Body Orientation Straight | ||
Mounting Type Panel Mount | ||
Pitch 2.74mm | ||
Mounting Hardware 4-40 UNC, Threaded Insert | ||
Termination Method Solder | ||
Current Rating 5.0A | ||
Housing Material Thermoplastic | ||
Voltage Rating 250.0 V | ||
Length 30.84mm | ||
Width 12.1mm | ||
Depth 12.55mm | ||
Dimensions 30.84 x 12.1 x 12.55mm | ||
Contact Material Brass | ||
Contact Plating Gold | ||
Series L717SD | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55.0°C | ||
- COO (Country of Origin):
- FR
Straight D-sub connectors for fixing onto printed circuits with harpoons
Straight D-sub connectors for printed circuits.
Mounting system using cylindrical harpoons with threaded spacers, also used as earthing point for cards of 1.6 → 3.2 mm thickness.
Better hold on the printed circuit; can be used with cards of varying thicknesses (harpoon does not come through at the back).
Tin-coated metal enclosures (with earth blades on male connectors).
Rolled cut-out contacts, with selective gold plating.
Flush rivet nut 4-40.
Pitch between rows: 2.84 mm.
Mounting system using cylindrical harpoons with threaded spacers, also used as earthing point for cards of 1.6 → 3.2 mm thickness.
Better hold on the printed circuit; can be used with cards of varying thicknesses (harpoon does not come through at the back).
Tin-coated metal enclosures (with earth blades on male connectors).
Rolled cut-out contacts, with selective gold plating.
Flush rivet nut 4-40.
Pitch between rows: 2.84 mm.
Value-Added D Type Connectors
Solder bucket connection
Suitable for military, industrial or commercial applications and computer interfacing etc.
For IDC D types, see the 'Speedbloc' range
Suitable for military, industrial or commercial applications and computer interfacing etc.
For IDC D types, see the 'Speedbloc' range
