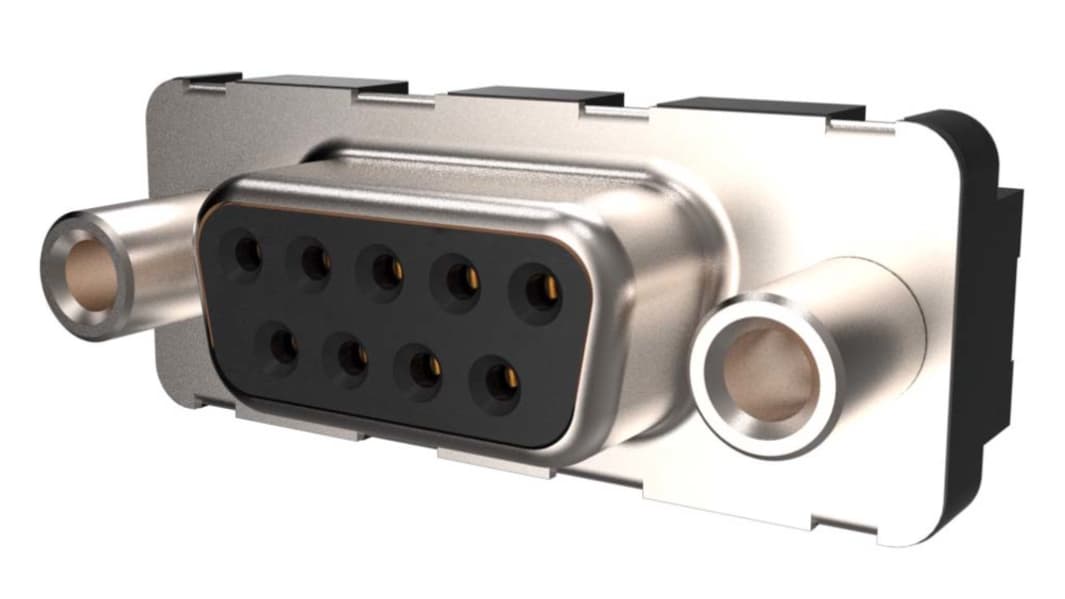

Amphenol Communications Solutions 9 Way Right Angle Plug-In Mount D-sub Connector Socket, 2.74mm Pitch, with Screw
- RS Stock No.:
- 137-2693
- Mfr. Part No.:
- D09S33E6GV00LF
- Brand:
- Amphenol Communications Solutions
Subtotal (1 unit)*
£1.85
(exc. VAT)
£2.22
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1.85 |
*price indicative
- RS Stock No.:
- 137-2693
- Mfr. Part No.:
- D09S33E6GV00LF
- Brand:
- Amphenol Communications Solutions
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol Communications Solutions | |
| Number of Contacts | 9 | |
| Gender | Female | |
| Body Orientation | Right Angle | |
| Mounting Type | Plug-In Mount | |
| Pitch | 2.74mm | |
| D Connector Type | Standard D-Sub | |
| D-Sub Shell Size | E | |
| Termination Method | Solder | |
| Mounting Hardware | Screw | |
| Mixed Contact Layout | 9W2 | |
| Current Rating | 5.0A | |
| Housing Material | PBT | |
| Voltage Rating | 300.0 V | |
| Length | 30.81mm | |
| Width | 12.58mm | |
| Depth | 18.77mm | |
| Contact Material | Phosphor Bronze | |
| Dimensions | 30.81 x 12.58 x 18.77mm | |
| Contact Plating | Gold over Nickel | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -55.0°C | |
Select all | ||
|---|---|---|
Brand Amphenol Communications Solutions | ||
Number of Contacts 9 | ||
Gender Female | ||
Body Orientation Right Angle | ||
Mounting Type Plug-In Mount | ||
Pitch 2.74mm | ||
D Connector Type Standard D-Sub | ||
D-Sub Shell Size E | ||
Termination Method Solder | ||
Mounting Hardware Screw | ||
Mixed Contact Layout 9W2 | ||
Current Rating 5.0A | ||
Housing Material PBT | ||
Voltage Rating 300.0 V | ||
Length 30.81mm | ||
Width 12.58mm | ||
Depth 18.77mm | ||
Contact Material Phosphor Bronze | ||
Dimensions 30.81 x 12.58 x 18.77mm | ||
Contact Plating Gold over Nickel | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55.0°C | ||
