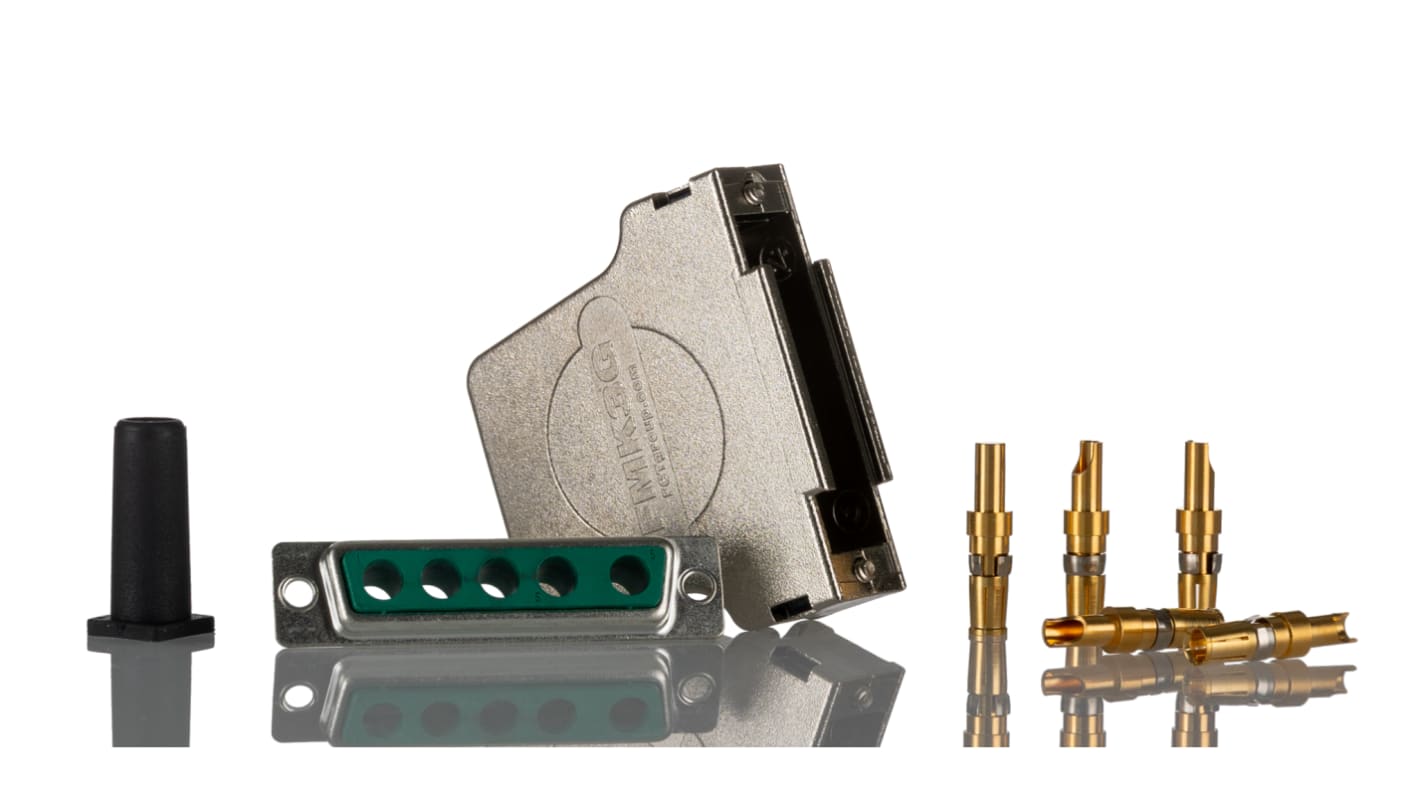

FCT from Molex FMK 5 Way Cable Mount D-sub Connector Socket
- RS Stock No.:
- 123-7421
- Mfr. Part No.:
- FMK3G-5W5SA-5938 / 1731140090
- Brand:
- FCT from Molex
Bulk discount available
Subtotal (1 unit)*
£26.73
(exc. VAT)
£32.08
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 108 unit(s) ready to ship
- Plus 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £26.73 |
| 25 - 74 | £23.87 |
| 75 - 199 | £22.26 |
| 200 + | £19.64 |
*price indicative
- RS Stock No.:
- 123-7421
- Mfr. Part No.:
- FMK3G-5W5SA-5938 / 1731140090
- Brand:
- FCT from Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | FCT from Molex | |
| Number of Contacts | 5 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Cable Mount | |
| D Connector Type | Mixed Contact D-Sub | |
| D-Sub Shell Size | B | |
| Termination Method | Solder | |
| Mixed Contact Layout | 5W5 | |
| Current Rating | 20.0A | |
| Housing Material | Die Cast Zinc | |
| Voltage Rating | 1 kV ac | |
| Contact Material | Copper Alloy | |
| Contact Plating | Au Over Sn | |
| Series | FMK | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | '+210°C | |
Select all | ||
|---|---|---|
Brand FCT from Molex | ||
Number of Contacts 5 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Cable Mount | ||
D Connector Type Mixed Contact D-Sub | ||
D-Sub Shell Size B | ||
Termination Method Solder | ||
Mixed Contact Layout 5W5 | ||
Current Rating 20.0A | ||
Housing Material Die Cast Zinc | ||
Voltage Rating 1 kV ac | ||
Contact Material Copper Alloy | ||
Contact Plating Au Over Sn | ||
Series FMK | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature '+210°C | ||
- COO (Country of Origin):
- DE
FCT from Molex FMK Series D-sub Connector, 20A Current Rating, 5 Contacts - FMK3G-5W5SA-5938 / 1731140090
This D-sub connector is designed for high reliability with a voltage rating of 1000 V AC and a temperature range of -55 °C to +210 °C. It features a copper alloy construction with 0.8 μm gold over nickel plating for excellent conductivity and durability.
Features & Benefits
• High current rating of 20.0A for demanding applications
• Rated for 1000V AC for safe operation
• Solder termination for secure connections
• Durable die-cast zinc construction
• Versatile contact layout for various configurations
• Suitable for high-temperature environments up to 210°C
• Rated for 1000V AC for safe operation
• Solder termination for secure connections
• Durable die-cast zinc construction
• Versatile contact layout for various configurations
• Suitable for high-temperature environments up to 210°C
Applications
• Cable connections in automation systems
• Electrical equipment in harsh environments
• Complex circuitry with mixed contact configurations
• High current performance applications
• Telecommunications and mechanical assemblies
• Electrical equipment in harsh environments
• Complex circuitry with mixed contact configurations
• High current performance applications
• Telecommunications and mechanical assemblies
Is this connector UL recognised?
Yes, it is UL recognised under file number 168813.
