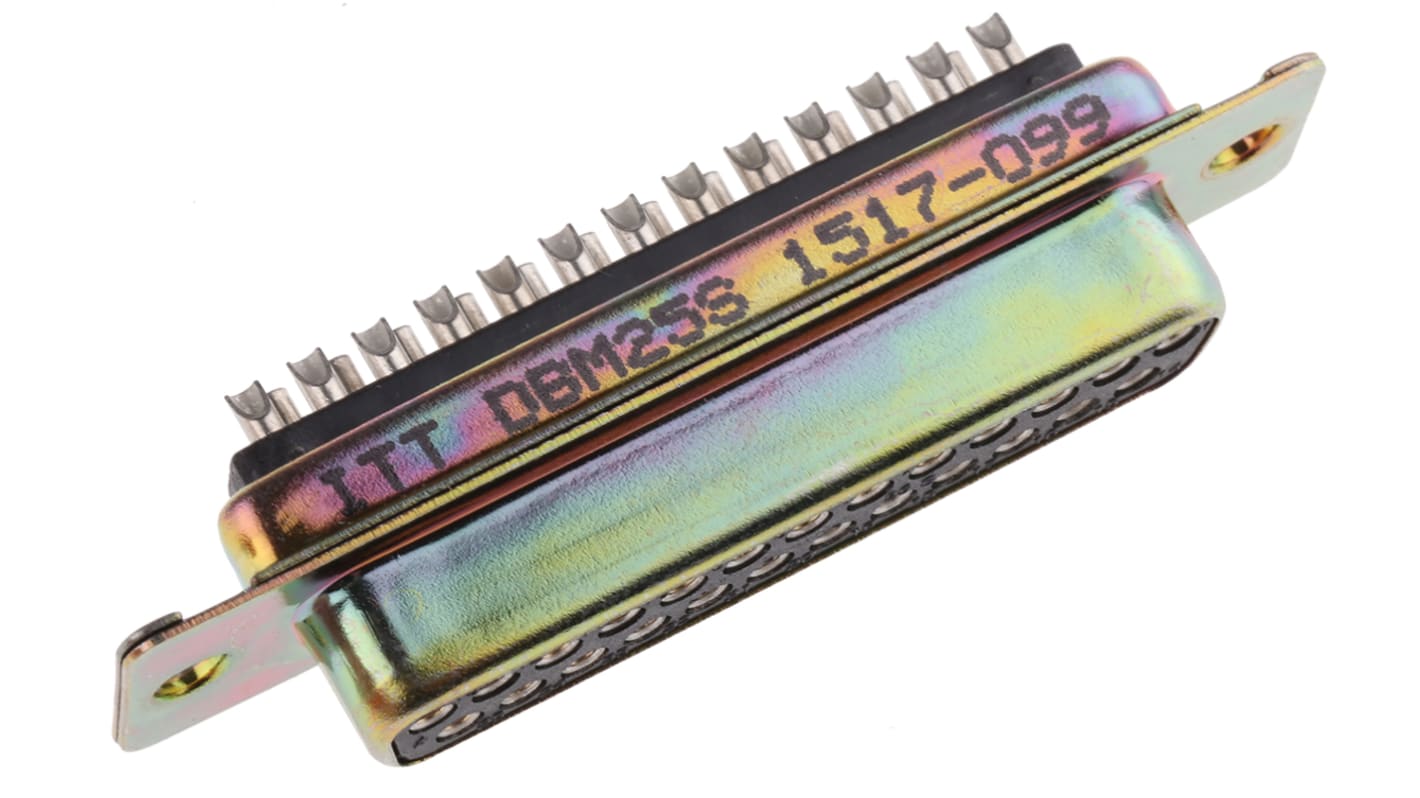

ITT Cannon D*M 25 Way Panel Mount D-sub Connector Socket, 2.8mm Pitch
- RS Stock No.:
- 446-282
- Mfr. Part No.:
- 053513-0023
- Brand:
- ITT Cannon
Bulk discount available
Subtotal (1 unit)*
£17.12
(exc. VAT)
£20.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 165 unit(s) ready to ship
- Plus 23 unit(s) ready to ship from another location
- Plus 520 unit(s) shipping from 18 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 19 | £17.12 |
| 20 - 39 | £14.60 |
| 40 + | £13.80 |
*price indicative
- RS Stock No.:
- 446-282
- Mfr. Part No.:
- 053513-0023
- Brand:
- ITT Cannon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ITT Cannon | |
| Number of Contacts | 25 | |
| Gender | Female | |
| Body Orientation | Straight | |
| Mounting Type | Panel Mount | |
| Pitch | 2.8mm | |
| D Connector Type | Standard D-Sub | |
| D-Sub Shell Size | B | |
| Termination Method | Solder | |
| Current Rating | 7.5A | |
| Housing Material | Steel | |
| Length | 66.93mm | |
| Width | 12.55mm | |
| Depth | 16.85mm | |
| Series | D*M | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Dimensions | 66.93 x 12.55 x 16.85mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +125°C | |
| Select all | ||
|---|---|---|
Brand ITT Cannon | ||
Number of Contacts 25 | ||
Gender Female | ||
Body Orientation Straight | ||
Mounting Type Panel Mount | ||
Pitch 2.8mm | ||
D Connector Type Standard D-Sub | ||
D-Sub Shell Size B | ||
Termination Method Solder | ||
Current Rating 7.5A | ||
Housing Material Steel | ||
Length 66.93mm | ||
Width 12.55mm | ||
Depth 16.85mm | ||
Series D*M | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
Dimensions 66.93 x 12.55 x 16.85mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +125°C | ||
Non Compliant
D*M Connectors
Compatible with MIL 24308 connectors
High reliability and military performance
Low contact resistance
Monobloc moisture resistant
High temperature withstand insulator
Cable/panel mount versions illustrated
Original D also available in straight and 90° PCB versions
For suitable hole cutters see stock no. 477-8690
High reliability and military performance
Low contact resistance
Monobloc moisture resistant
High temperature withstand insulator
Cable/panel mount versions illustrated
Original D also available in straight and 90° PCB versions
For suitable hole cutters see stock no. 477-8690
ITT D Type Connectors
Suitable for military, industrial or commercial applications and computer interfacing etc.
