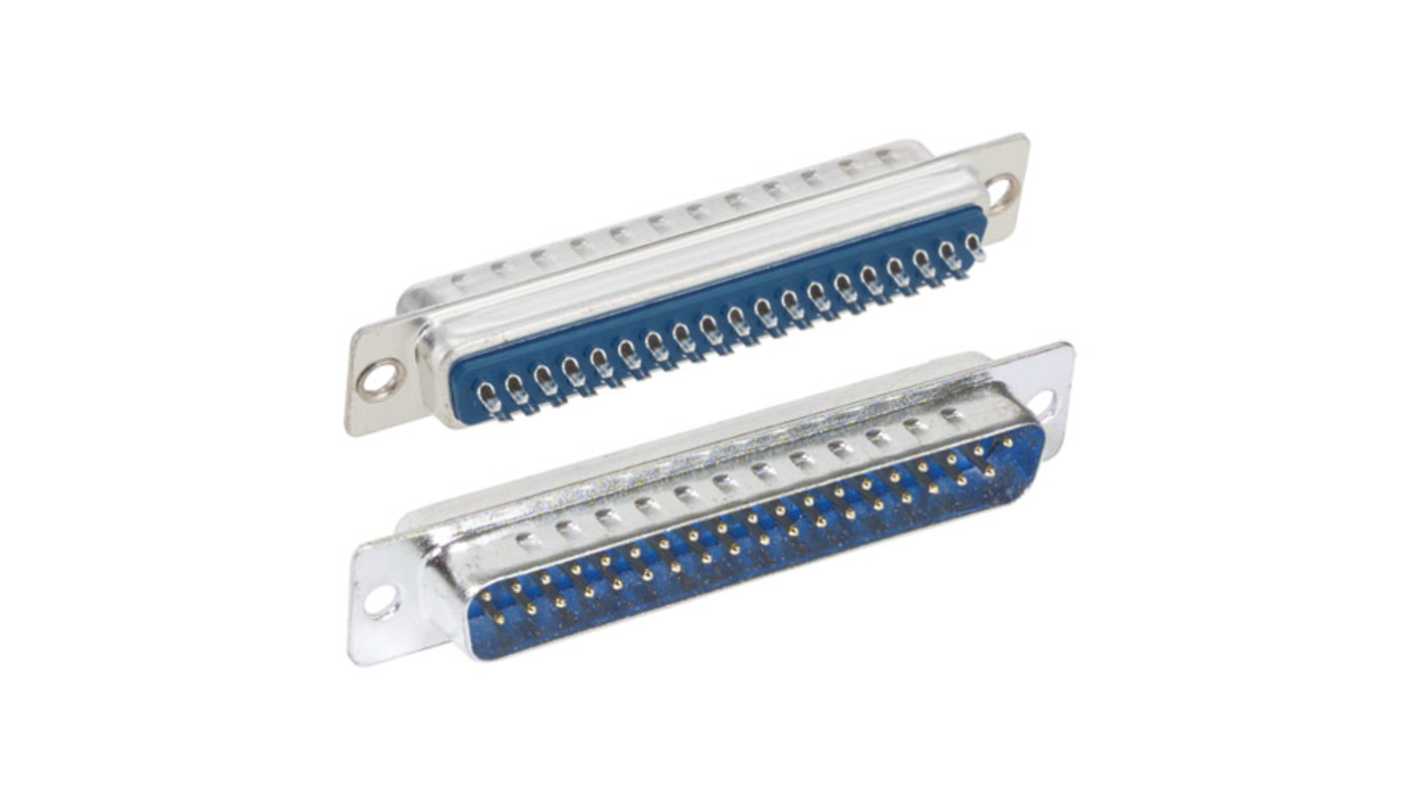

L-Com SD37 37 Way Straight 2.77 mm Pitch Screw D-Sub Connector, with Jack Screw Male
- RS Stock No.:
- 297-876
- Mfr. Part No.:
- SD37P
- Brand:
- L-Com
Subtotal (1 unit)*
£13.57
(exc. VAT)
£16.28
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 42 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £13.57 |
*price indicative
- RS Stock No.:
- 297-876
- Mfr. Part No.:
- SD37P
- Brand:
- L-Com
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | L-Com | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 37 | |
| Orientation | Straight | |
| Mount Type | Screw | |
| Connector Gender | Male | |
| Connector Type D | D-Subminiature | |
| D-Sub Shell Size | 4 | |
| Mounting Hardware | Jack Screw | |
| Housing Material | Steel | |
| Voltage | 1000Vrms | |
| Termination Type | Solder Cup | |
| Minimum Operating Temperature | -55°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | CE2011/65/EU, RoHS | |
| Contact Plating | Gold Flash | |
| Series | SD37 | |
| Contact Material | Copper Alloy | |
| Pitch | 2.77mm | |
| Select all | ||
|---|---|---|
Brand L-Com | ||
Product Type D-Sub Connector | ||
Number of Contacts 37 | ||
Orientation Straight | ||
Mount Type Screw | ||
Connector Gender Male | ||
Connector Type D D-Subminiature | ||
D-Sub Shell Size 4 | ||
Mounting Hardware Jack Screw | ||
Housing Material Steel | ||
Voltage 1000Vrms | ||
Termination Type Solder Cup | ||
Minimum Operating Temperature -55°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals CE2011/65/EU, RoHS | ||
Contact Plating Gold Flash | ||
Series SD37 | ||
Contact Material Copper Alloy | ||
Pitch 2.77mm | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CN
The L-Com D-Subminiature connector is expertly designed to meet stringent performance specifications while ensuring seamless connectivity in your applications. Crafted from high quality materials including a steel connector shell and thermoplastic insulator, this component provides durability and reliability even in rigorous environments. With nickel plating on the front shell and tin plating on the back shell, it offers superior resistance against corrosion, extending its lifespan significantly.
Gold flash plating provides enhanced electrical conductivity reducing signal degradation
Designed to comply with international safety standards which ensuring peace of mind
Versatile packaging options allow for tailored integration into your systems
Optimised for ease of installation and removal reducing downtime during operation
Temperature range caters to a wide variety of applications from indoor to outdoor use
