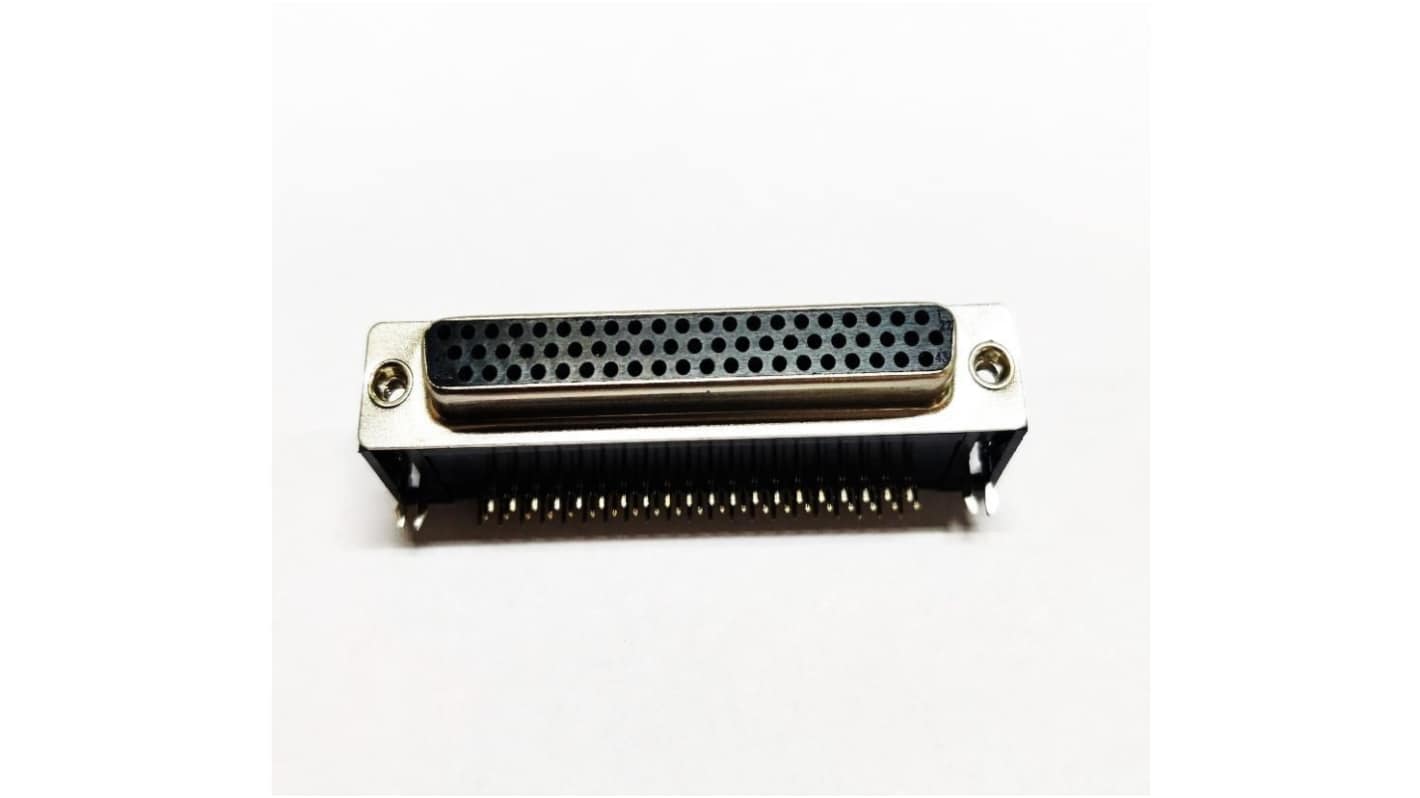

RS PRO 62 Way Right Angle Through Hole D-sub Connector Socket, 2.41mm Pitch
- RS Stock No.:
- 199-117
- Brand:
- RS PRO
Subtotal (1 bag of 1 unit)*
£1.78
(exc. VAT)
£2.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 120 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag |
---|---|
1 + | £1.78 |
*price indicative
- RS Stock No.:
- 199-117
- Brand:
- RS PRO
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Number of Contacts | 62 | |
Gender | Female | |
Body Orientation | Right Angle | |
Mounting Type | Through Hole | |
Pitch | 2.41mm | |
D Connector Type | Standard D-Sub | |
Termination Method | Solder | |
D-Sub Shell Size | D | |
Current Rating | 5A | |
Housing Material | Steel | |
Voltage Rating | 750 V | |
Contact Plating | Gold | |
Contact Material | Copper Alloy | |
Maximum Operating Temperature | +125°C | |
Minimum Operating Temperature | -55°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Number of Contacts 62 | ||
Gender Female | ||
Body Orientation Right Angle | ||
Mounting Type Through Hole | ||
Pitch 2.41mm | ||
D Connector Type Standard D-Sub | ||
Termination Method Solder | ||
D-Sub Shell Size D | ||
Current Rating 5A | ||
Housing Material Steel | ||
Voltage Rating 750 V | ||
Contact Plating Gold | ||
Contact Material Copper Alloy | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55°C | ||
